TECHNICAL SPECIFICATIONS
Charger model MXS 10
Model number 1046
Rated Voltage AC 220–240VAC, 50–60Hz
Charging voltage 14.4V, AGM 14.7V, RECOND 15.8V, SUPPLY 13.6V
Start voltage 2.0V
Charging current 10A max
Current, mains 1.0A rms (at full charging current)
Back current drain* <1Ah/month
Ripple** <4%
Ambient
temperature
-20°C to +50°C, output power is reduced
automatically at high temperatures
Charger type Eight step, fully automatic charging cycle
Battery types All types of 12V lead-acid batteries
(WET, MF, Ca/Ca, AGM and GEL)
Battery capacity 20―200Ah up to 300Ah for maintenance
dimensions 197 x 93 x 49mm (L x W x H)
Insulation class IP65
Weight 0.8kg
*) Back current drain is the current that drains the battery if the charger is not connected
to the mains. CTEK chargers has a very low back current.
**) The quality of the charging voltage and charging current is very important. A high
current ripple heats up the battery which has an aging effect on the positive electrode.
High voltage ripple could harm other equipment that is connected to the battery. CTEK
battery chargers produce very clean voltage and current with low ripple.

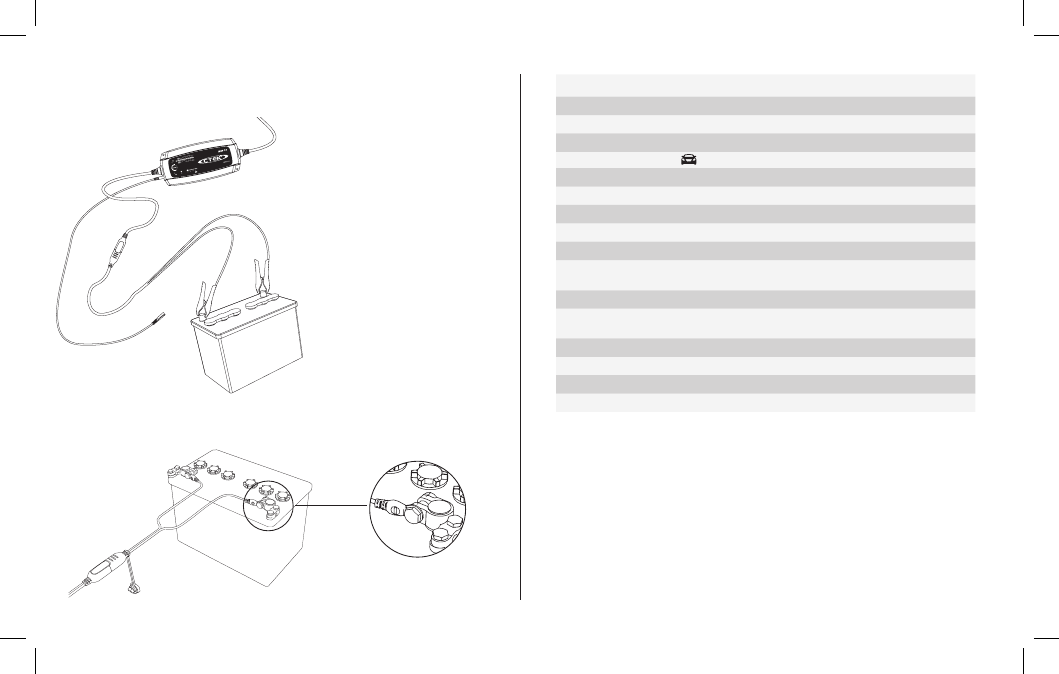

CONNECT THE CHARGER TO A BATTERY
Comfort
Connect
Comfort
Connect
INFO
If the battery clamps are incorrectly con-
nected, the reverse polarity protection
will ensure that the battery and charger
are not damaged.
For batteries mounted inside a vehicle
1. Connect the red clamp to the battery's
positive pole.
2. Connect the black clamp to the vehicle chas-
sis remote from the fuel pipe and the battery.
3. Connect the charger to the wall socket.
4. Disconnect the charger from the wall socket
before disconnecting the battery.
5. Disconnect the black clamp before the red
clamp.
Some vehicles may have positively
earthed batteries.
1. Connect the black clamp to the battery's
negative pole.
2. Connect the red clamp to the vehicle chassis
remote from the fuel pipe and the battery.
3. Connect the charger to the wall socket.
4. Disconnect the charger from the wall socket
before disconnecting the battery.
5. Disconnect the red clamp before the black
clamp.
