4.2 Your CDA-VGA31 1:3 High Resolution XGA DA

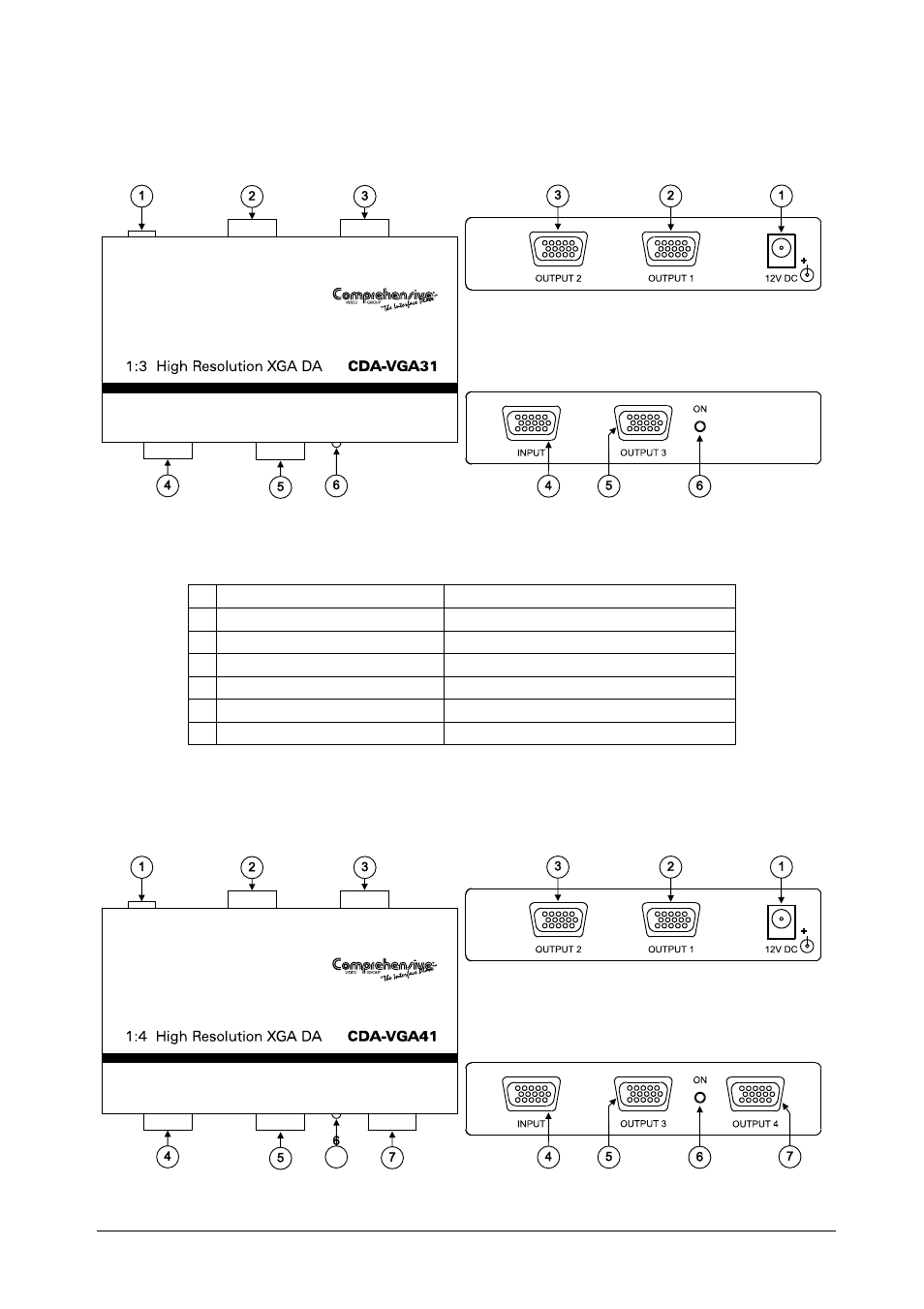

Figure 2 and Table 2 define the CDA-VGA31 1:3 High Resolution XGA DA:
Figure 2: CDA-VGA31 1:3 High Resolution XGA DA
Table 2: Features and Functions of the CDA-VGA31 1:3 High Resolution XGA DA
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 OUTPUT 1 HD15F Connector Connect to the XGA acceptor 1
3 OUTPUT 2 HD15F Connector Connect to the XGA acceptor 2
4 INPUT HD15F Connector Connect to the XGA source
5 OUTPUT 3 HD15F Connector Connect to the XGA acceptor 3
6 ON LED Illuminates when receiving power
4.3 Your CDA-VGA41 1:4 High Resolution XGA DA
Figure 3 and Table 3 define the CDA-VGA41 1:4 High Resolution XGA DA:
Figure 3: CDA-VGA41 1:4 High Resolution XGA DA
