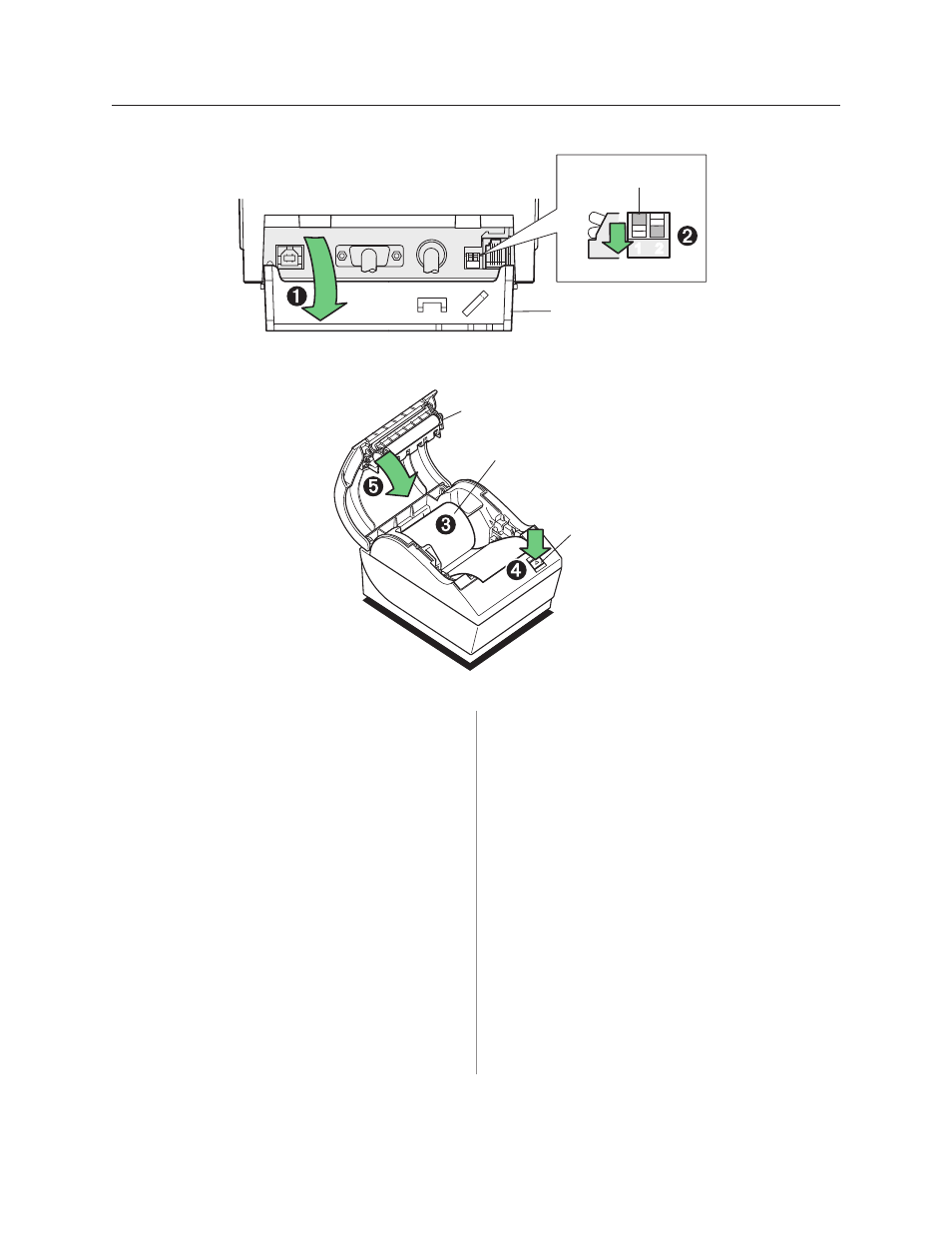

To enter the configuration mode:

Turn power off to printer

Open connector cover (1).

Set DIP switch 1 to the ON position (down) (2). DIP
switch 2 should be in the OFF position (up).

Make sure receipt paper (3) is loaded in the printer

before proceeding. (See page 11.) Make sure cover is
closed.

Apply power to printer and immediately press and hold

the paper feed button until the configuration printout
begins.
• The printer beeps, then prints the diagnostics form

and the configuration main menu.

• The printer pauses and waits for a main menu

selection to be made (see sample printout on the
next page; short clicks are used, except when
answering “yes” or validating selection).

To communicate with the printer, you will press the

paper feed button using either short or long clicks. Use
a long click for “yes” (more than one second) and a
short click for “no.” Follow the printed instructions to
make selections.

Continue through your menu selections until you are

asked, “Save New Parameters?” Select “Yes.”
a

Return DIP Switch 1 to the OFF position (up).

Reset the printer.

Open the receipt cover.

Press and hold the paper feed button while closing

the receipt cover.

• The diagnostic printout verifies your new settings.

��

��

��

� �

��
