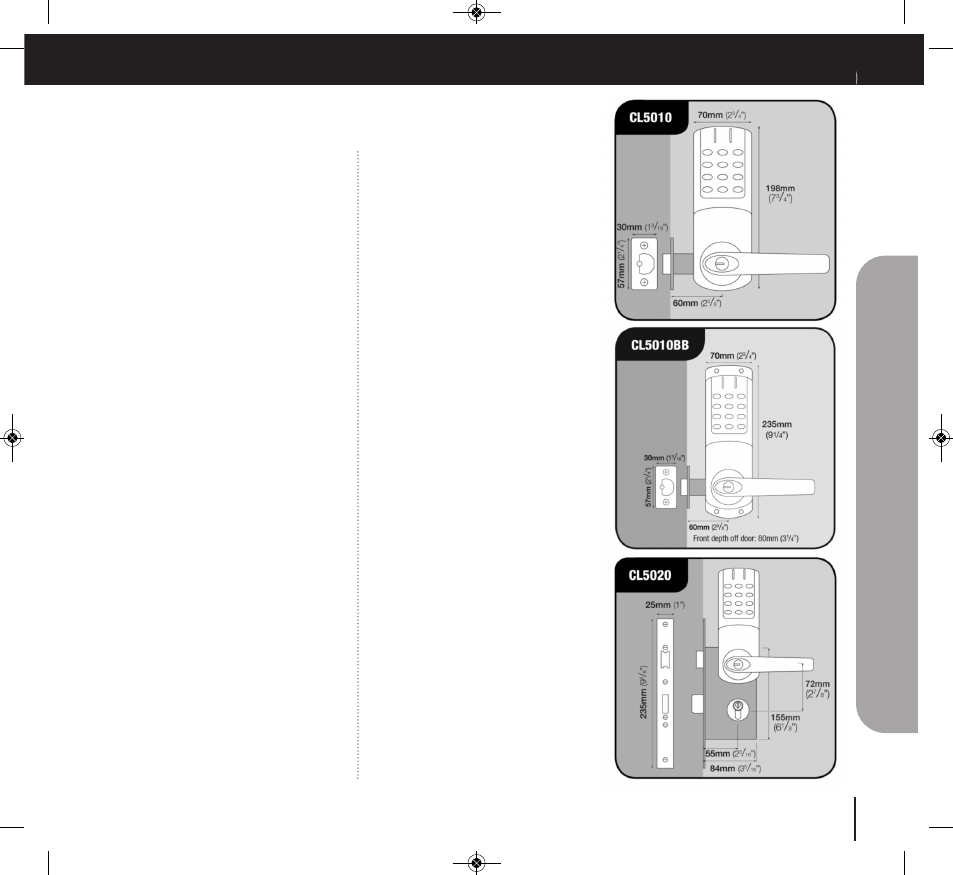

Dim en s io n s – Codelocks CL5020 Mortice Latch with Double Cylinder User Manual
Page 5

REM 1
is for connection to a reception desk
push button or a door intercom system.
Pressing the button will cause the Blue LED to
flash on the lock and release the lock for the
pre-set time.
REM 2
is for connection to the building alarm
system to release a door in an emergency.
This allows rooms, wards, offices to be easily
checked to ensure that no person is trapped or
overlooked during an emergency evacuation.
When activated REM 2 will maintain the
unlocked condition for 30 minutes,
the Red LED will flash and BEEP
during this time.
The lock will automatically lock again after 30
minutes. If necessary Program 11 can be used
to re-lock before the end of the 30 minutes.
REM 1
and REM 2 do not require additional
power. They are normally open contacts
requiring a momentary or maintained signal
to close.
FIRE KIT
A Fire Kit pack is available for the CL5010 and
CL5010AT, and when fitted, they can be
installed on 30 or 60 minute fire doors.
Tested in accordance with BS3N1634-1:2008
For more information about this pack please
contact Codelocks www.codelocks.co.uk
CL5020 ANTI-PANIC LOCK FUNCTION
Outside handle and key functions as
before. Lockcase key will double-throw
the deadbolt, retract the deadbolt and
retract the latchbolt without the code.
When deadbolt is thrown it denies access
by code. The anti-panic feature allows the
inside handle to simultaneously retract
the latchbolt and the deadbolt preventing
people being accidentally locked in.
CL5010, CL5010BB LATCH FUNCTION
Outside handle turns freely without
operating the latchbolt. When the code
is entered the Blue LED flashes and the
handle will retract the latchbolt. The
latch automatically locks the door
when closed. The key will open the
door without the code.
D
IM
EN
S
IO
N
S
5
