CNB HDS4848E - Manual (Page 21)

20

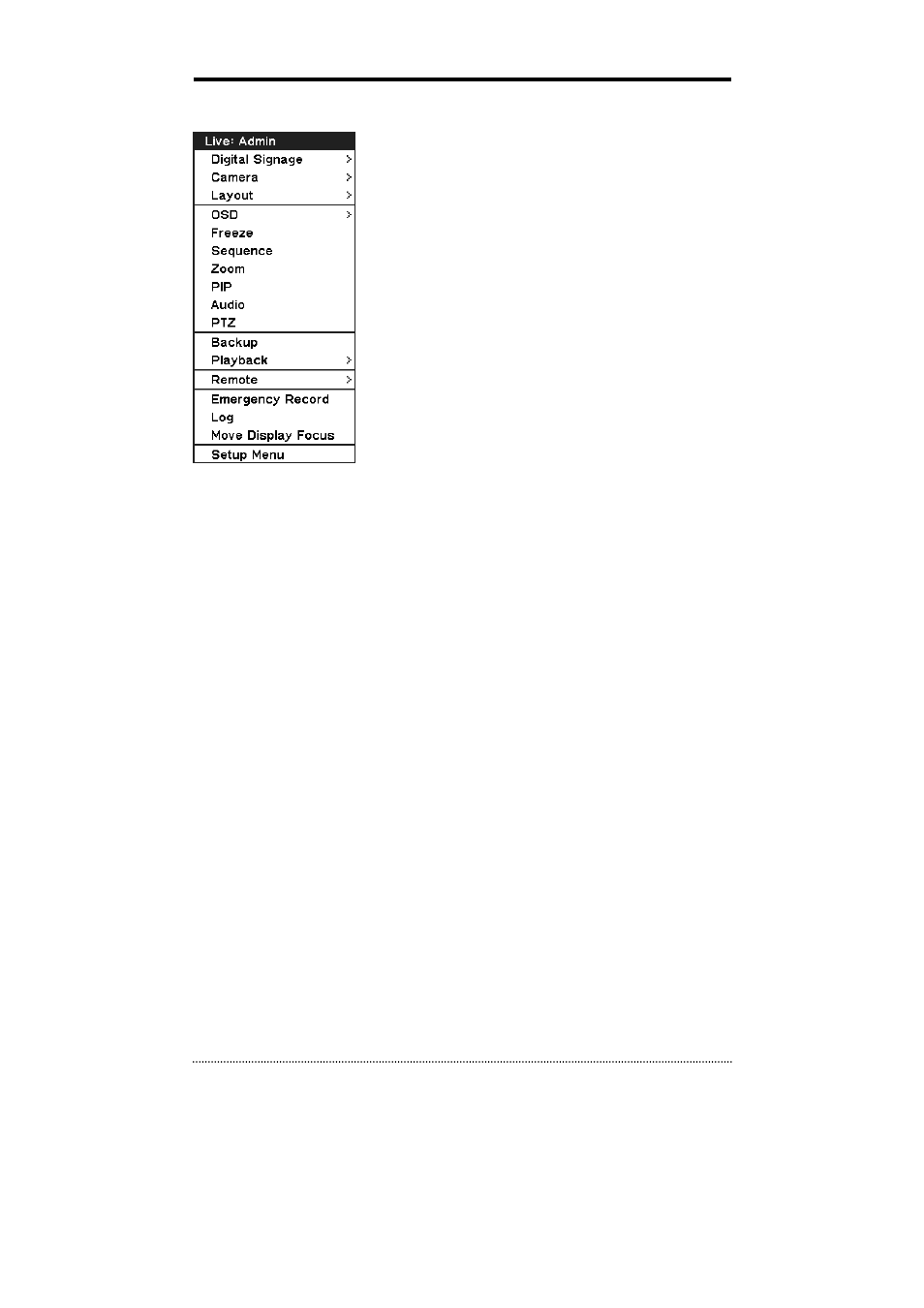

1-7. Contextual Menu
Additional Contextual Menu screen appears by pressing right button on the Mouse.
•
Digital Signage: Select Digital Signage output either on VGA or CVBS.
• Camera: Select camera no.
• Layout: Select display mode (8/16 ch. DVR Only)
• OSD: Select OSD display option
• Text-In Info.: On/Off Text-In OSD.
• Freeze: Pause current image display
• Sequence: Begin sequence display
• Zoom: Zoom in image (x2, x4, x8)
• PIP: Select PIP mode and camera
• Audio: Select Audio outs
• PTZ: Select PTZ options
• Backup: Select backup options
• Playback: Playback recorded data
• E. Record: Start Emergency Recording
• Log: Select System/Event log
• Move Display Focus: Move control focus (e.g. setup, OSD and etc) from one monitor to
another when using both CVBS and VGA at the same time.
•
Setup Menu: Enter Main setup menu
For more information on Contextual Menu please refer to 2. DVR Configuration.
