Network Weatherproof Camera Installation Manual
2 2 . . 3 3 . . H H a a r r d d w w a a r r e e D D e e s s i i g g n n a a t t i i o o n n
2 2 . . 3 3 . . 1 1 . . S S w w i i t t c c h h a a n n d d C C o o n n t t r r o o l l s s

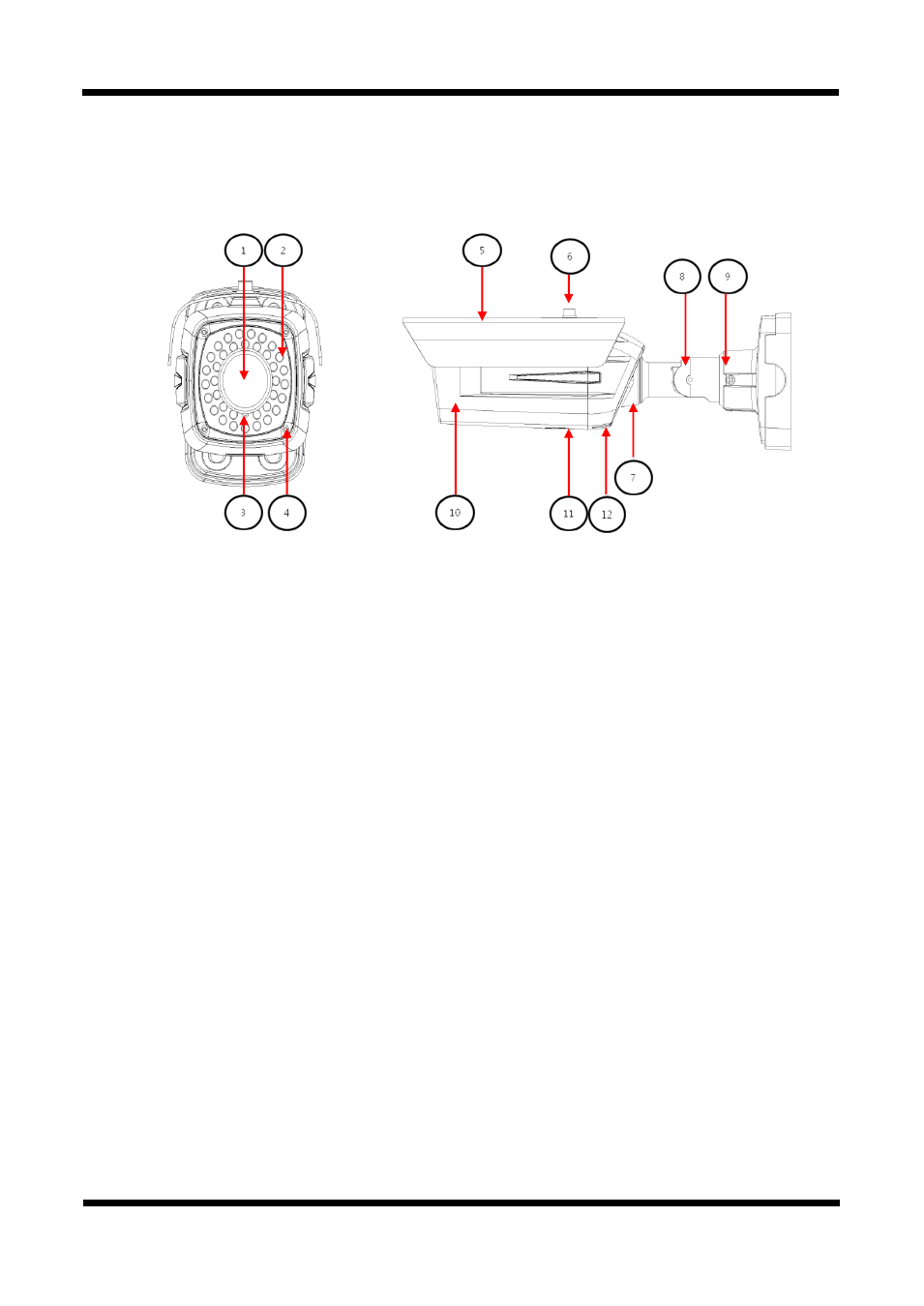

1. Motorize Lens : 3-9mm Motorize Lens
2. IR LED : IR Led light controlled by CDS Sensor.
3. CDS Sensor : senses the light intensity (low light level).
4. Casing Screws (front - 4EA) : attach the front and rear bodies together
5. Sunvisor : Shields off the direct sunlight to avoid overheating the camera module
6. Sunvisor Screws : fix the Sunvisor on the main body
7. Rotate adjusting Bolt: fixes the adjustment of the camera’s rotational angle.
8. Tilt adjusting Bolt: fixes the adjustment of the camera’s tilt angle.
9. Pan adjusting Bolt: fixes the adjustment of the camera’s pan angle.
10. FRONT BODY
11. Connecting Terminal: Please refer to 2.3.2. Connecting Terminal
12. REAR-BODY
