Nominal torque
200
Nm ft.lb
150
Minimal torque
2
Nm ft.lb
1.5
Coil resistance - 20°C
Ohms
12
Rated current DC
A
1.55
Rotor inertia
35.2.10-3
kg.m2 lb.ft 2
818.10-3
Weight
30
kg lb
66.15
Heat dissipation
W *
Continuously sustained with heat sink – H
750
Continuously sustained with heat sink and blower – HB
2000

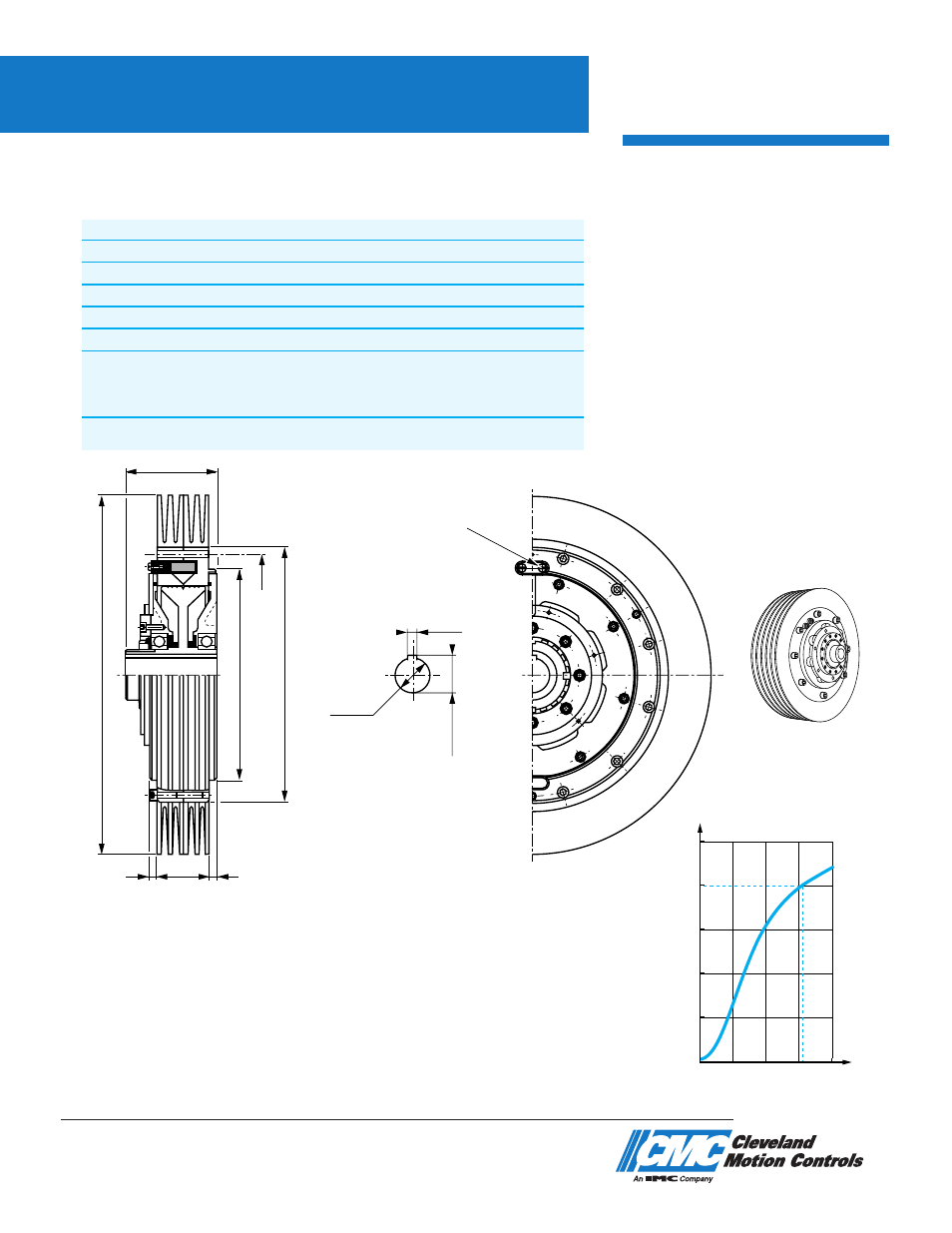

Specifications
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
;
;
;
;
;
;
;
;
;;;;;
;;;;;
;;;;;
;;
;;
;;
;;
;;;;;
;;;;;
;;;;;
;;;;
;;;;
;;;;
;;;;
56
9
9
Ø 230 h8
Ш 278
Ш 390
10 E9
Ø 38 H8
41,3 J13
99
* Heat dissipation is the mechanical power (P = cw) maximum allowable.
Application Notes
•Lubricated for life (other internal lubrication not required).
The shaft should be lubricated upon assembly, to prevent seizing.
•For use with Cleveland-Kidder® 2 Amp, 24 VDC power suppy (Model EMAG-PS2)
•The standard device is designed for horizontal shaft orientation,
and a minimal speed of 60 RPM. Maximum speed is 3000 RPM
(without exceeding the max. heat dissipation capability).
•For Engineering application, please contact our technical support.
•In normal use, the outside temperature of the device can increase up to 100°C,
without damage.
0
0,5
1
1,5
2
0
50
100
150
200
250
To
rque Nm
Current A
2 terminals
6 holes Ø 8,5 at 60°
on Ø 263
Cleveland-Kidder
®
ELECTROMAGNETIC
PARTICLE BRAKE
EMAG 150H
EMAG 150HB
7550 Hub Parkway
Cleveland, OH 44125-5794
Tel: 216-524-8800 or (800)-321-8072
Fax: 216-642-2100
www.CMCcontrols.com
INDUSTRIAL PRODUCTS
© 2003 Cleveland Motion Controls. All Rights Reserved. Litho USA 10/03 3M EMAG150-DS
•
Easy Electric Remote Control
•
Low Power Consumption
•
High Level of Torque Stability
•
Highest Torque Density
•
No Dust
•
Noiseless
•
Easy Installation
•
Maintenance-Free Bearing
