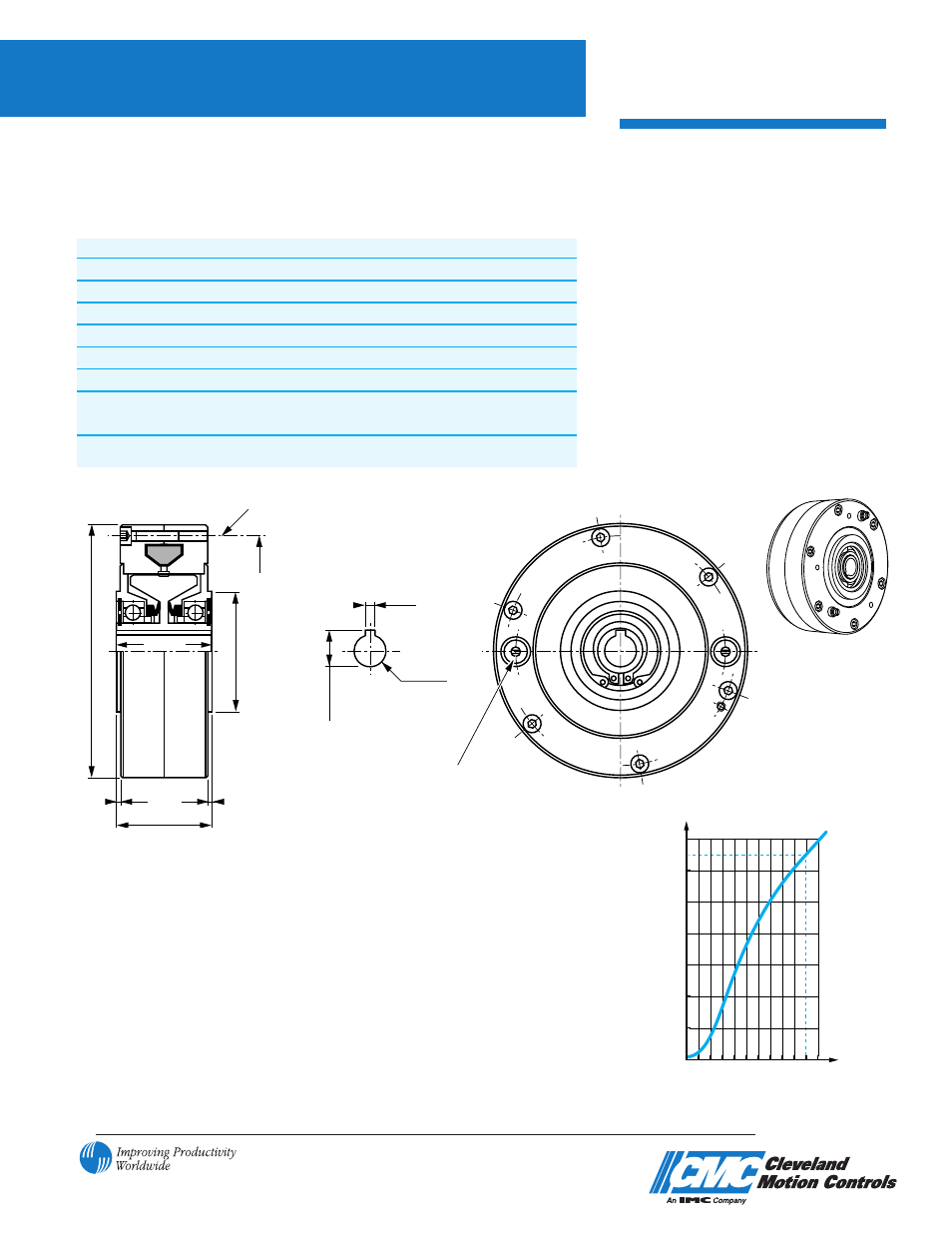

Cleveland Motion Controls Brake EMAG 50 User Manual
Cleveland-kidder, Emag 50, Electromagnetic particle brake

Nominal torque
65
Nm ft.lb
50
Minimal torque
0.63
Nm ft.lb
0.45
Coil resistance - 20°C
Ohms
20
Rated current DC
A
1
Rotor inertia
2.10-3
kg.m2 lb.ft 2
46 10-3
Weight
7.2
kg lb
15.9
Heat dissipation
W *
Continuously sustained
125
0
0,2
0,4
0,6
0,8
1
0
10
20
30
40
50
60
70
Specifications
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;
;;;;;;
;;;;;;
;;;;;;
;;;;;;
;;;;;;
;;;;;;
;;;;;;
;;;;;;
;;;;;;
;;;;;;
;;;;;;
;;;;;;
;;;;;;
;;;;
;;;;
;;;;
;;;;
;
;
;;;;
;;;;
;;;;;
;;;;;
;;
;;
;;;;
;;;;
60
2,5
Ø 157,25
22,8 J13
6 E9
Ø 20 H7
Ø 75 h8
60
± 0,1
2,5
* Heat dissipation is the mechanical power (P = cw) maximum allowable.
Application Notes
•Lubricated for life (other internal lubrication not required).
The shaft should be lubricated upon assembly, to prevent seizing.
•For use with Cleveland-Kidder® 2 Amp, 24 VDC power suppy (Model EMAG-PS2)
•The standard device is designed for horizontal shaft orientation,
and a minimal speed of 60 RPM. Maximum speed is 3000 RPM
(without exceeding the max. heat dissipation capability).
•For Engineering application, please contact our technical support.
•In normal use, the outside temperature of the device can increase up to 100°C,
without damage.
Max. deepness 15
6 holes M6 at 60°
on Ø 144
2 terminals
To
rque Nm
Current A
Cleveland-Kidder
®
ELECTROMAGNETIC
PARTICLE BRAKE
EMAG 50
•
Easy Electric Remote Control
•
Low Power Consumption
•
High Level of Torque Stability
•
Highest Torque Density
•
No Dust
•
Noiseless
•
Easy Installation
•
Maintenance-Free Bearing
