2.2.5 M OUNTING D IMENSIONS
J
O
F
45 DEG
H
P
C
M (BOLT DIA)
N (B.C.D)
E (MAX)
V
R (MAX) C
I
A A
J
K K
L
L
B (MAX)
D
F
H
C
A
V
F
W
W/2
J
T
U
Q
Q/2
S
Y (BOLT DIA)
A Z
K
L
K
J
L
Mounting dimensions in Inches: CLTEC and CLTSC Mounting dimensions in Millimeters: CLTECM and CLTSCM
Designator: 1T 2T
A Per Adapter Per Adapter
B 0.55 0.60
C 2.50 2.75
D 1/2-13 5/8-11
E 2.375 2.625
F 2.44 2.85
G - -
H 2.10 2.23
I 2.75 3.00
J 1.10 1.30
K 2.125 2.312
L 3.10 3.665
M 3/8 1/2
N 3.25 3.50
O 0.50 0.62
P 4.00 4.50
Q 4.00 5.00
R 1.74 1.87
S 5.38 6.12
T 0.58 0.68
U 1.63 1.94
V 1.02 1.02
W 1.75 1.88
X - -
Y 1/2 1/2
Z 1.50 1.70
Designator: 1T 2T
A Per Adapter Per Adapter
B 14.0 15.2
C 63.5 69.9
D M12-1.75 M16-2
E 60.32 66.67
F 62.0 72.4
G - -
H 53.3 56.6
I 69.9 76.2
J 27.9 33.0
K 54.0 58.7
L 78.7 93.1
M M-10 M-12
N 82.55 88.90
O 12.7 15.7
P 101.6 114.3
Q 101.6 127.0
R 44.2 47.5
S 136.6 155.4
T 14.7 17.3
U 41.3 49.2
V 25.9 25.9
W 44.5 47.7
X - -
Y M-12 M12
Z 38.1 43.2
*Maximum shaft diameter 30.00 mm

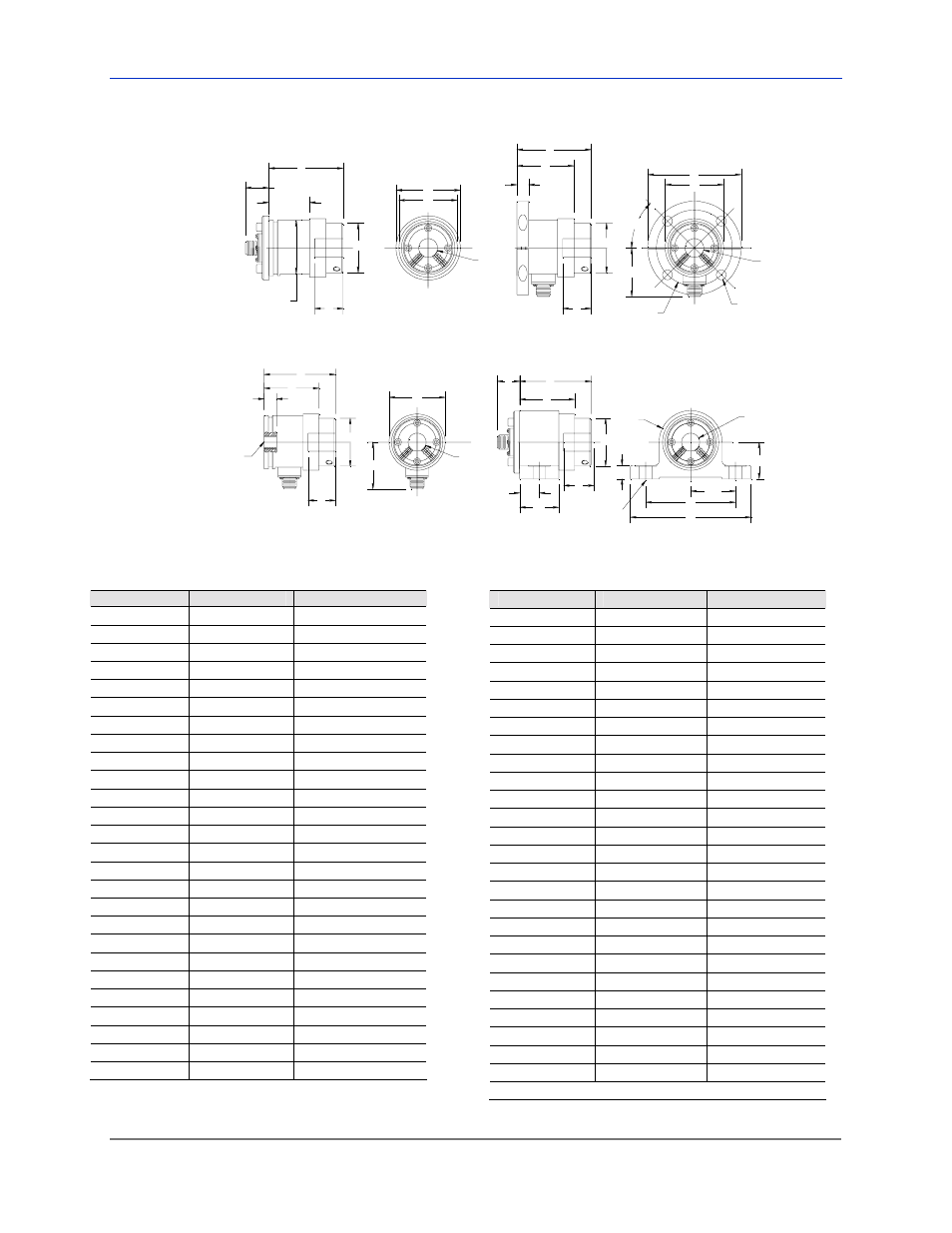

Figure 3 – Mounting Dimensions
TYPE CLTEC and CLTECM Cartridge
with BR Mounting Kit TYPE CLTSC and CLTSCM Cartridge
with FL Mounting Kit
Type CLTSC and CLTSCM Cartridge Type CLTEC and CLTECM Cartridge
with PB Mounting Kit
