Page 6

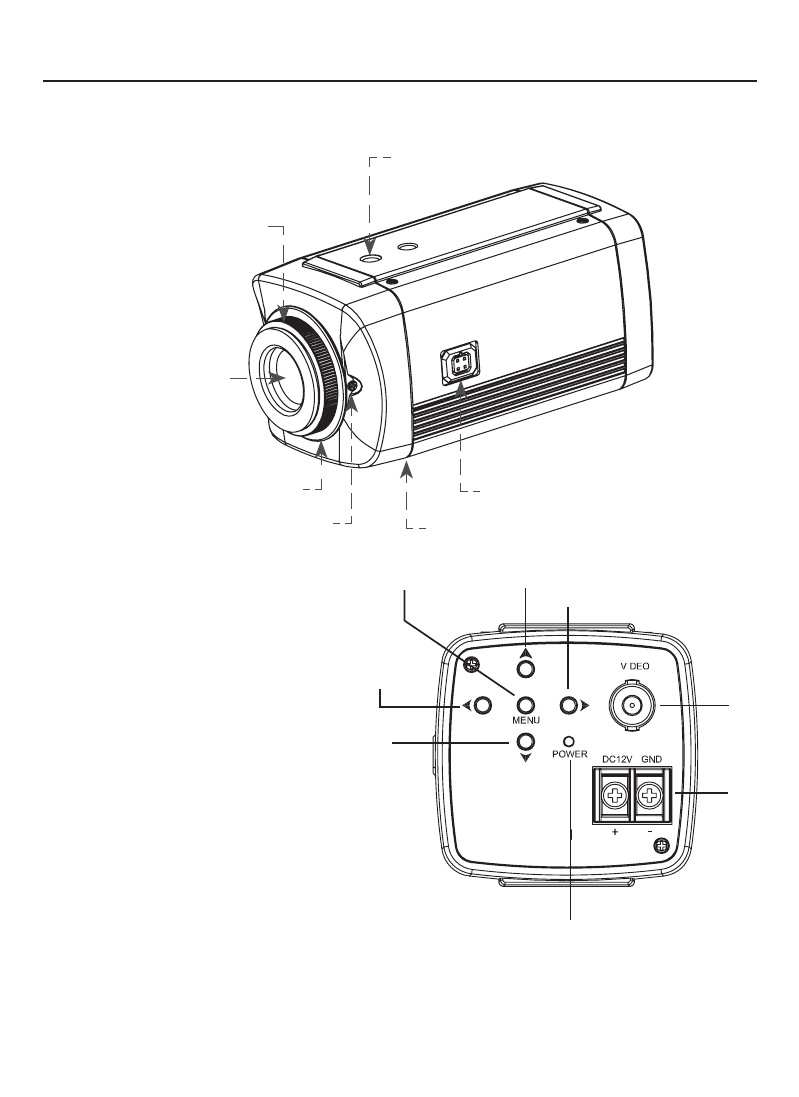

4. NAME AND FUNCTION

• FRONT

• BACK

①

. MENU BUTTON

②

. UP BUTTON

③

. DOWON BUTTON

④

. LEFT BUTTON

⑤

. RIGHT BUTTON

⑥

. POWER LED

(The LED turns on when power is supplied)

⑦

. VIDEO OUT JACK

(Used to connect an external video monitor in jack)

⑧

. POWER TERMINAL

(User to connect an DC12V power source)

(Options : AC 24V/DC12V)

TRIPOD MOUNTING HOLE(1/4"-20 UNC)

C-MOUNT ADAPTOR RING

MOUNT COVER

CS-MOUNT ADAPTOR RING

FIXING SCREW(2EA)

AUTO IRIS JACK

TRIPOD MOUNTING HOLE(1/4"-20 UNC)

①

②

③

④

⑤

⑥

⑦

⑧

Class 2 Only
