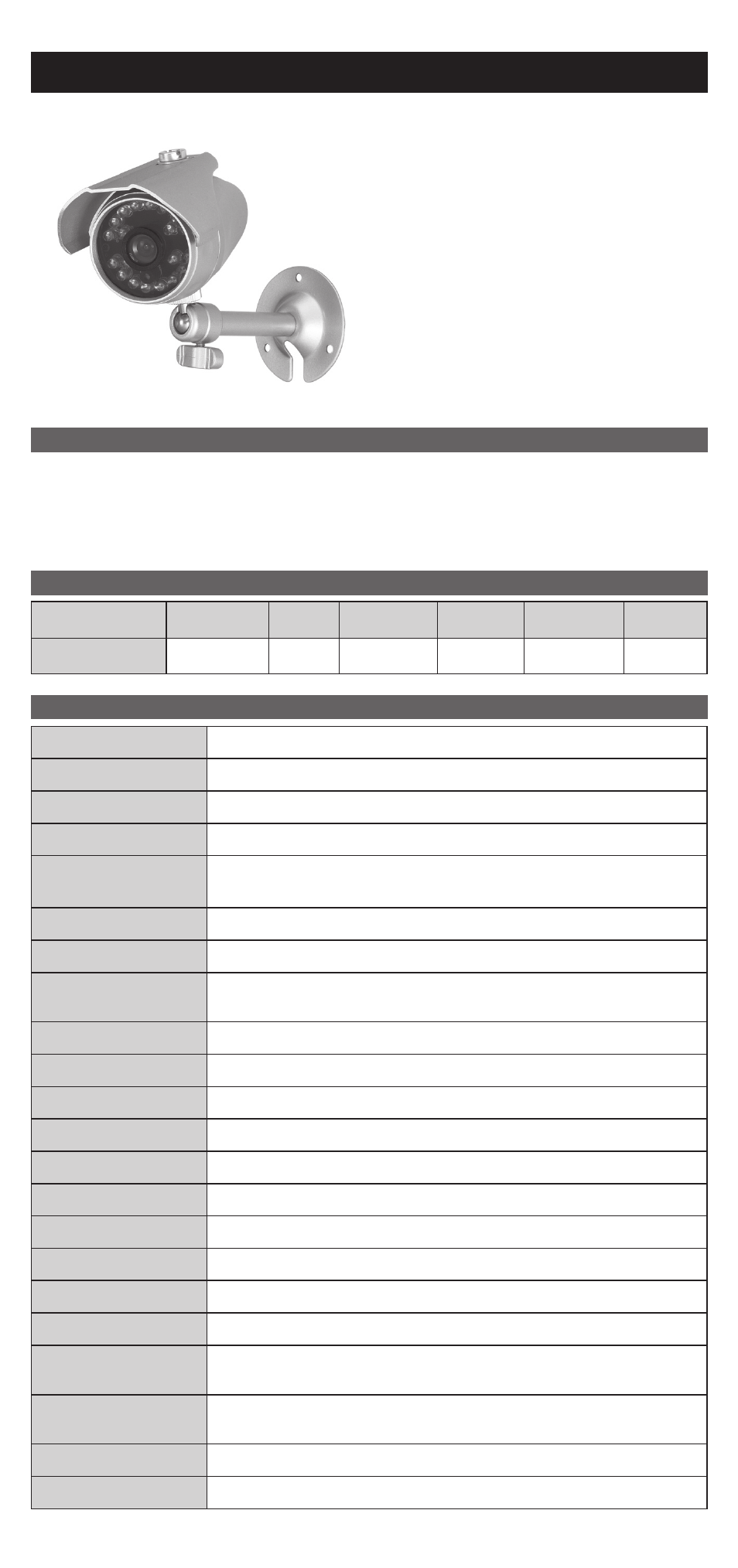

NIGHT VISION DSP COLOR CCTV CAMERA
OPERATION MANUAL
Signal Format
NTSC
Image Device
1/3" Sony Super HAD CCDⅡ
Scanning System
2 : 1 Interlace
H.Resolution
600TV Lines
Scanning
Frequency
15.734KHz(H), 59.94Hz(V)
Total Pixels
811(H) x 508(V)
Effective Pixels
768(H) x 494(V)
Electronic
Shutter Speed
1/60 ~ 1/100,000 sec
S/N Ratio
More than 50dB(AGC OFF)
Gamma
r= 0.45
Sensitivity
0 Lux (IR LED ON)
Sync System
Internal
Video Output
1.0 Vp-p Composite(75Ω)
Lens
IR 3.6mm
IR LED
20 Units
IR LED Wavelength
850 nm
IR Beam Range
Up to 30M
Input Power Source
DC 12V ±10% Max. 380mA(IR LED On)
Operating
Temperature
14°F~122°F(-10°C~+50°C)
Storage
Temperature
-4°F~140°F(-20°C~+60°C)
Operating Humidity
Less than 80%
Water Resistant
IP67
Specifications and designs are subject to change for improving the functionality of this product without notice.
KEY FEATURES
These CCD video cameras employ a SONY 1/3" CCD solid-state image device which provides
superior performance.
These cameras can be installed easily in most indoor and outdoor locations with a very low current
consumption of 380mA or less.
These cameras are not only easy to install but achieve an excellent reliability record.
ACCESSORIES FURNISHED
SPECIFICATIONS
Accessories
Mounting
Bracket
Screw
Coin Hole
Bolt
Washer
Sun Shield
Manual
Q'ty
1
3
1
1
1
1
M103-NSP301-002
Thank you for choosing our high quality camera.
Before attempting to connect operate this unit,
please read and follow these instructions.
