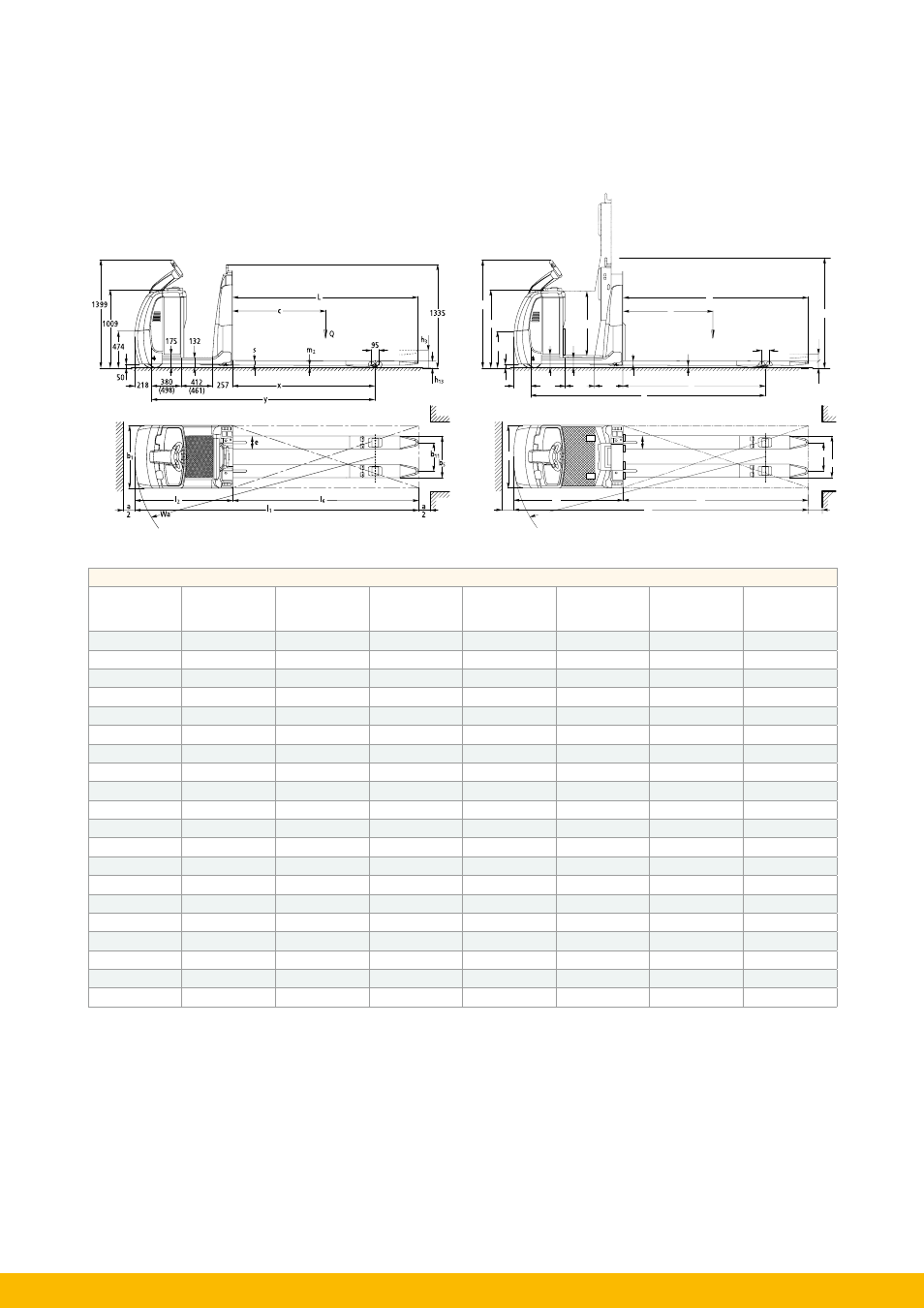

ECE 220/225
ECE 225
Values in brackets apply to XL
ECE 225
1399
1009
474
50
218 450 383 365 x
y
175 150
s
L
c
Q
1433
m
2
95 h
3
h
13
e
b
1
a
2
l
2
Wa
l
1
l
6 a
2
b
11
b
5
840
HP = Hydraulic lifting platform
Fork length-dependent dimensions
Fork length
l
(mm)
Fork overhang
(mm)
Capacity
Q
(t)
Overall length 1)
l
1
(mm)
Wheelbase
y
(mm)
Turning radius
Wa
(mm)
Load distance
x
(mm)
Working aisle
width
Ast
1000 186 2.0 2267 1863 2081 814 2467
1150 186 2.0 2417 2013 2231 964 2667
1250 186 2.0 2517 2113 2331 1064 2717
1400 186 2.5 2667 2263 2481 1214 2867
1400 560 2.0 2667 1891 2109 842 2867
1450 560 2.0 2717 1941 2159 892 2917
1600 186 2.5 2867 2463 2681 1414 3067
1600 560 2.0 2867 2091 2309 1042 3067
1880 560 2.5 3147 2371 2589 1322 3347
1950 560 2.5 3217 2441 2659 1392 3467
2180 800 2.5 3447 2429 2647 1380 3647
2280 800 2.5 3547 2529 2747 1482 3747
2310 186 2.5 3577 3173 3391 2124 3797
2400 560 2.5 3667 2889 3107 1480 3867
2400 800 2.5 3667 2649 2867 1600 3867
2430 900 2.5 3697 2597 2797 1530 3905
2550 800 2.5 3817 2799 3017 1750 4017
2850 800 2.5 4117 3099 3317 2050 4317
2900 800 2.5 4167 3149 3367 2100 4367
3100 800 2.5 4367 3349 3567 2300 4567
1) ECE 220/225 XL: Values + 167 mm; ECE 220/225 HP: Values + 150 mm
2) With raised load section = values - 89 mm
