18
Installation
The software also shows and saves all important measurement and
configuration parameters, such as the reflex list, measurement
values, limit values and all advanced settings, such as response
time, frequency, amplitude, angle and temperature.
Take further information from the SLUDGE DOCTOR user manual
DOC013.98.90411
.
3.4.2 Installation of the sensor
Note: Take further information on the installation from the installation
instructions.

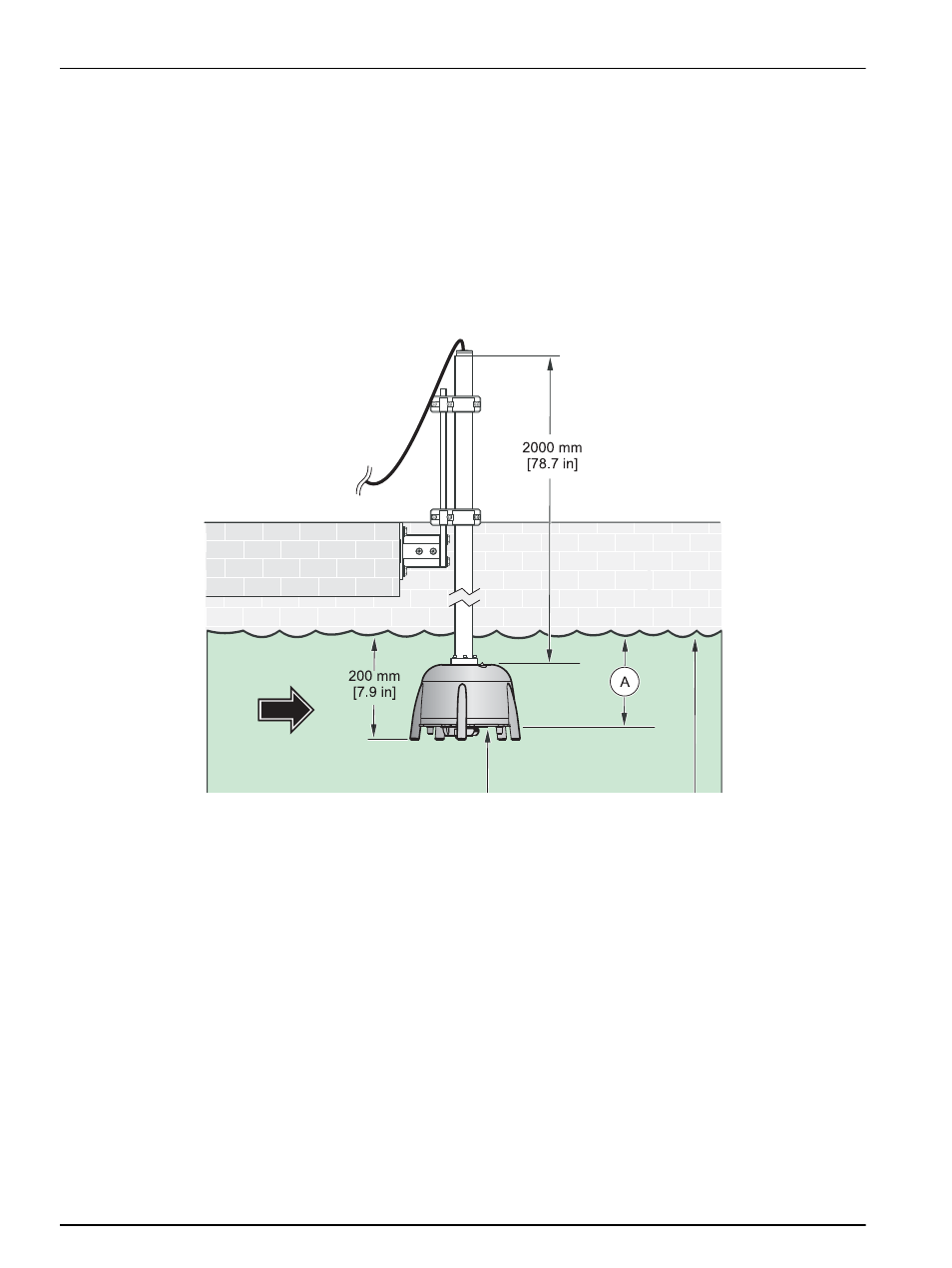

Figure 11 Installation of the sensor
3.5 Advanced settings
In the SENSOR SETUP > CALIBRATE > ADV. SETTINGS menu,
special probe parameters can be found.
The default settings of these parameters are selected so that no
correction is required in most applications. In exceptional cases,
these parameters must be adapted depending on the application.
The examples that follow show typical sludge profiles.
