Installation

At a suitable measurement location, there should be:

•

Sufficient sludge present for the measurement, and

•

A calm, clear phase above the sludge level

In the examples shown, area (A) shows only very little or no sludge,
while in the area (C) above the sludge layer, sludge clouds may
disrupt the measurement. The measurement points (A) and (C) are

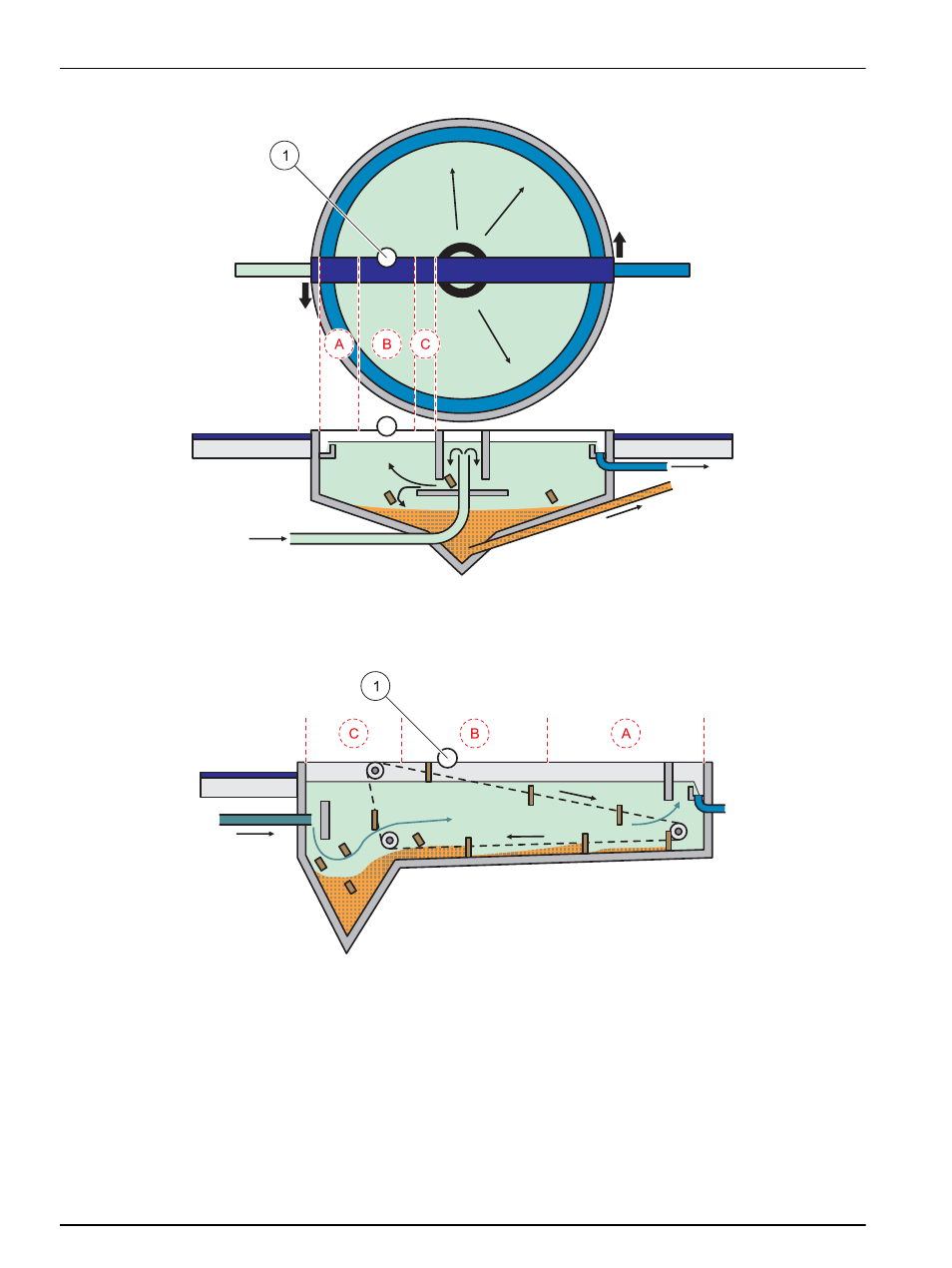

Figure 7 Round tank graphic

Figure 8 Rectangular tank graphic
