18
Installation

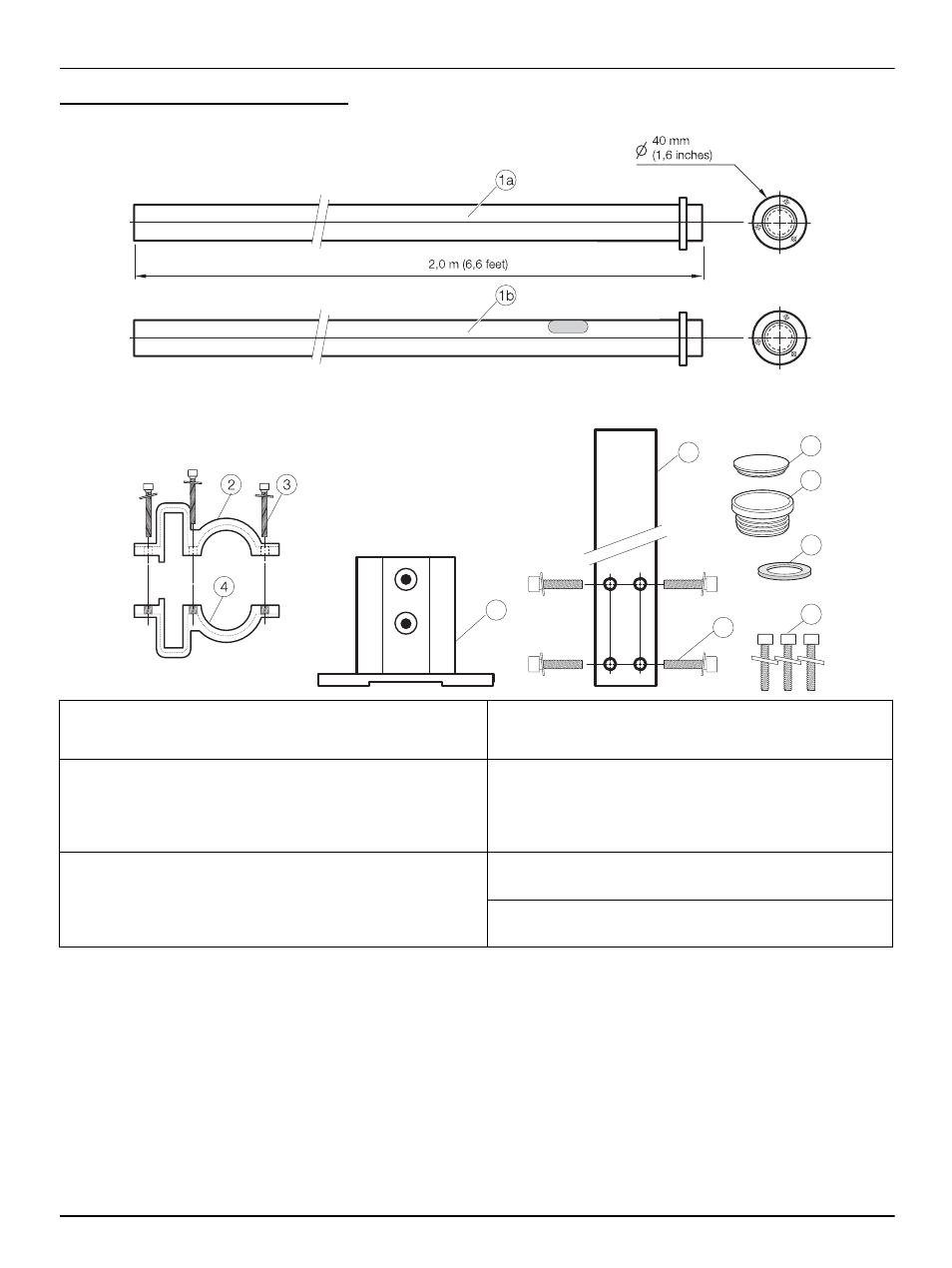

Fig. 3-13 Components for the module carrier bracket
1. (a) BRO060 mounting pipe 2.0 m for LZX414.00.00000
(b) BRO069 mounting pipe 2.0 m with slot on side for
LZX414.00.40000
6. HPL061 fastening lug
Included in retaining clamp LZX200:
2.
Clamp half (2)
3. Cheese head bolt M5 x 20 (6)
4. Clamp half with thread (2)
Included in hardware LZX416:
7.
Cheese head bolt M8 x 40
8. Blanking plug
9. Plug
5. ATS010 base
Included in hardware LZX417:
10. Flat seal
Included in hardware LZX702:
11. Cheese head bolt M3 x 10 (6)
5
6
7
8
9
10
11
