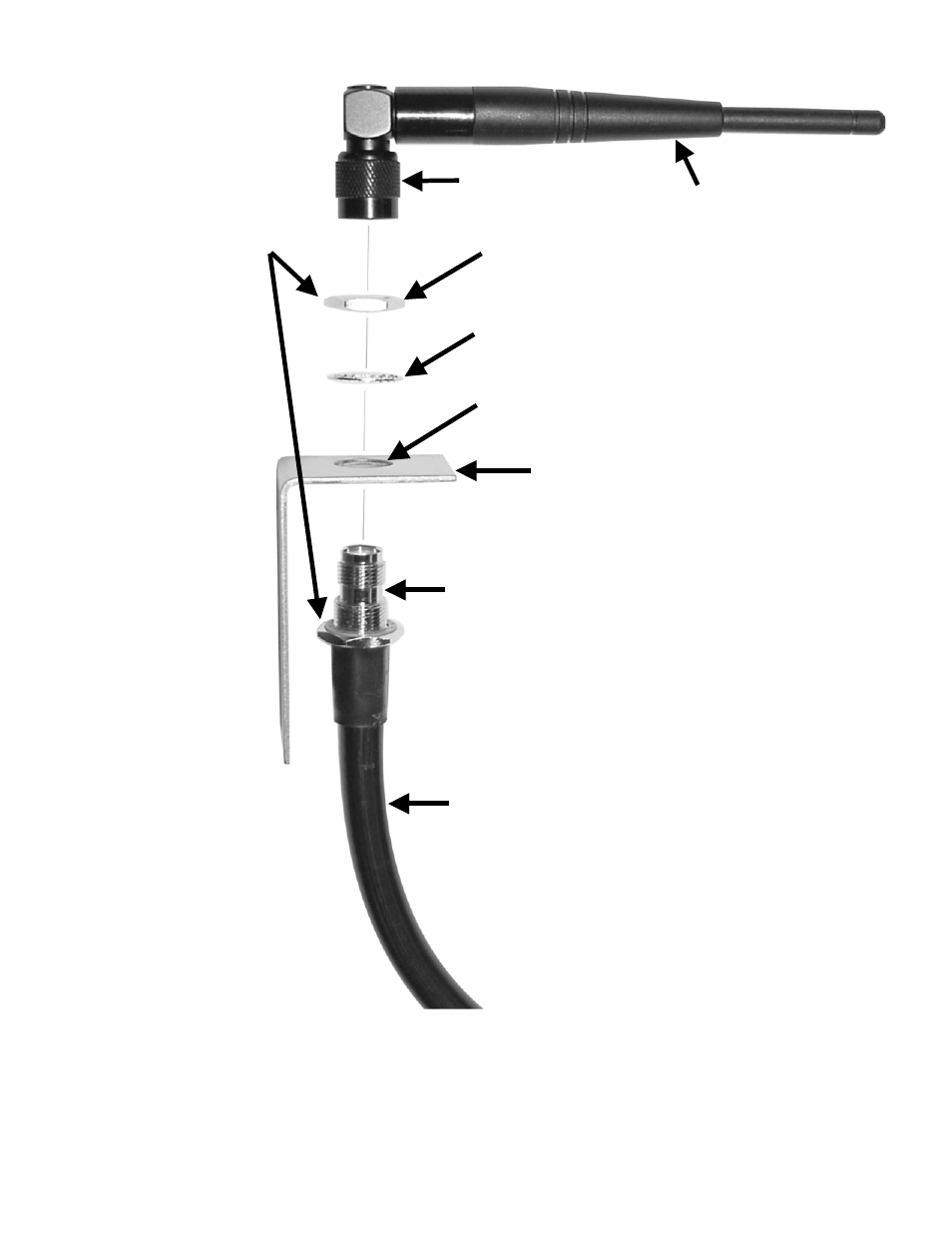

Remote antenna mounting on wall bracket
Antenna
Male
antenna cable
connector
Hole in
bracket
Lock
washer
Hexagonal
nut
NOTE: The wall bracket can be
mounted as shown, or in the reversed
position, with the hole for mounting
the antenna at the bottom.
Wall bracket
Antenna
connector
(screw type)
Antenna cable
CAUTION:
Use two wrenches when
tightening hexagonal
nuts, to prevent twisting
and damaging the cable.
