Cashco SCV-S User Manual
Page 12
IOM-SCV-S
12
REPLACEMENT
ITEM NO.
DESCRIPTION
PARTS
1 Body
2 Bonnet
3 Stem/Metal
Plug
*
4 “Tri-Clover”
Clamp
7 Gasket
*
8 Yoke
Nut
9
Seal Rings (2 req'd.)
*
10 Stem/Composition
Seat
*
11 Gasket
*
12 Seat
Nut
*
13 Seat
Disc
*
14 Pin
*
15 Plug
*
16 Indicating Washer
17 Stem Jam Nuts
ITEMS NOT SHOWN
ITEM
NO.
DESCRIPTION
5
Flow Arrow Tag
6
Drive
Screw
42
See Figure 3

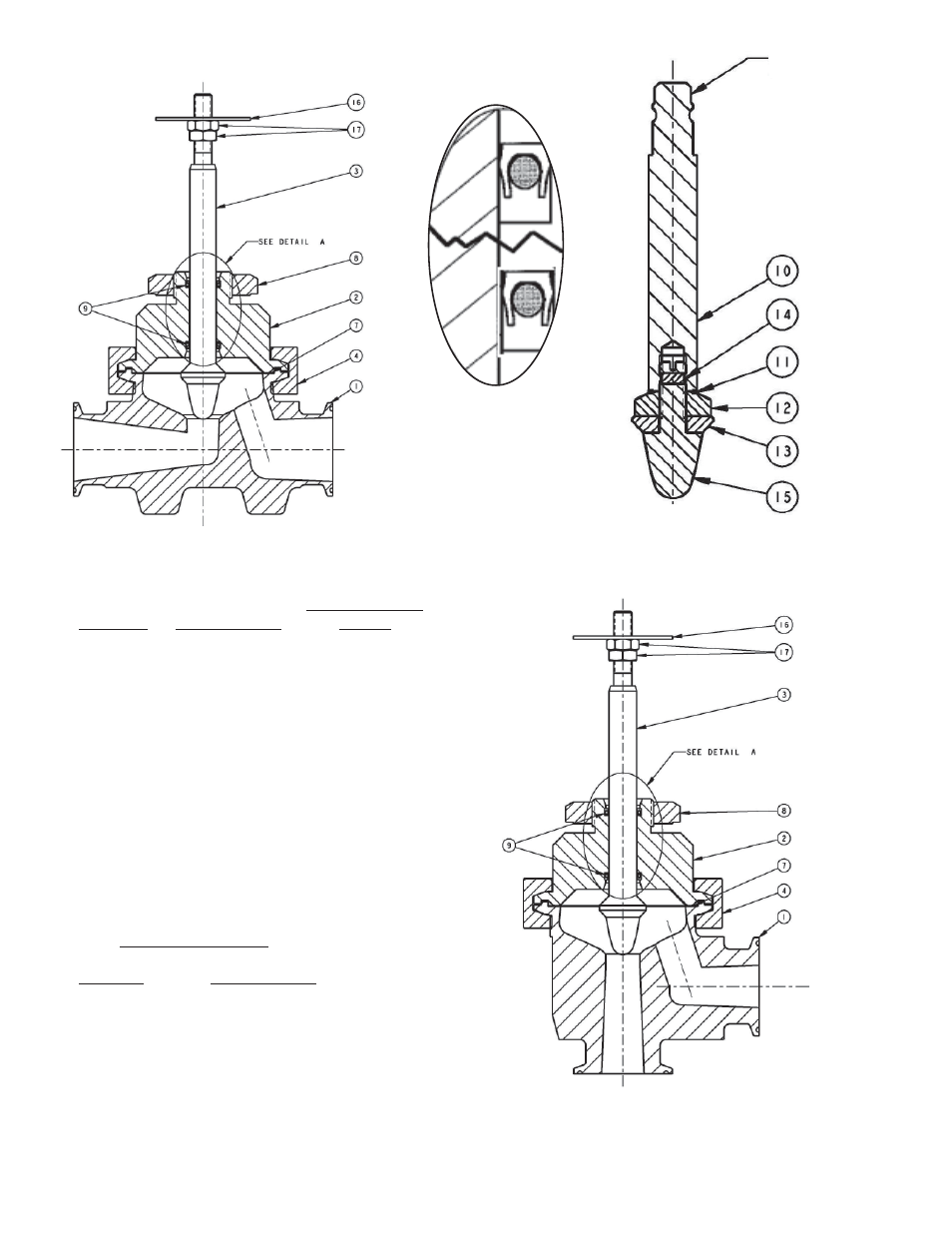

FIGURE 4:
Straight-Globe Body Assembly (BA),
Metal Seat
FIGURE 5:
Angle-Globe Body Assembly (BA),
Metal Seat
Figure 6:
Composition seat with
OPT-68 Quick Disconnect
OPT-68
Detail A
