15 IOM-2296
Item No. De scrip tion
1 Body
2 Bonnet Or Extension Column
3 Seat Ring
4 Plug & Stem Subassembly
5 Seat Ring Gasket ‡
6 Body O-Ring Or Body Gasket ‡
7 Seat Insert ‡
8 Seat Retainer
10 Packing ‡
11 Packing Follower
12 Stem Guide Bushing
13 Spring Pin
15 Yoke Nut
16 Indicating Washer
17 Stem Jam Nuts
19 Cage (2" size only)
20 Packing Stud
21 Packing Stud Nut
23 Packing Flange
24 Wiper Ring ‡
25 Spring (Packing)
26 Washer (Packing)
27 Body Stud (2" size only)
28 Body Stud Nut (2" size only)
29 Bushing (Packing Follower)
‡ Recommended replacement parts.

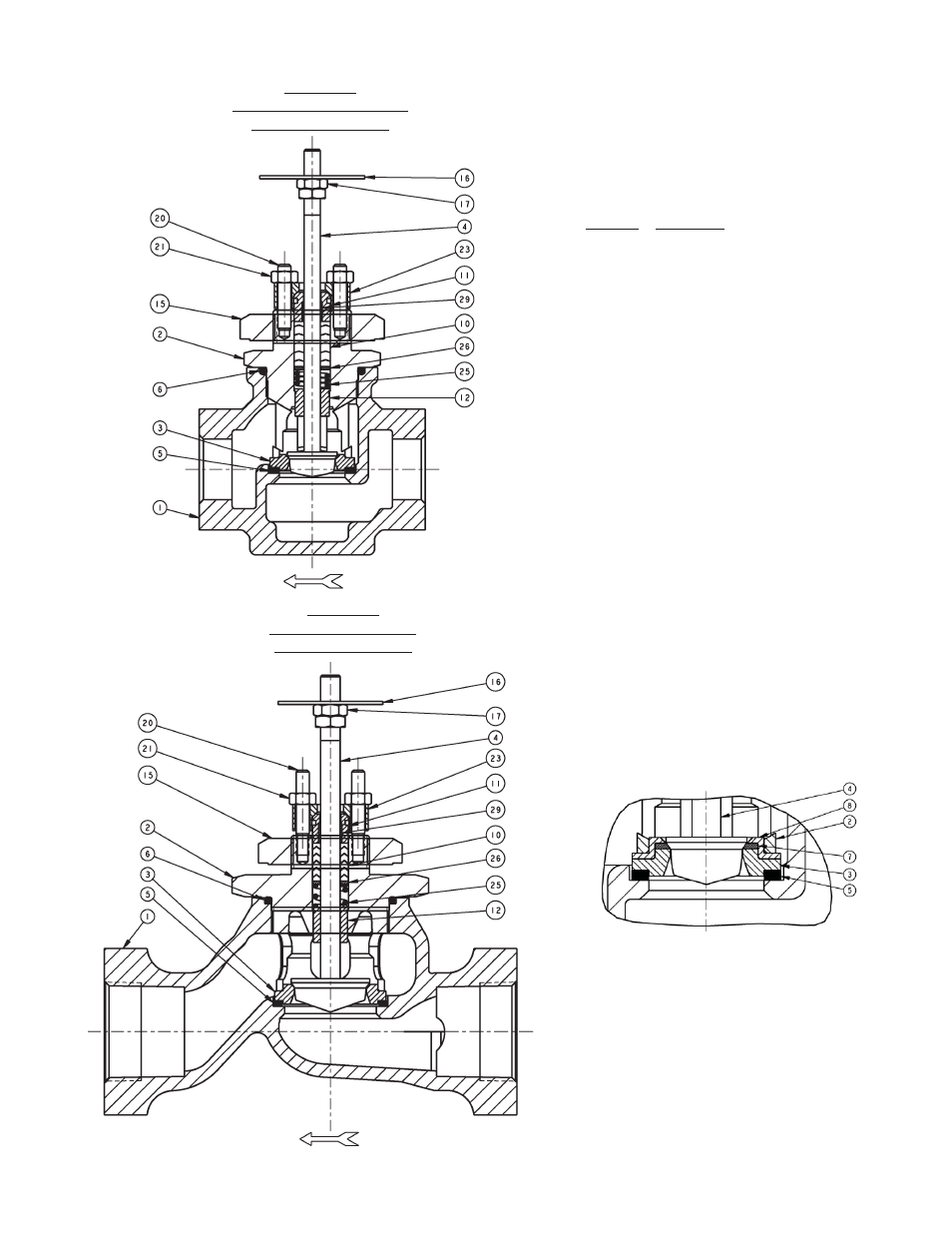

Figure 4
Composition Seat Design
Figure 3A
1/2" – 1-1/2" Body Sizes
Metal Seat Design.
Figure 3B
1-1/2" HF Body Size
Metal Seat Design.
