ENGLISH

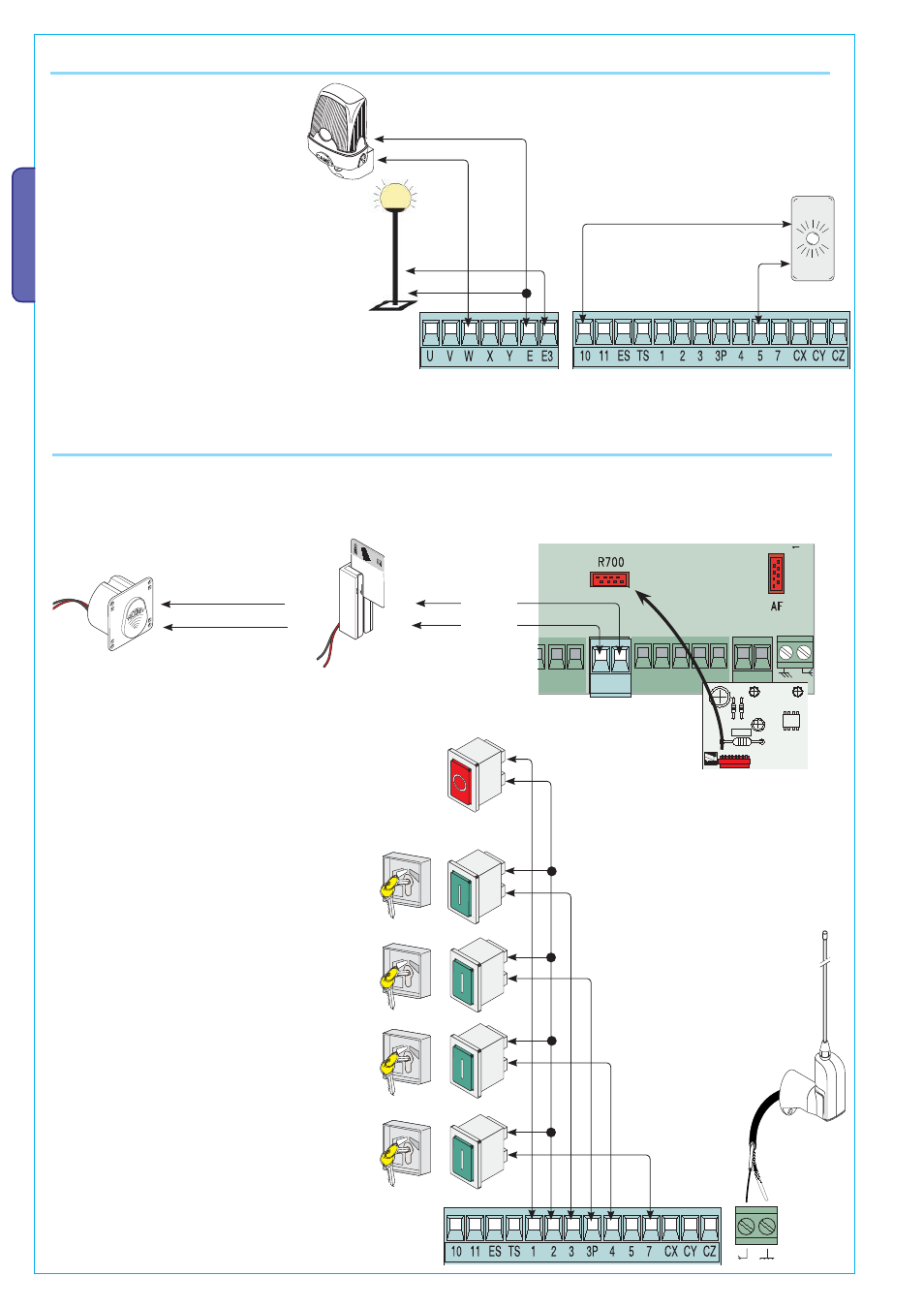

Cycle lamp: (contact rating: 230V – 60W max.)
It lights up the driving area and stays on from the
moment the gate begins to open until it is fully closed
(including the automatic closing time). If automatic
closing is not activated, the lamp stays on only during
movement or for a set time of 5 minutes if used as a
courtesy lamp.
Signal Flasher (socket rating: 230V
- 25W max.) Flashes during opening
and closing phases.
Signalling and Lighting devices
Command devices
Stop button (N.C. contact) - Button to stop gate while
excluding the automatic closing cycle. For movement to
resume you must press the command button or transmitter
button.
N.B.: if contact is unused, select Disabled on the
“FUNCTIONS” menu.
Key selector and/or opening button (N.O. contact) -
Gate opening command.
Key selector and/or commands button (N.O.
contact) - Commands for opening and closing the
gate – pressing the button or turning the key-
switch, inverts the gate’s movement or stops it
depending on how it is set on the 2-7 command in
the “FUNCTIONS” menu.
Key selector and/or partial opening button (N.O.
contact) - Partial gate opening for pedestrian
access.
Key selector and/or closing button (N.O. contact) -
Gate closing command.
Open gate indicator-light
(socket rating: 24V - 3W max.).
Turns on when the gate is ajar or open.
It turns off when the gate is closed.
TSP00 - Transponder sensor
N.B.: insert the R700 emcoding card for the
TSP00 sensors and LT001 card readers to be
recognised.
LT001 - Magnetic card reader
Black
Red
Antenna with RG58
cable for the remote
control.
