18

STAGE 5

COMMISSIONING THE CONTROL PANEL

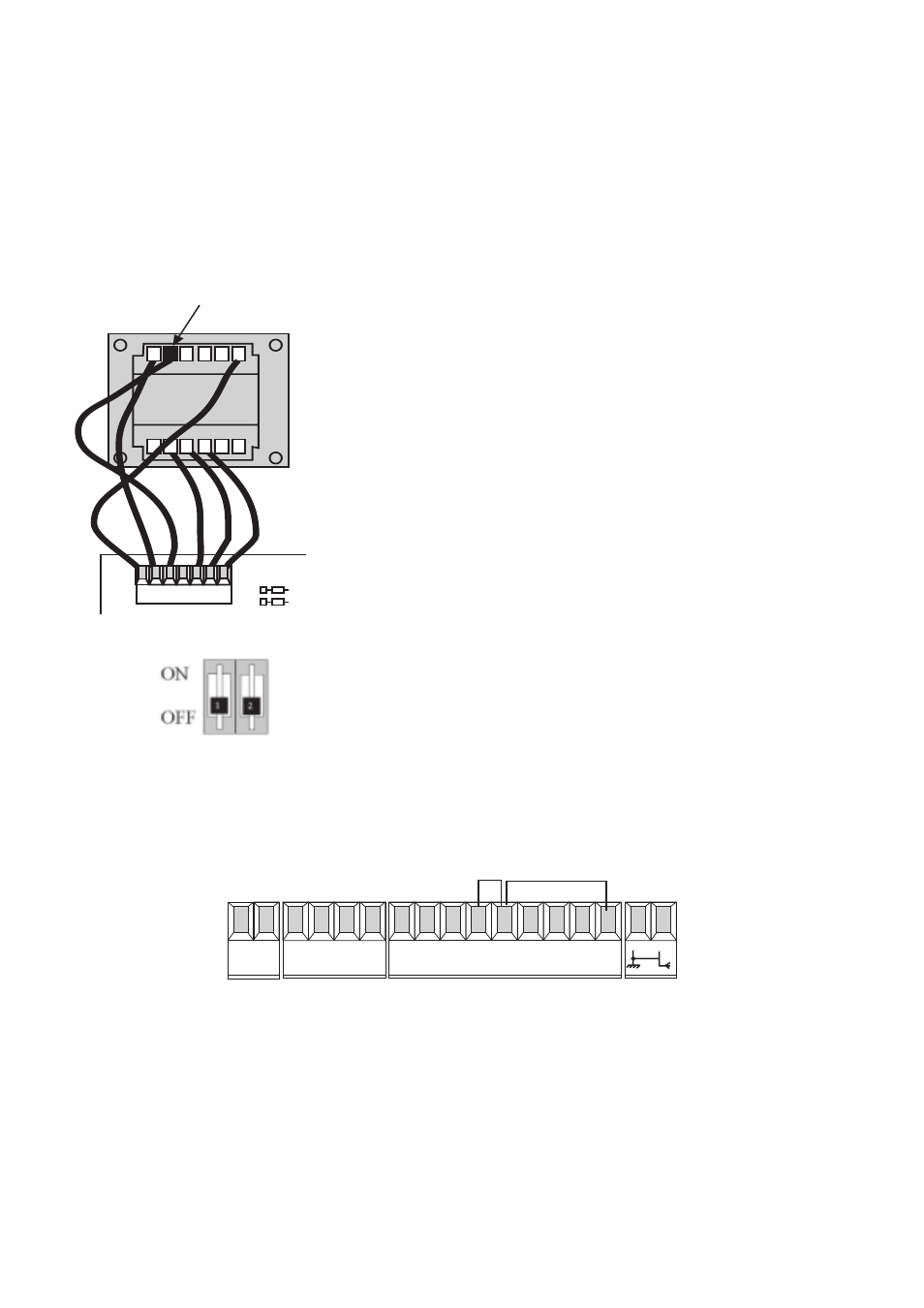

5.1 - Initial Wiring & Control Panel Setup

1.

CONNECT POWER TERMINALS L1 - L2
AND A SUITABLE EARTH (L2 BEING LIVE!)

2.

SELECT THE MOTOR POWER SETTING ON
THE TRANSFORMER TO LEVEL 1 FOR
COMMISSIONING

Fig 16

Fig 17

Fig 18

3.

SELECT DIPSWITCHES 1 & 2 OFF FOR
COMMISSIONING

4.

ENSURE HARD WIRE LINK IS FITTED
BETWEEN TERMINALS 1 & 2 AND
2 & C1

L1 L2 U V W E1 ES 10 11 1 2 3 5 7 C1
