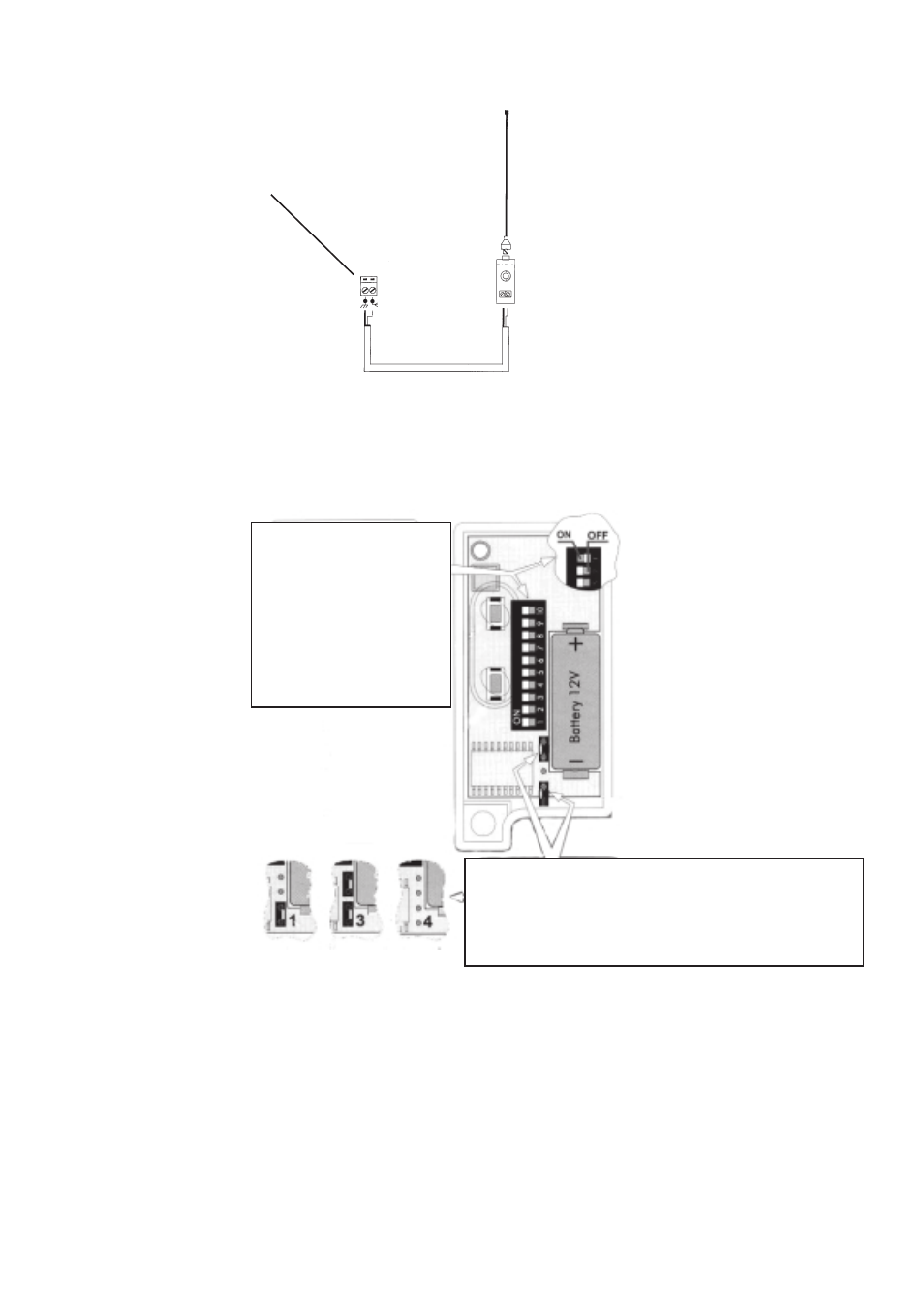

4.4 - Wiring in the Tuned Antenna
4.5 - Coding the Remote Controls
1. REMOVE THE BATTERY COVER & CASING OF THE REMOTE CONTROL
HANDSET TO REVEAL THE DIAGRAM BELOW
4.6 - Powering up the Control Panel
CONNECT PROTECTED MAINS POWER TO TERMINALS L1 + L2 IN THE
CONTROL PANEL (L2 BEING LIVE!). ENSURE THAT THE CONTROL PANEL
IS ADEQUATELY EARTHED.
ANTENNA
WIRING
POINT
Fig 14
2. SET THE BANK OF
DIPSWITCHES ON
ALL REMOTES TO
EXACTLY THE SAME
CODE OF YOUR
CHOICE.
3. UNLESS PROGRAMMING FOR GATES AND
GARAGE DOORS TO OPEN BY REMOTE
CONTROL FROM THE SAME HANDSET ENSURE
THAT THE JUMPER STRAPS SHOWN HERE ARE
IN THE SAME POSITIONS ON ALL REMOTES
Fig 15
