2.3 - Low Voltage Cable Layout
THIS DIAGRAM DETAILS THE BASIC CABLE LAYOUT FOR
A PAIR OF MOTORS.
THE POWER SUPPLY TO THE CONTROL PANEL SHOULD BE LIVE AND PROTECTED IN
ACCORDANCE WITH THE 16TH EDITION ELECTRICAL REGULATIONS. THE SUPPLY
SHOULD BE RATED AT A MINIMUM OF 6 AMPS. WHEN INSTALLING WIRES OUTDOORS
THE CABLE APPROACH TO ALL DEVICES MUST BE FROM BELOW TO CREATE A “DRIP-
LOOP” AND THEREBY AVOID UNNECCESSARY WATER INGRESS.
WHEN INSTALLING LOW VOLTAGE CABLE AROUND THE GATEWAY IT IS ADVISED TO
PUT ALL LOW VOLTAGE CABLE IN EITHER DUCTING OR ALKATHENE PIPING. ALL CABLE
JOINTING SHOULD BE CARRIED OUT ABOVE GROUND.
ALL CAME ACCESSORIES CAN BE WIRED 0.2m STRANDED CABLE (BUGLAR ALARM
TYPE). THE TUNED ANTENNA SHOULD BE WIRED WITH COAXIAL CABLE (RG59).
7

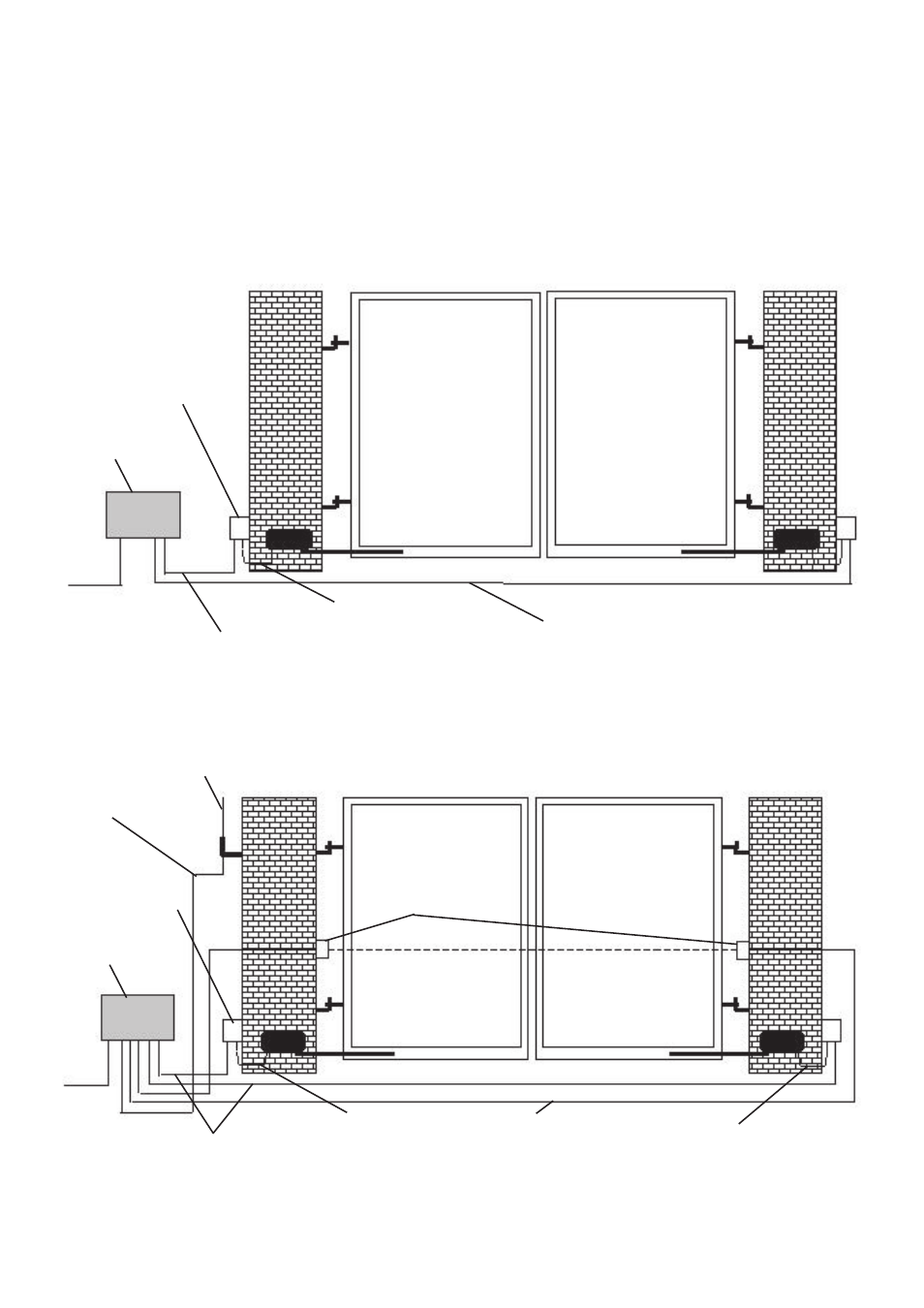

2.2 - Basic Cable Layout
Fig 5
Joint Box
3 Core SWA 1.5m
4 Core Flex
Control Panel
Low Voltage
3 Core SWA 1.5m
Fig 6
Joint Box
4 Core Flex
Control Panel
Safety Photocells
Tuned Antenna
Coaxial Cable
Low Voltage
4 Core Flex
