CAME FerniE-P Kit - Manual (Page 21)

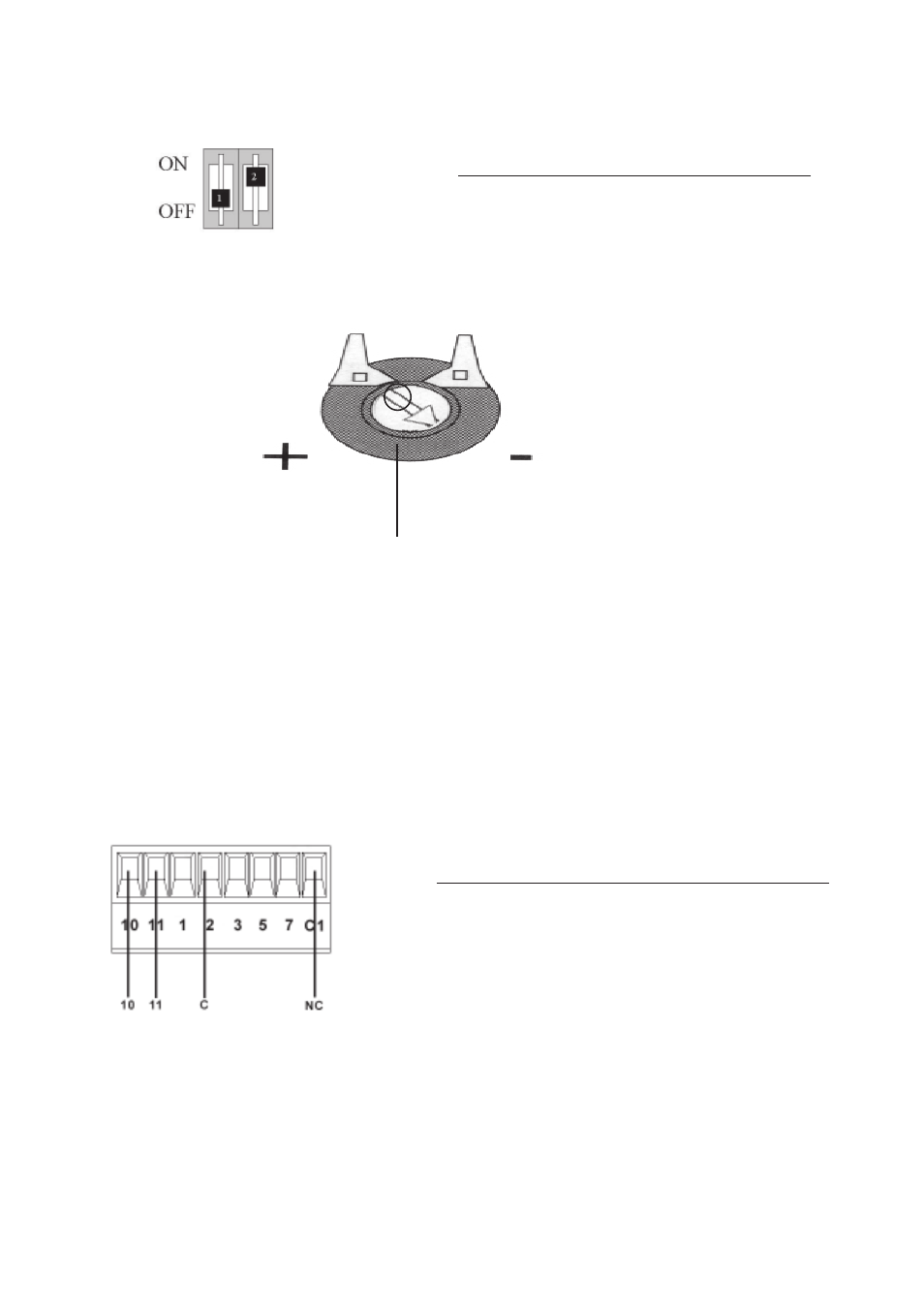

5.4 - Automatic Close & Activating Safety Photocells
2. FOR RE-OPENING DURING CLOSING.
REMOVE HARD WIRE LINK BETWEEN
2 & C1 AND INSERT SAFETY BEAM
WIRES AS SHOWN.
FULLY ANTI-CLOCKWISE WILL APPROX. AUTOMATICALLY CLOSE THE GATES
AFTER 10 SECONDS AND FULLY CLOCKWISE WILL APPROX. CLOSE THE
GATES AFTER 80 SECONDS. A SENSIBLE SETTING IS ABOUT HALWAY
(I.E 6 O’CLOCK POSITION) WHICH WILL AUTOMATICALLY CLOSE THE
GATES AFTER APPROX. 30 SECONDS.
6 O’CLOCK
TRIMMER
TCA
1. TO SELECT AUTOMATIC CLOSING,
SELECT DIPSWITCH 2 ON.
SET THE AUTOMATIC CLOSING TIME BY ADJUSTING POTENTIOMETER TCA
Fig 24
Fig 25
Fig 26
20
