10

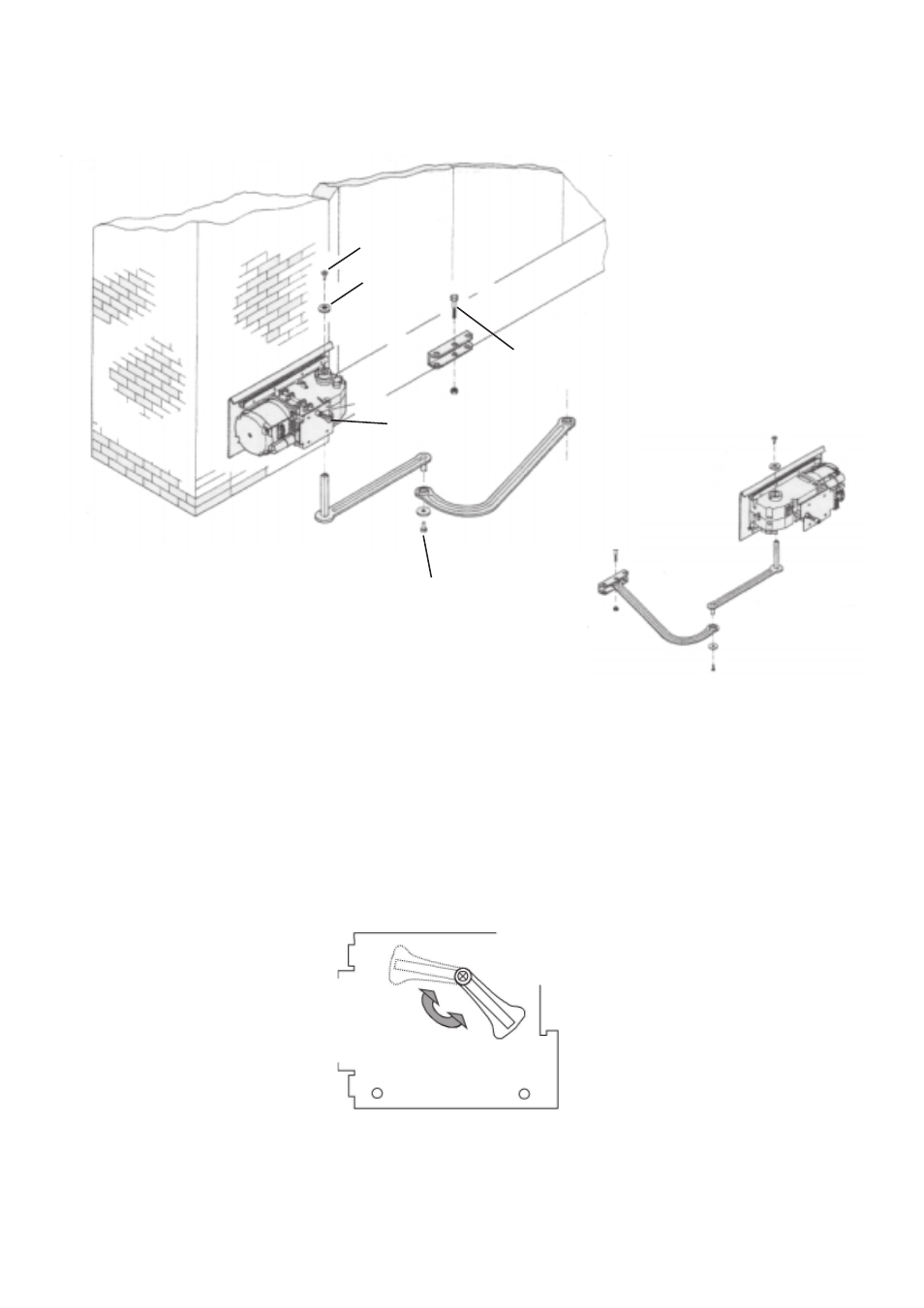

3.2 - Installing the Drive Arms
INSERT THE STRAIGHT ARM THROUGH THE GEARBOX, HOLDING IT IN
PLACE FIT THE FLARED WASHER USING THE M6 X 20 COUNTER SUNK
SCREW. GRIP THE SHAFT IN PLACE BY TIGHTENING THE FOUR GRUB
SCREWS TOP AND BOTTOM OF THE GEARBOX. JOIN AND FIX THE TWO
ARMS TOGETHER WITH THE WASHER AND THE M8 X 16 BOLT.
FIT THE CURVED ARM TO THE FRONT MOUNTING BRACKET USING THE
M12 X 50 BOLT AND M12 NUT.
RELEASE THE MOTOR (ROTATING THE HAND GRIP IN THE DIRECTION OF
THE ARROW.
Fig 8
Fig 9
M6 x 20
Countersink Washer
Knob
M12 x 50
M8 x 16
