LIST WARNINGS OF THE COMMAND AND SAFETY DEVICES’ CONTROL LEDs:
- «PROG» Red Led. Normally off.
When the transmitter is activating, it turns on or fl ashes.
- «PWR» Green led. Normally on.
Shows that card is properly powered;
- «1» Yellow led. Normally off.
Shows activation of the PARTIAL STOP button.
- «3p» Yellow Led indicator. Normally off.
Indicates that the PARTIAL OPENING button has been activated.
- «7» Yellow Led indicator. Normally off.
Indicates that the OPENING and CLOSING button has been activated.
- «C1» Yellow led. Normally off.
Shows that there are obstacles between the photocells (which are in OPEN WHILE CLOSING mode).
- «C3» Yellow Led. Normally off.
Shows that there are obstacles between the photocells (which are in PARTIAL STOP mode).
- «C6» Yellow Led. Normally off.
Show obstacles detected by the sensitive edge (which are in OPEN WHILE CLOSING mode).
- «C7» Yellow Led. Normally off.
Shows obstacles detected by sensitive edge (which are in CLOSE WHILE OPENING mode).

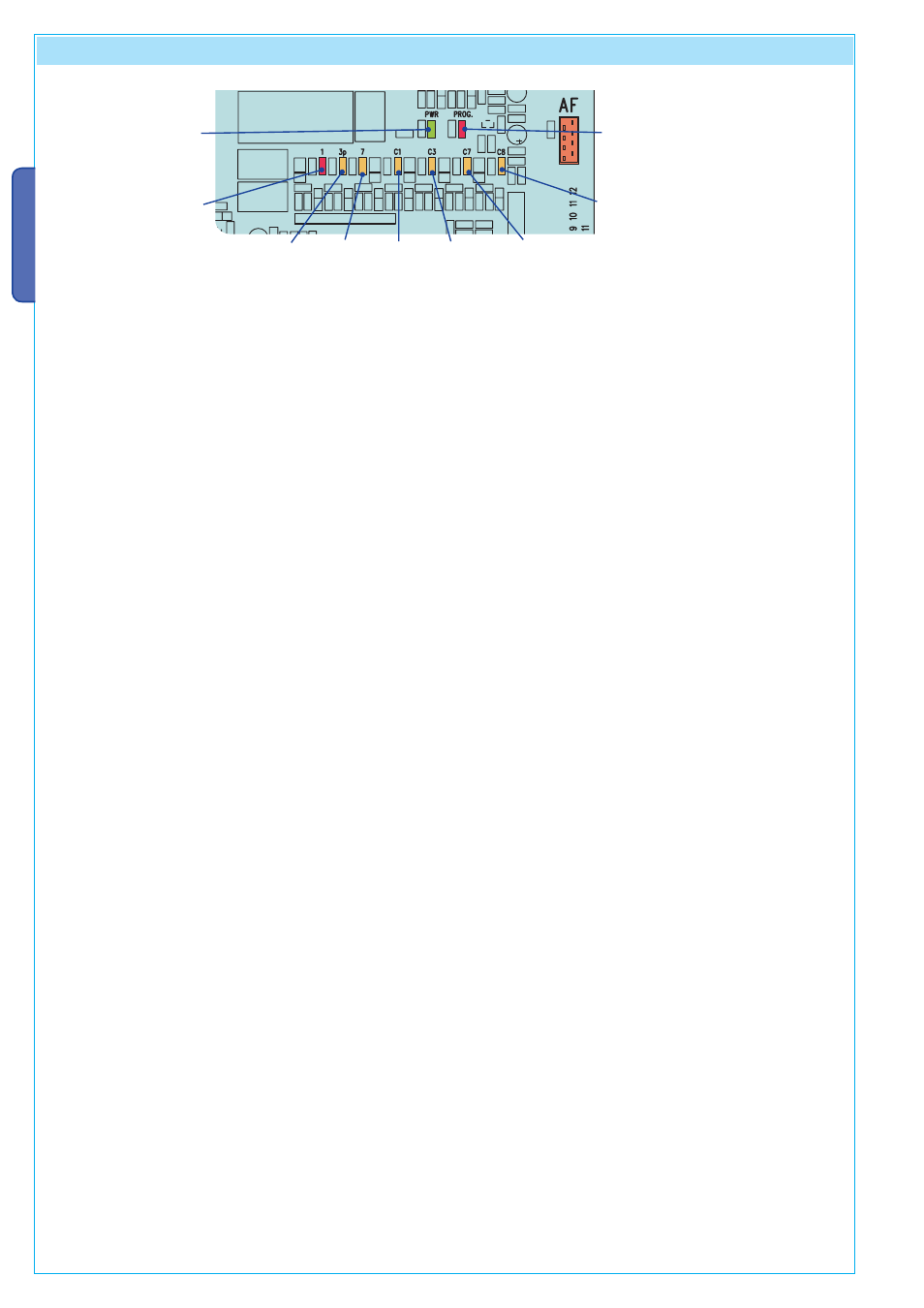

9 Warning Led
Led C7
Led 1
Led C1 Led C3
Led C8
Led PWR Led PROG
Led 3p Led 7
