CAME Frog-AE - Manual (Page 4)

8
6
5
2
4
7
10
9
3
1
9
1
10
3
4x1,5
3x1,5
230V
4x1
2x1,5
RG58
3x1
5x1
2x1
4x1
RX
TX
RX
TX
4x1,5
2x1
11
1) FROG unit
2) Control panel
3) Safety photocells
4) Radio receiver
5) Key-switch selector
6) Antenna
7)
Command push-buthon panel
8) Flashing light
9) Photocell column
10) Shunt box
11) Transmitter

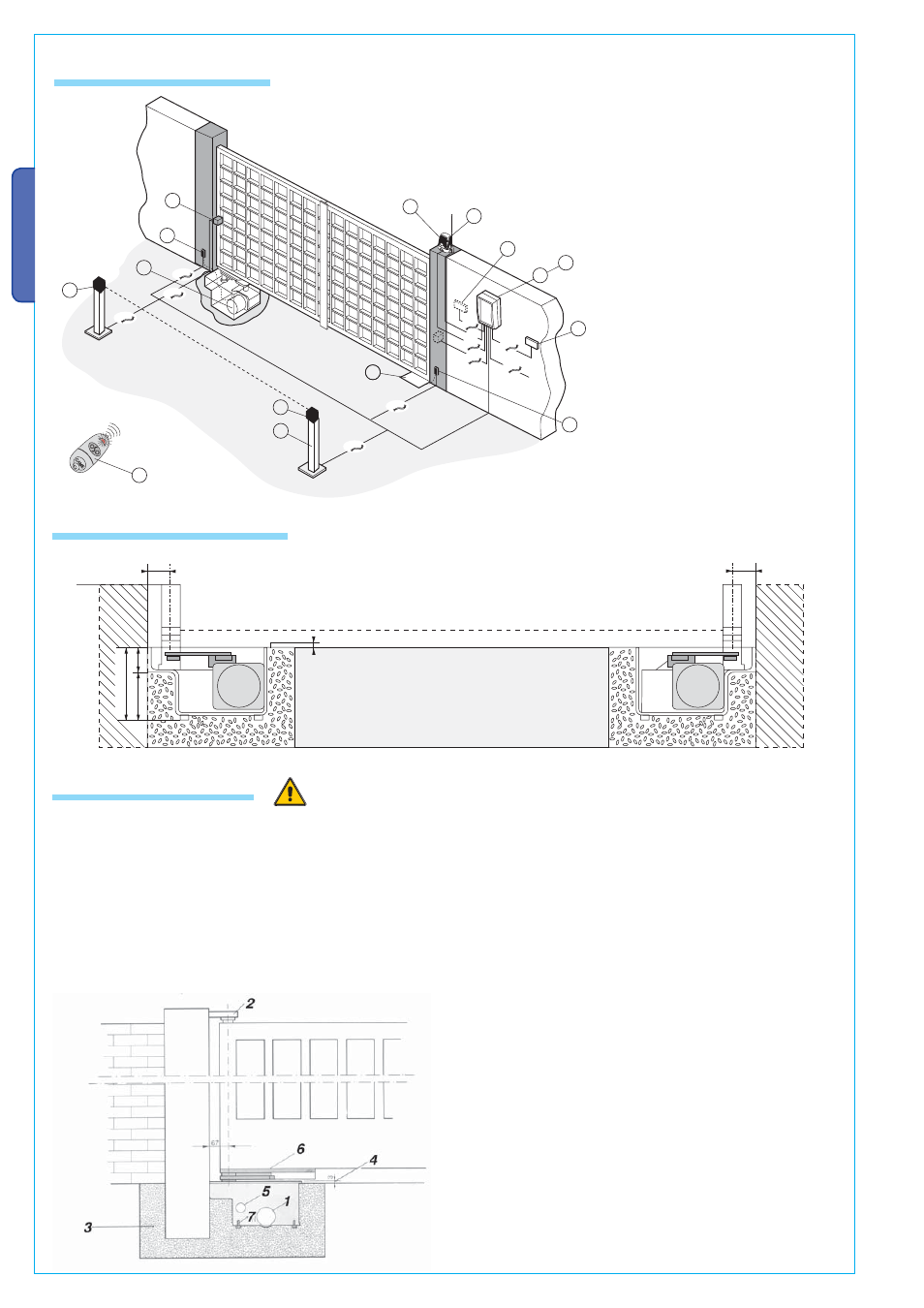

5.4 Standard installation
5.5 Assembly diagram
Fig.3
67 67
160
100
60
3
5.6 Installing the unit
- Check the effi ciency of both moving and non-moving parts on the structure that will be supporting the operator;
- Determine, depending on the type of supporting structure and desired opening, the exact position of the motor assembly by
following the standard applications shown;
- Set up a closing end stop and an opening end stop (fi g. 4, p. 5)
- Dig, depending on the size of the assembly, a foundation pit in the chosen spot (Fig. 3);
- Prepare a drainage system in the foundation, to drain away any water leaks which may cause oxidation (fi g 3 – part.1);
- The foundation box makes for quick and easy setting up of the assembly. Place it inside the pit with the pin aligned to the upper
hinge (Fig. 3 – part. 2), sink it into the cement (Fig. 3 – part. 3) making sure it is perfectly levelled and that the upper edge is 3mm
above ground level (Fig. 3 part. 4);
- Plan for the route of the electrical cables according to the command
and safety instructions using the apposite hole on the box (Fig. 3
– part. 5);
- Grease the rotation pins of the foundation box and the gate attach-
ment lever; the hinge and pin lever must be aligned;
- Position the gate leaf between the upper hinge and the pin lever;
the hinge and pin lever must be aligned;
- Secure the pin lever to the gate leaf, by welding spots 3 to 4 cm
apart along the contact surface. Avoid any welding near the threaded
screws (Fig. 3 – Part. 6).
