1. Remove all loose pieces from the pump kit box and save all packaging
until all the parts are identified and located. If any parts are missing or if
you feel you have been given the wrong part, DO NOT return the pump
kit. Contact your dealer for the required parts. They will be pleased to
assist you.
2. Disconnect the electrical cord and unscrew the Control Cable plug
counter-clockwise. If the water distiller has been in use before, be sure to
turn off the feed water line saddle valve, disconnect the feed water line,
drain the boiling tank and storage tank and remove the wall stabilizer
clamp. Remove the water distiller head and charcoal filter canister from
the storage tank by lifting off from the storage tank.
3. Turn your water distiller storage tank upside down.

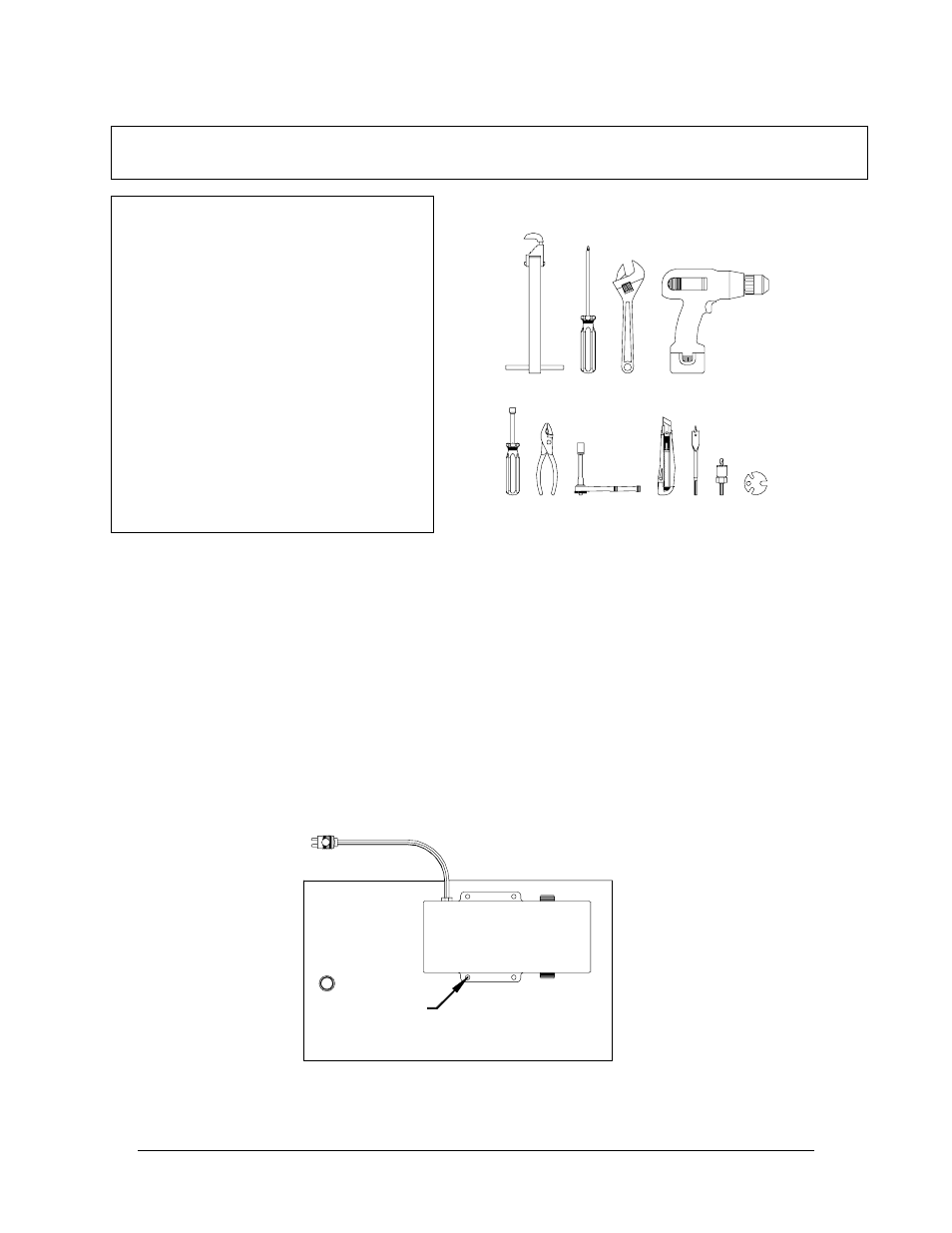

Automatic Pump Mounting Diagram
TOOLS REQUIRED:
For PWS APK-1 Pump Kit
Installation
(A) Basin Wrench
(B) #2 Robertson Screwdriver
(C) 10” Adjustable Wrench
(D) 3/8” Drill
(E) 3/8” Nut Driver or
(F) Pliers or
(G) Ratchet with 3/8” socket
(H) Utility Knife
(I) 5/8” Wood Bit (minimum
length of 8”)
(J) 7/8” Hole saw for sink
(K) JG Removal Tool
PWS APK-1 Pump Kit Installation
FRONT
REAR
OUTLET
INLET
DRAIN
PUMP ASSEMBLY
STUD & NUT
(BOTTOM OF STORAGE TANK)
(E) (F)
OR
OR
(G)
3/ 8"
3 /8 "
(C)
1
0"
M
IN
.
(K)
(D)
(H) (I) (J)
(B) (A)
