MODEL 2510 & 2510 ECONOMINDER

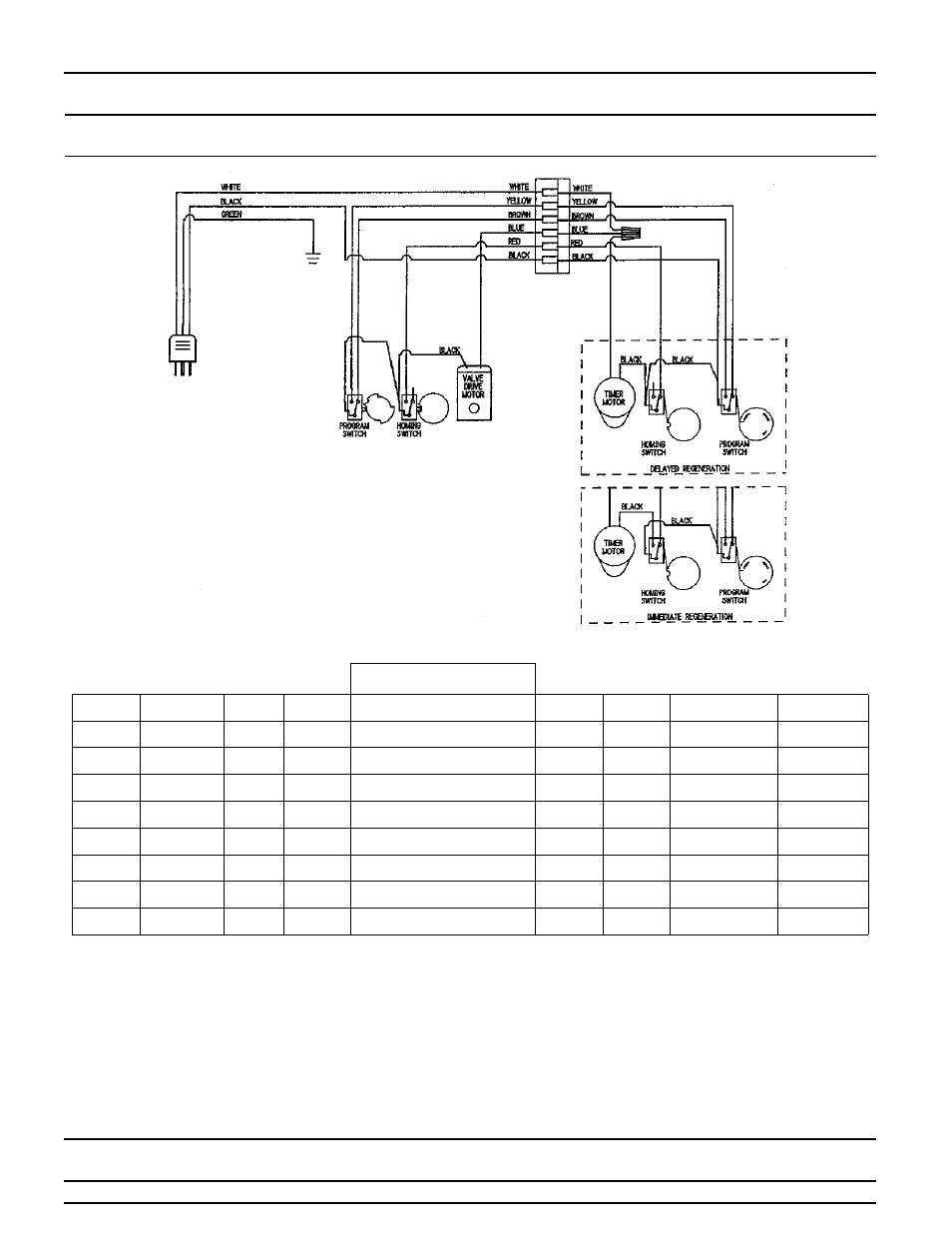

wiring diagram for valve drive motor and timer
Page 28
2510 downflow
Tank Dia. Resin Load Injector Inj. Color Draw / Slow Rinse Rate (GPM)* BLFC** DLFC*** Timer Settings**** Total Capacity
6” .35 Cu Ft #000 Brown .11 gpm / .19 gpm .25 gpm .8 gpm 8-50-5-6 9,450 Grains
7” .56 Cu Ft #00 Violet .21 gpm / .32 gpm .25 gpm 1.2 gpm 8-50-8-8 15,120 Grains
8” .8 Cu Ft #00 Violet .21 gpm / .32 gpm .25 gpm 1.5 gpm 8-50-8-12 21,600 Grains
9” 1.0 Cu Ft #0 Red .26 gpm / .52 gpm .25 gpm 2.0 gpm 10-50-10-14 27,000 Grains
10” 1.25 #1 White .35 gpm / .7 gpm .5 gpm 2.4 gpm 10-50-10-8 33,750 Grains
12” 2.0 Cu Ft #2 Blue .48 gpm / .9 gpm .5 gpm 3.5 gpm 5-8-50-14 54,000 Grains
13” 2.5 Cu Ft #3 Yellow .63 gpm / 1.13 gpm 1.0 gpm 4.0 gpm 5-8-50-8 67,500 Grains
14” 3.0 Cu Ft #3 Yellow .63 gpm / 1.13 gpm 1.0 gpm 4.5 gpm 5-8-50-10 81,000 Grains
1 cubic foot of resin will have 27,000 grains of softening capacity when regenerated with 10 lbs. of salt.
* All listed flows at 60 PSI and will vary at different pressures.
** B.L.F.C. (Brine Line Flow Control) Refill rate for filling the brine tank.
*** D.L.F.C. (Drain Line Flow Control) All flows calculated at 4.5 GPM Per SQ FT of bed area.
The above chart to only be used as a guide. Water Conditions and resin loads may vary. Always consult OEM for details.
