3210 Timer Settings
Page 7
Typical Programming Procedure
Calculate the gallon capacity of the system, subtract
the necessary reserve requirement and set the gallons
available opposite the small white dot on the program
wheel gear.

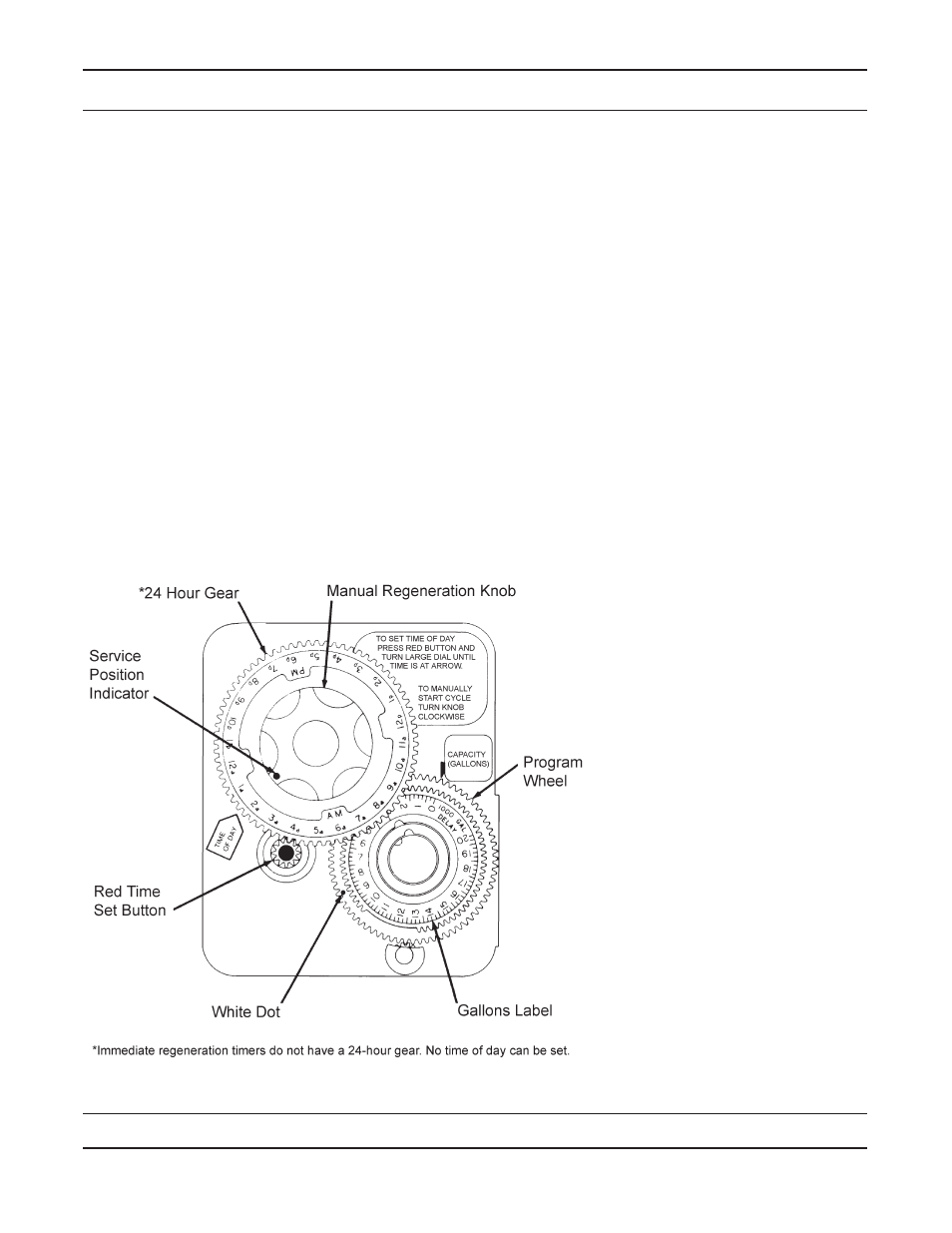

NOTE: Drawing shows 8,750 gallon setting. The
capacity (gallons) arrow (15)shows zero gallons
remaining. The unit will regenerate tonight at the set
regeneration time.
How To Set The Time Of Day:
Press and hold the red button in to disengage the 1.
drive gear.
Turn the large gear until the actual time of day is
2.
opposite the time of day pointer.
Release the red button to again engage the drive
3.
gear.
How To Manually Regenerate Your Water
Conditioner At Any Time:
Turn the manual regeneration knob clockwise. 1.
This slight movement of the manual regeneration 2.
knob engages the program wheel and starts the
regeneration program.
The black center knob will make one revolution in the
following approximately three hours and stop in the
position shown in the drawing.
Even though it takes three hours for this center 3.
knob to complete one revolution, the regeneration
cycle of your unit might be set for only one half of
this time.
In any event, conditioned water may be drawn after
4.
rinse water stops fl owing from the water conditioner
drain line.
Immediate Regeneration Timers:
These timers do not have a 24 hour gear. Setting the
gallons on the program wheel and manual regeneration
procedure are the same as previous instructions. The
timer will regenerate as soon as the capacity gallons
reaches zero.
NOTE:
The program wheel to the
left may be different than the
program wheel on the product.
NOTE:
To set meter capacity rotate
manual knob one - 360°
revolution to set gallonage.
Figure 3
61502_3200REVA
