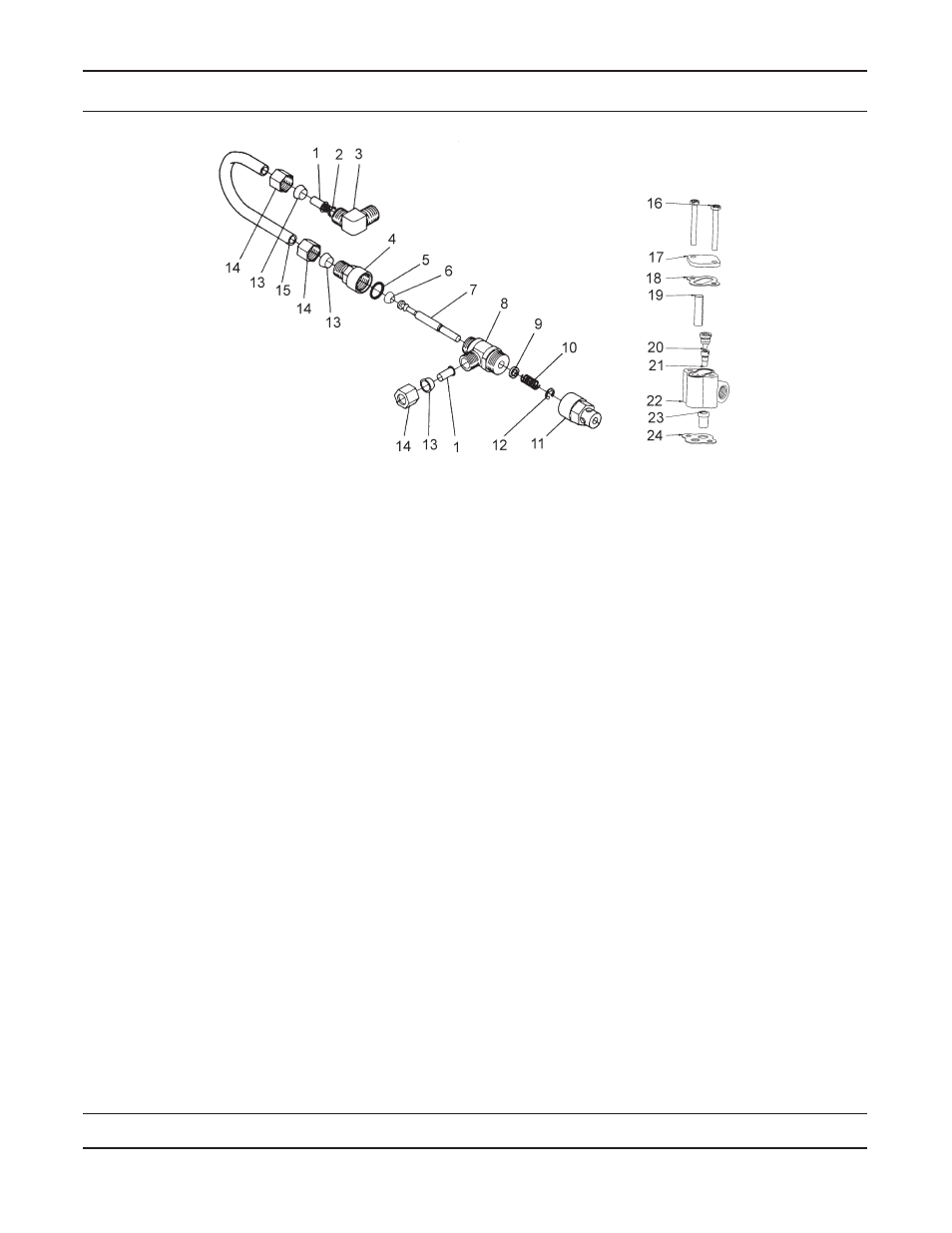

1600 Brine System Assembly
Item No. Quantity Part No. Description
1 ..................... 2 .......................10332 ..........................Fitting, Insert, 3/8
2 ..................... 1 .......................12767 ..........................Screen, Brine
3 ..................... 1 .......................10328 ..........................Fitting, Elbow, 90 Deg. 1/4 PT x 3/8Tube
4 ..................... 1 .......................60020-25 ....................BLFC, .25 GPM, 1600
4 ..................... 1 .......................60020-50 ....................BLFC, .50 GPM, 1600
4 ..................... 1 .......................60020-100 ..................BLFC, 1.0 GPM, 1600
5 ..................... 1 .......................11982 ..........................O-ring, -016
6 ..................... 1 .......................12626 ..........................Seat, Brine Valve
7 ..................... 1 .......................12552 ..........................Brine Valve Stem, 1600
8 ..................... 1 .......................12748 ..........................Brine Valve Body Assy, 1600 w/Quad Ring
9 ..................... 1 .......................12550 ..........................Quad Ring, -009
10 ................... 1 .......................10249 ..........................Spring, Brine Valve
11 ................... 1 .......................11749 ..........................Guide, Brine Valve Stem
12 ................... 1 .......................10250 ..........................Ring, Retaining
13 ................... 3 .......................10330 ..........................Fitting, Sleeve, 3/8 Celcon
14 ................... 3 .......................10329 ..........................Fitting, Tube, 3/8 Nut, Brass
15 ................... 1 .......................16508-01 ....................Tube, Brine Valve, 2850/1600
....................... 1 .......................12774 ..........................Tube, Brine Valve, 1500
....................... 1 .......................40027 ..........................Tube, Brine Valve, 2510
....................... 1 .......................15221 ..........................Tube, Brine Valve, 2750
....................... 1 .......................42184 ..........................Tube, Brine Valve, 2850s
...................... 1 .......................41683* ........................Tube, Brine Valve, UF, 1600/1650
16 ................... 2 .......................10692 ..........................Screw, Slot Hex Hd, 10 - 24X 18-8 SS
17 ................... 1 .......................11893 ..........................Cap, Injector, SS
18 ................... 1 .......................10229 ..........................Gasket, Injector Cap, 1600
19 ................... 1 .......................10227 ..........................Screen, Injector
20 ................... 1 .......................10913 ..........................Nozzle, Injector
21 ................... 1 .......................10914 ..........................Throat, Injector
22 ................... 1 .......................17776 ..........................Body, Injector, 1600
....................... 1 .......................17776-02* ...................Body, Injector, 1600 Upfl ow
23 ................... 1 .......................16221 ..........................Disperser, Air
24 ................... 1 .......................14805 ..........................Gasket, Injector Body, 1600/1700
*Upfl ow Only
For Service Assembly Numbers, See the Back of this Manual
60029REVC
