Tie strap cable
to bracket at
this location.
559-734-7451 800-367-5480 FAX 559-734-7460

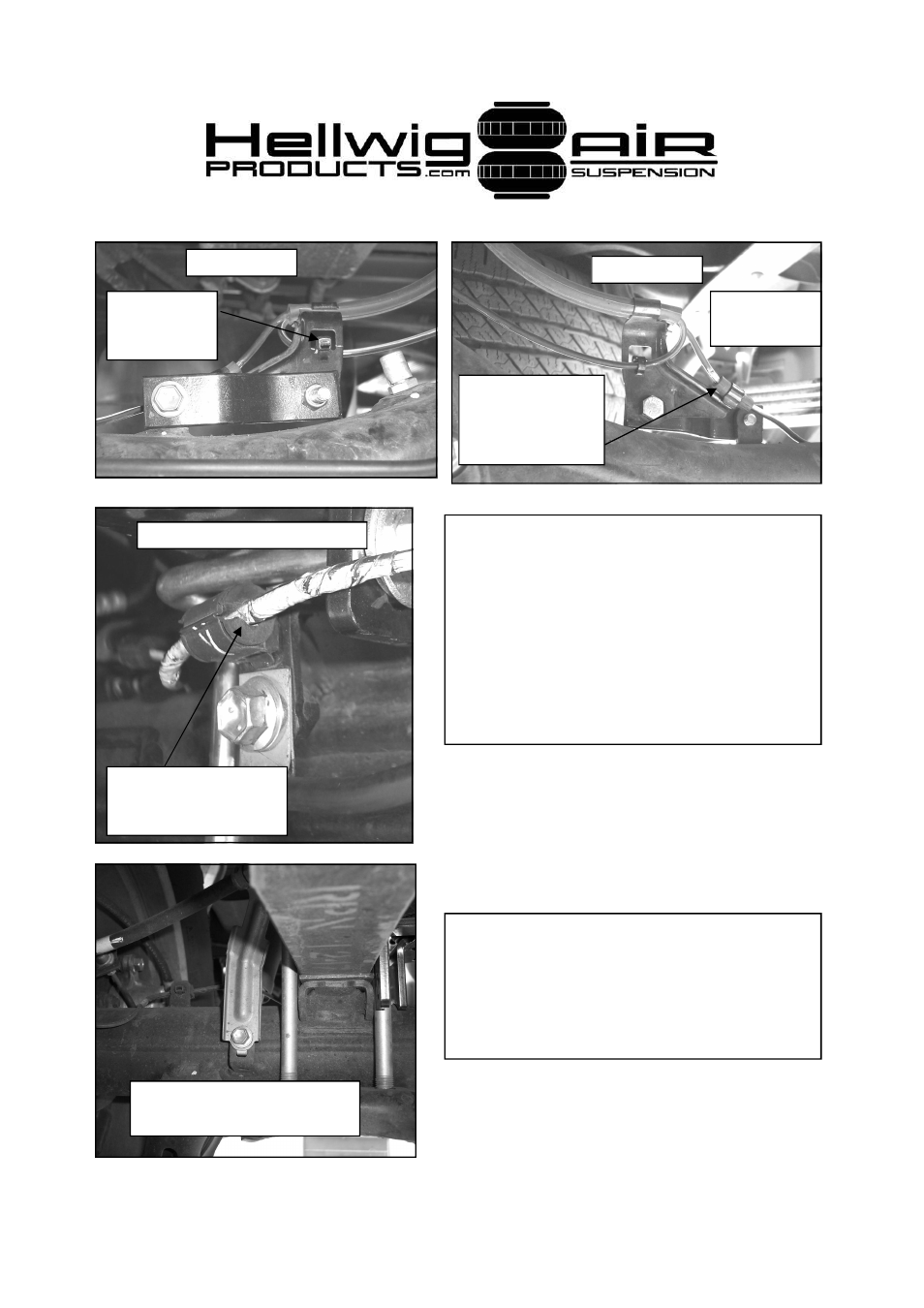

4. Attach ABS cable to axle bracket as
shown in photos. It may be necessary to
gently pull the cable through the rubber
isolators on bracket, at the top of axle,
and under the driver side spring to allow
enough slack in cable to properly attach
cable to bracket. Crimp tie strap cable to
bracket as shown in photos.
Rear View
Front View
Gently pull cable
through isolator to
allow adequate slack
in cable.
Gently pull cable through
isolator to allow adequate
slack in cable.
Crimp cable to
bracket at these
View under driver side spring
Remove bolt attaching emergency
brake bracket.
5. Remove bolt attaching emergency
brake bracket to axle on both the driver
and passenger side to allow installation of
U-bolts at a later step.
