6090 ( R-6090) 03/09/07

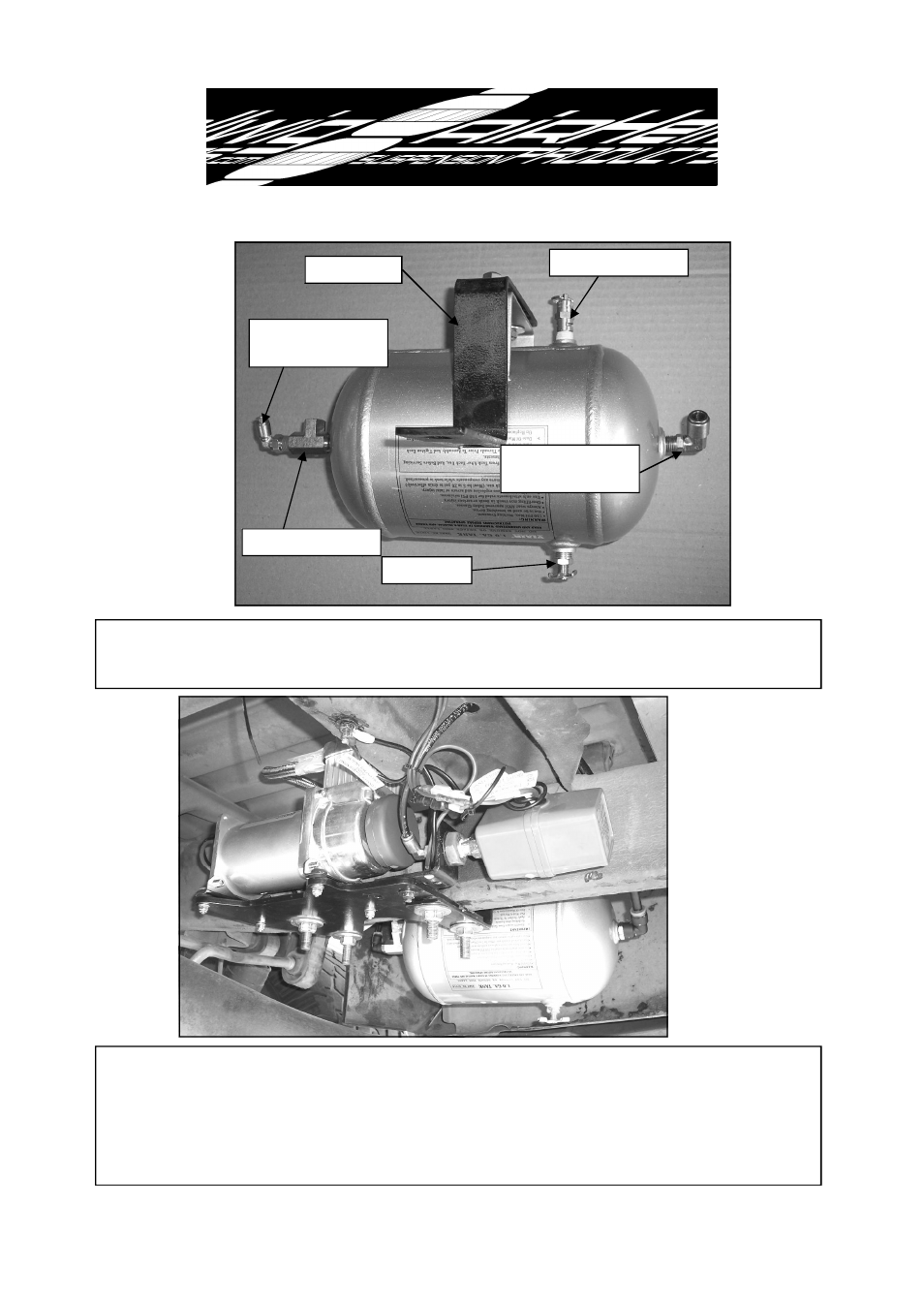

22. Prepare air tank as shown. Apply pipe sealant or Teflon tape to all fittings.
Attach tank to tank bracket with 3/8-16 x 1” bolts, washers and locknuts.
23. Remove spare tire and install U-bolts on passenger side frame rail in location
shown in photo. Attach compressor mounting plate with compressor located on
inboard side of frame rail using U-bolt, 7/16” locknuts and washers. Attach tank
to outboard side of frame rail by attaching tank mounting bracket to U-bolt as
shown.
Blowoff Valve
1/4” Tube X 1/4”
MPT Elbow
1/4” Street Tee
Tank Bracket
Drain Valve
3/8” Tube X 1/4”
MPT Elbow
