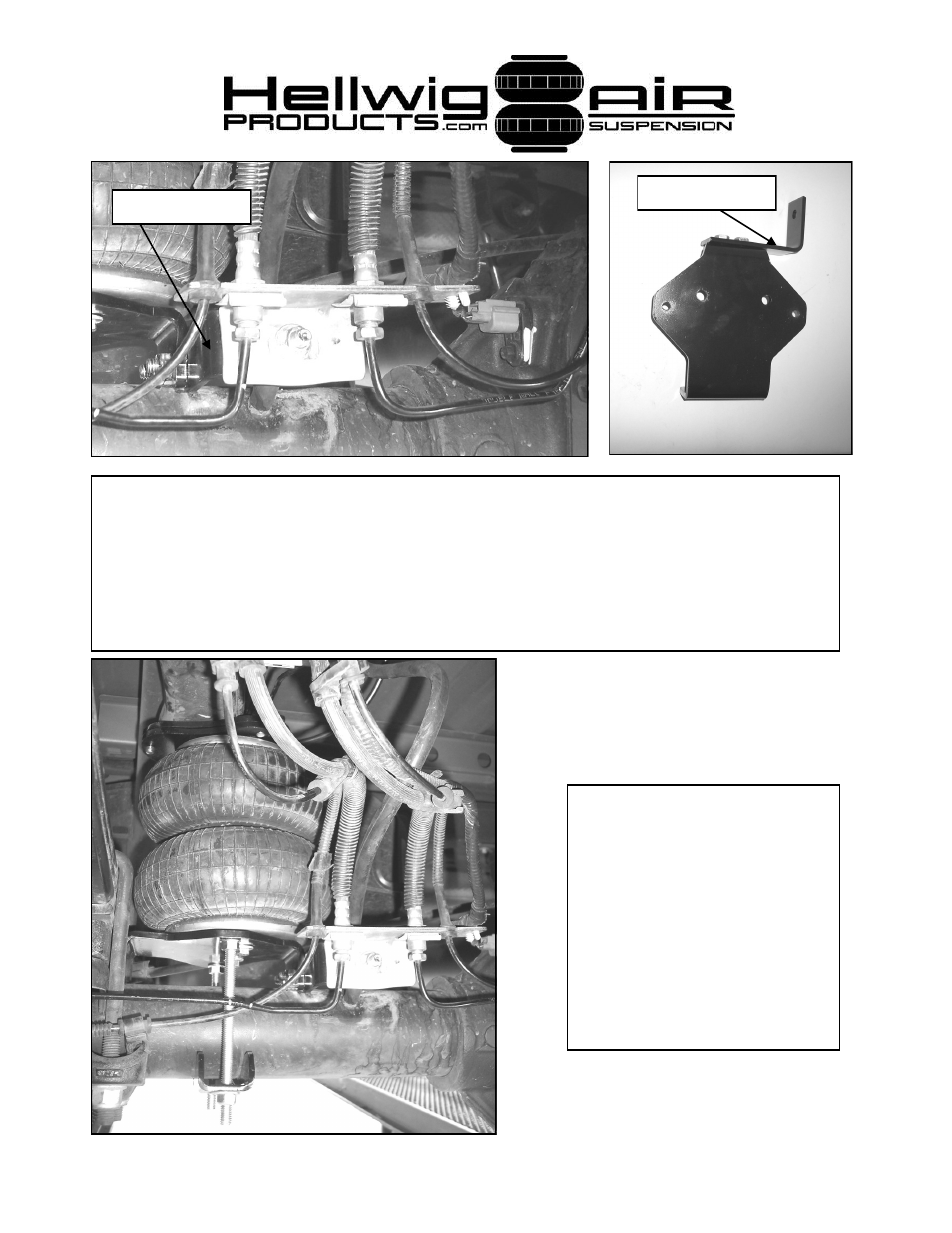

10. Attach brake relocation bracket to driver’s side air spring assembly using 3/8” x
1-1/4” bolts and locknuts. Attach brake hose bracket to relocation bracket as
shown with 3/8” x 1” bolt and locknut. Tighten bolts to 20-25 ft-lb. Reposition
brake lines as required to avoid any contact with shock absorber. Note location of
brake hoses, electrical lines or any other component that may contact air spring as-
sembly and reposition as required.
11. Check your installation
to ensure that all fasteners are
tight and that the assembly
and all fasteners clear brake
and fuel lines, emergency
brake cables, fuel tanks, wir-
ing harnesses, etc. Make sure
that heat shields are posi-
tioned for maximum protec-
tion of air spring.
Relocation Bracket
Relocation Bracket
6110( R-6110)
DO NOT INFLATE AIR SPRINGS OVER 50 PSI
