3. Install fitting in port of air spring. Torque fitting to approximately 20 ft-lb.

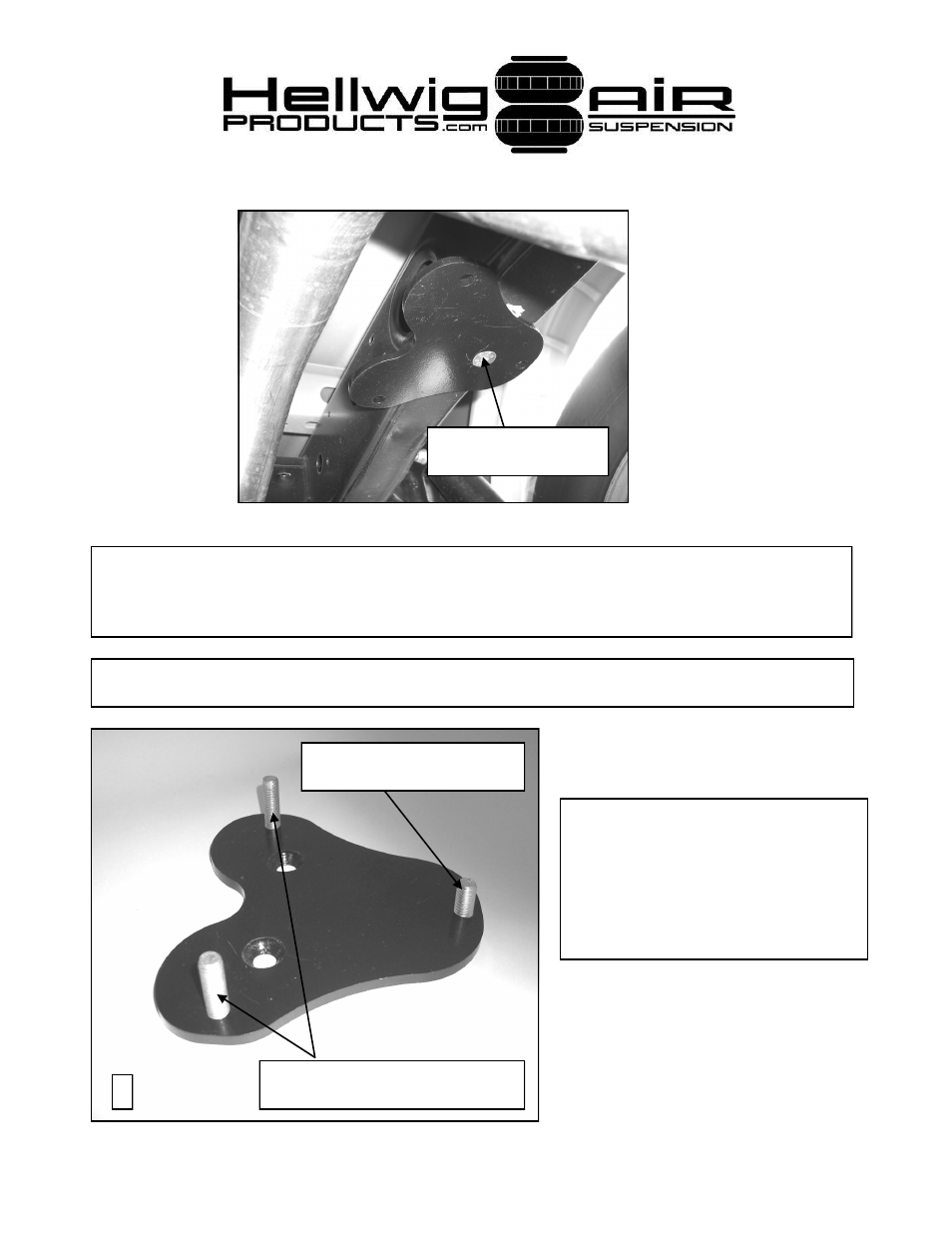

2. Install frame adapter on frame using M10-1.5 flat head cap screw. Align bracket
so that the inboard holes are evenly spaced from the inside wall of the frame rail.
Torque to 25 ft-lb.

559-734-7451 800-367-5480 FAX 559-734-7460

M10-1.5 Flat head cap
screw. Torque to 25 ft-lb

4. Install threaded studs into
frame adapter with countersunk
holes oriented as shown. Apply
loc-tite supplied in kit to threaded
studs before installation.

3/8” X 1-1/2” threaded stud

3/8” X 1” threaded stud

6110( R-6110)

DO NOT INFLATE AIR SPRINGS OVER 50 PSI
