Hellwig Air 6015 User Manual
Page 6
559-734-7451 800-367-5480 FAX 559-734-7460

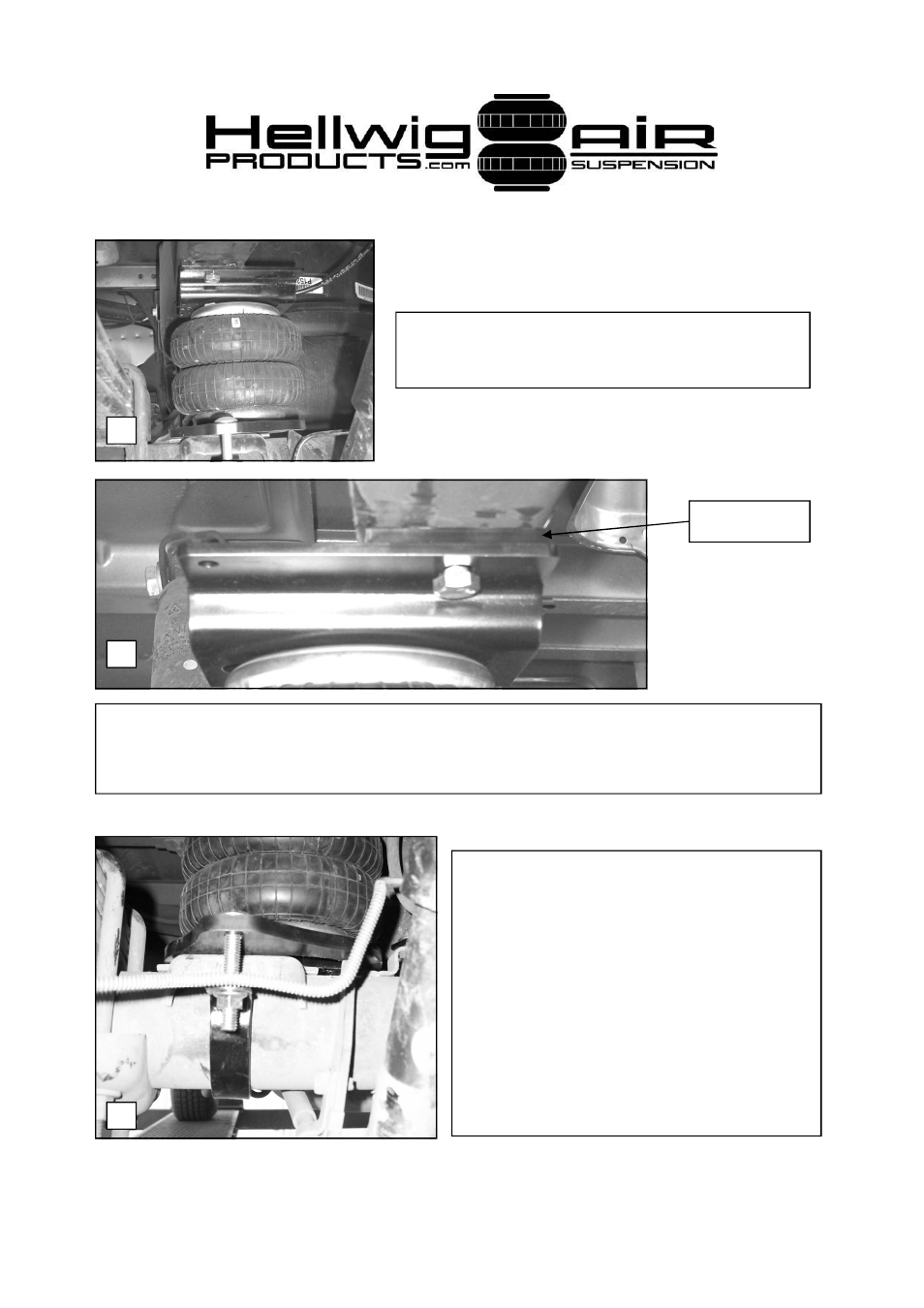

11. Place air spring assembly between frame
rail and axle pad as shown.
12. Insert spacer plate with two slotted holes between frame rail and frame
bracket as shown. Insert 3/8 X 1-1/4 bolts into holes in frame and attach using
flange nuts. Tighten to 25 ft-lb.
13. Insert carriage bolts into square holes
as shown in photo. Attach axle strap us-
ing washers and flange nuts. Tighten
nuts until arms of axle strap flex slightly.
It may be necessary to relocate brake
lines slightly to provide clearance to car-
riage bolt and axle strap. MAKE SURE
AXLE STRAP AND CARRIAGE BOLT
WILL NOT CONTACT BRAKE LINE.
11
12
13
Spacer Plate
6012 ( R-6012 )
12/06/06
