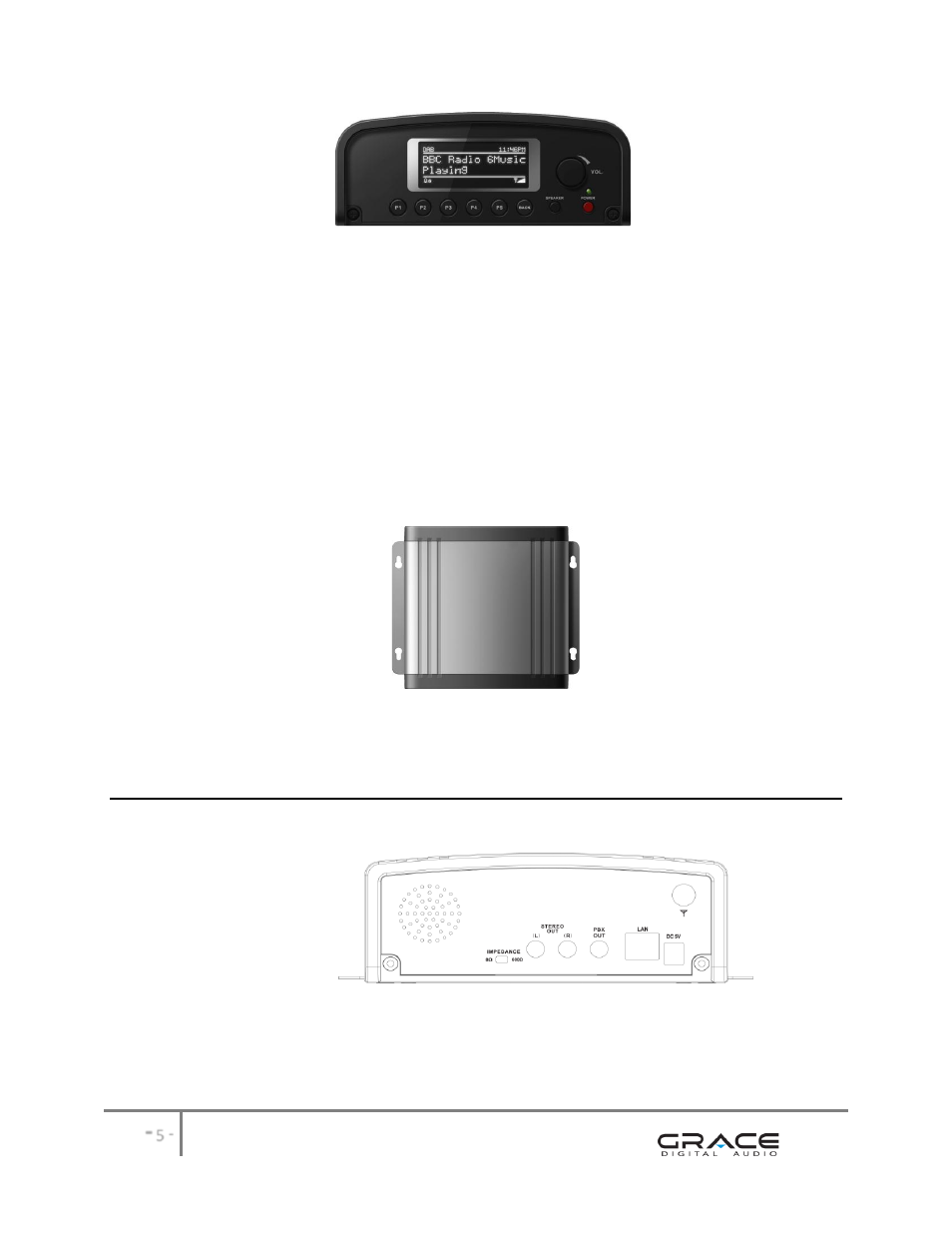

FRONT PANEL VIEW:

Monitor Speaker Button allows the user to turn the Speaker ON/OFF as desired

Volume knob allows the user to increase and decrease the Monitor Speaker volume

5 front panel presets for immediate access to your music selections
o POWER LOSS & AUTO PLAY FUNCTION

Following a power loss, the volume settings are saved and the unit returns to play
mode automatically
o INDUSTRIAL DESIGN, RACK & WALL MOUNTS

Metal enclosure & quality electronics to meet business environment demands

Unit can be installed on a table, rack or wall
TOP PANEL VIEW:

Use the side rack and wall mounts to secure the unit in place on a rack or hang on a
wall, respectively
SET UP & OPERATION
o SET UP CONNECTION to a PHONE (PBX / KEY PHONE SYSTEM) or AUDIO SYSTEM
BACK PANEL VIEW:
STEP 1 Plug the Power Adapter into a wall power outlet
STEP 2 Plug the Power Adapter into the jack marked “DC 5V”
STEP 3 (Phone System) Insert the RCA connector cable to the “PBX OUT“ jack
STEP 3 (Audio System) Insert the RCA connector cable to the “STEREO OUT” (L) (R)
