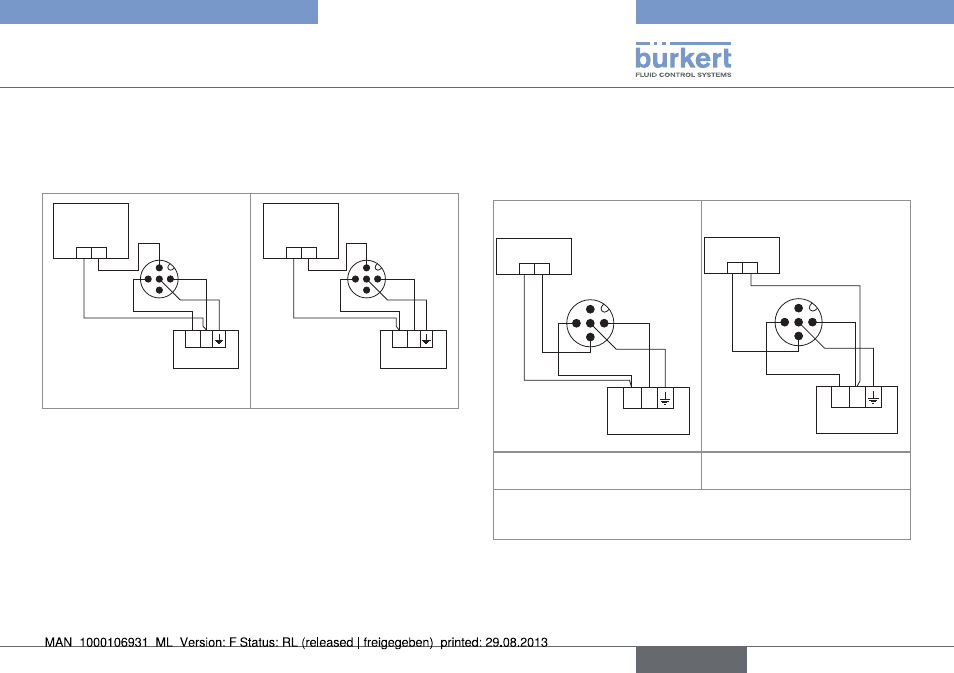

7.3.3. connecting the pulse output
The pulse output is connected in NPN mode (default setting on a
version without current output) or in PNP mode (default setting on a
version with current output).
12-36 VDC
+ -
Load
1
2
3
4
5
brown
white
blue
grey
npn connection
12-36 VDC
+ -
Load
1
2
3
4
5
brown
white
blue
grey
pnp connection
7.3.4. only connecting the current output
The current output, where present, is connected in source mode
(default setting) or in sink mode (on request).
12-36 VDC
+ -
+ -
(*)
4-20 mA
input
1
2
3
4
5
brown
black
blue
grey
Supply
12-36 VDC
+ -
+ -
4-20 mA
input
1
2
3
4
5
brown
black
blue
grey
Supply
(*)
Source mode connection
(default setting)
Sink mode connection
(on request)
(*) If a direct earthing connection is not possible, fit a 100 nF/50 V capaci-
tor between the negative terminal of the power supply and the earth.
