Technicaldata
Type 8071
6.2.3. electrical data
Supply voltage 4,5- 24 V DC
Tansistor output
• Type of output
• Hall sensor max. intensity
• Recommended load
• Frequency on open collector,
NPN, max. 25 mA, 4,5 to
24 V DC
• 25 mA
• 1,8 Kohm Pull up at 24 VDC
Reed switch output
• Type
• Max. switching voltage
• Max. switching current
• Max. operating current
• Number of cycles (typical)
• Frequency
• 30 VDC
• 0,5 A
• 0,5 A
• 500 x 10 6 cycles (at 10 VDC
and 10 mA)
Electrical connection 5-wire cable, 1m long

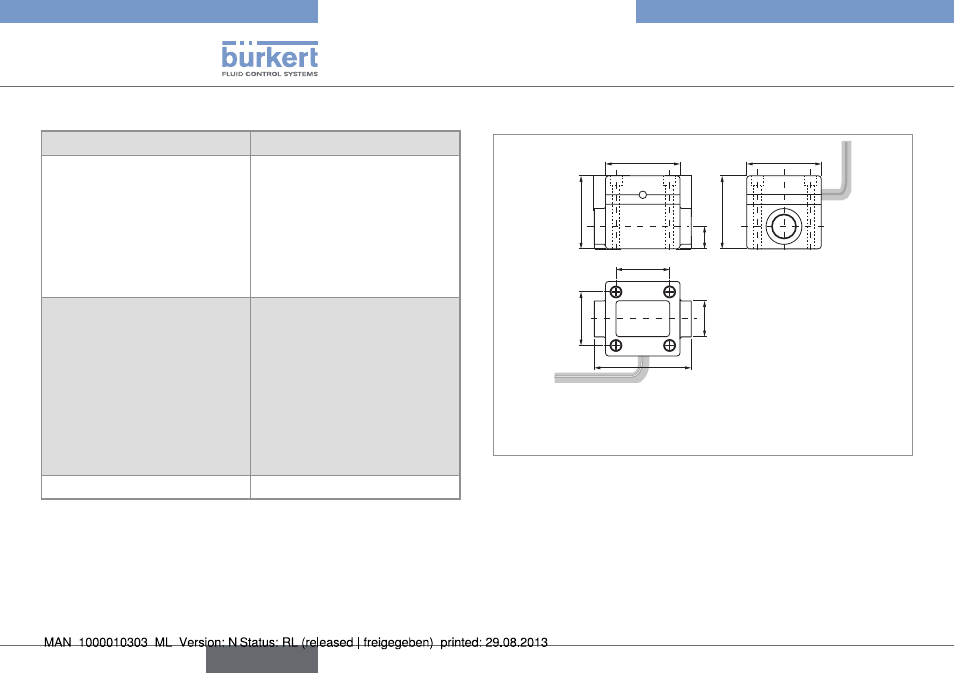

6.3. Dimensions
51/51/60*
36,5
60/50/64*
48 48
A
24
51/51/60*
36,5
cable 1000 mm
* Aluminium / Stainless steel / PPS housing
A: 17...18 mm depending on the housing material
Fig. 3: Dimensions of the device
