1-7
Installation and Operation Manual
X-VA-1110-1140-eng
Part Number: 541B040AAG
September, 2012
Brooks ® 1110 and 1140 Series
Section 1 Introduction

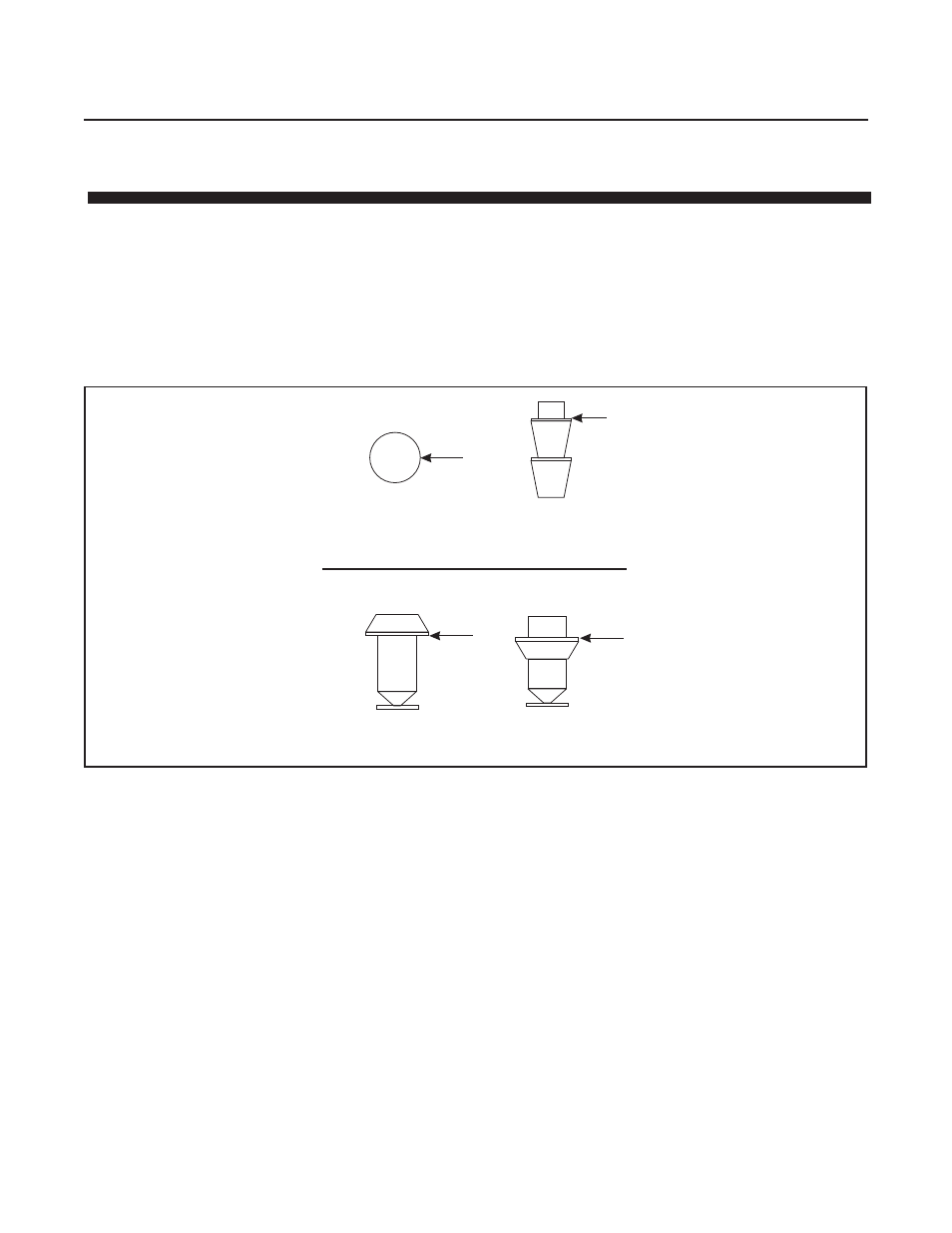

Figure 1-3 Float Types
Spherical - Lowest meter
capacity and no viscous fluids
with medium capacity.
Type RV (rib guided) -
Highest immunity to viscous
fluids with medium meter
capacity. (Most stable)
Type GV (rod guided) -
Analogous in design to a
sharp edge orifice. Gives
most immunity to viscosity
variations of the fluid being
metered.
Type LJ - Maximum flowme-
ter capacity with limited vis-
cosity immunity.
Type RS (rib guided) - High
flow capacity with some
immunity to viscous fluids.
Type GS (rod guided) -
ANalogous in design to a flow
nozzle or venturi. Offers the
maximum flow capacity in any
given size flowmeter.
Type RV
(Rib guided)
Type RS
(Rib guided)
Type LJ Spherical
READ
HERE
READ
HERE
READ
HERE READ
HERE
1-4 Optional Equipment ( Mountings, Valves and Flow Controllers)
• Mountings: Brackets for panel mounting flush or front of panel
• Valves: Available for connection sizes 1/4” through 1” only. Horizontal
stem in outlet or inlet and fitting Sizes 2 through 10.
• Flow Controller: Brass or 316 Stainless steel integrally piped to Sizes
2-6. See Brooks publication DS-FCA.
