3-13
Section 3 Operation
Models MT 3809 and 3819
Installation and Operation Manual
X-VA-MT3809-3819-eng
Part Number: 541B049AHG
September, 2008

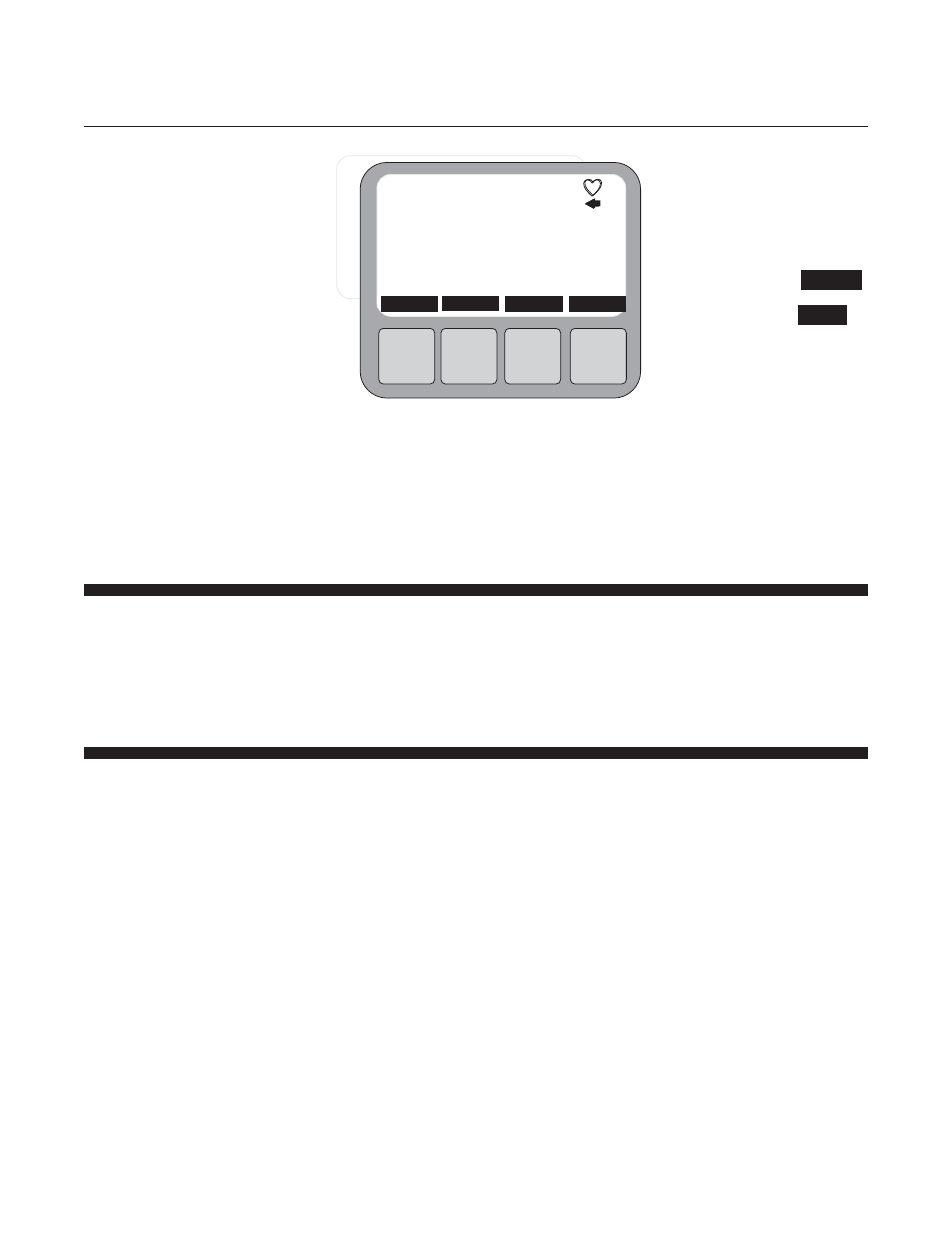

F1 F4 F3 F2
HELP
Brooks MT 38xxVA
Cutoff
00.00 L/min
ESC DEL ENTER
3-4 Operation of the Models MT 3809 and MT 3819 Flowmeters with a Smart Meter Manager Transmitter
with Inductive Alarms ( 1 or 2 Switches)
a. Start-up the meter as described in Section 3-2.
b. Start-up the transmitter as described in Section 3-3.
c. Start-up the inductive alarms as described in Section 3-5.
3-5 Operation of the Models MT 3809 and MT 3819 Flowmeters
with Inductive Alarms ( 1 or 2 Switches)
a. Start-up the meter as described in Section 3-2.
b. To modify the alarm set points, remove the front cover with gasket of
the indicator housing by removing the four screws.
c. Set the alarm position by loosening the two pointer screws, moving
the pointer to the desired alarm setting and tightening the screws.
d. Replace the indicator housing cover with gasket and secure with the
four screws.
Enter the Cutoff value in the
same units specified in the
FlowRate UOM. Press
ENTER
(F4) to enter the new
information and press
SEND
(F2) to send this information to
the transmitter.
