Brooks ® Models BM01 and BM02
Maintenance
4-7 Troubleshooting (See Table 4-1)
The troubleshooting table is presented as an aid in locating and correcting
operational problems in the meter. The user must understand that every
possible problem could not be listed. However, the table will provide
adequate information for general field repairs.

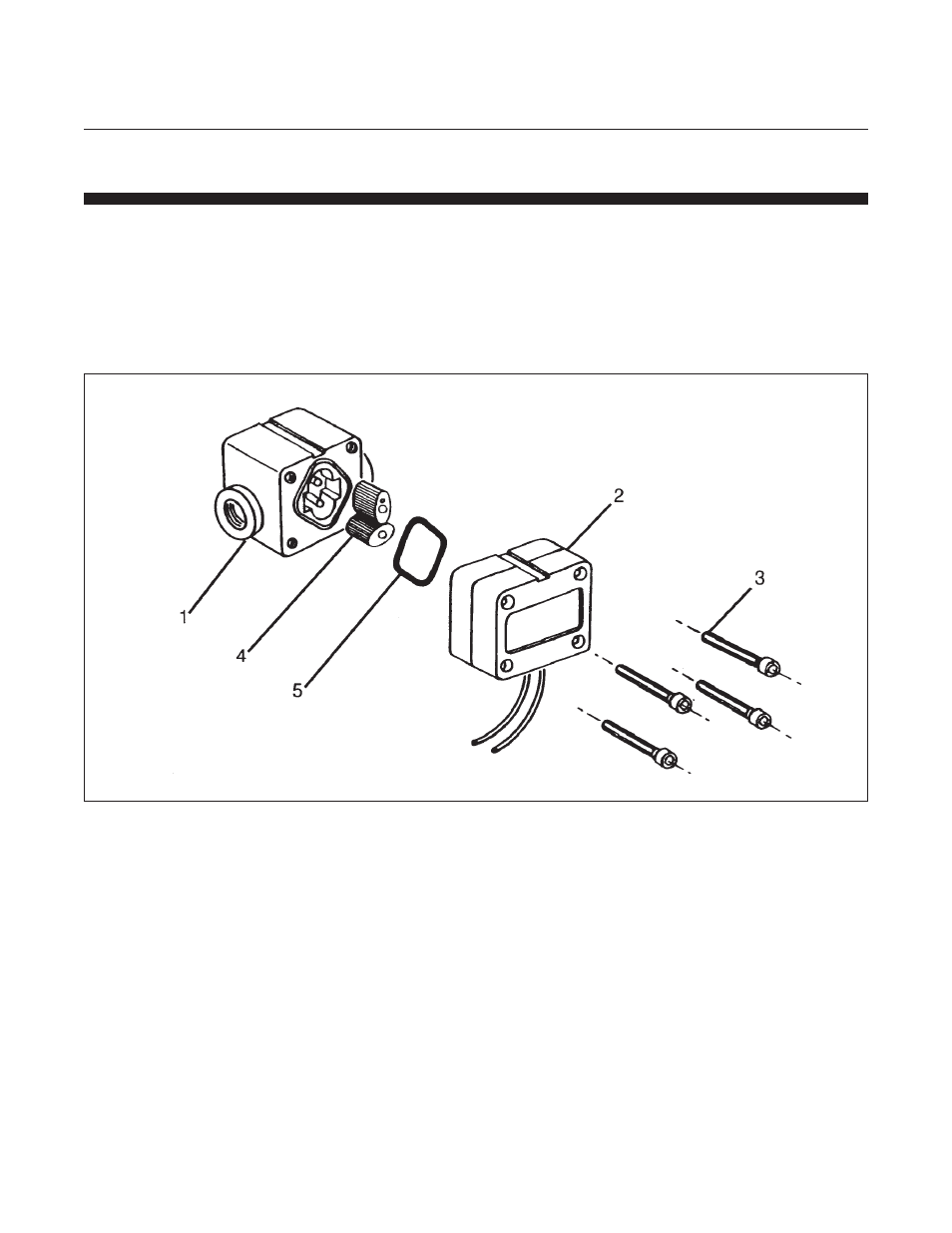

Figure 4-1 Assembly/Disassembly Diagram
