Scan for units
After the appropriate cables are in place we need to identify active units on
the network. This is done by the command “Scan for units” and can be
reached from the Tools-menu or direct with the function button F12. If the
A bus is used every motor has one function controller showing on the dis-
play. If the B-bus is used only the function controller of the connected is
showing. On the other hand the drive controller of this motor is also dis-
played. These node status are displayed regardless of which menu is cho-
sen later on.

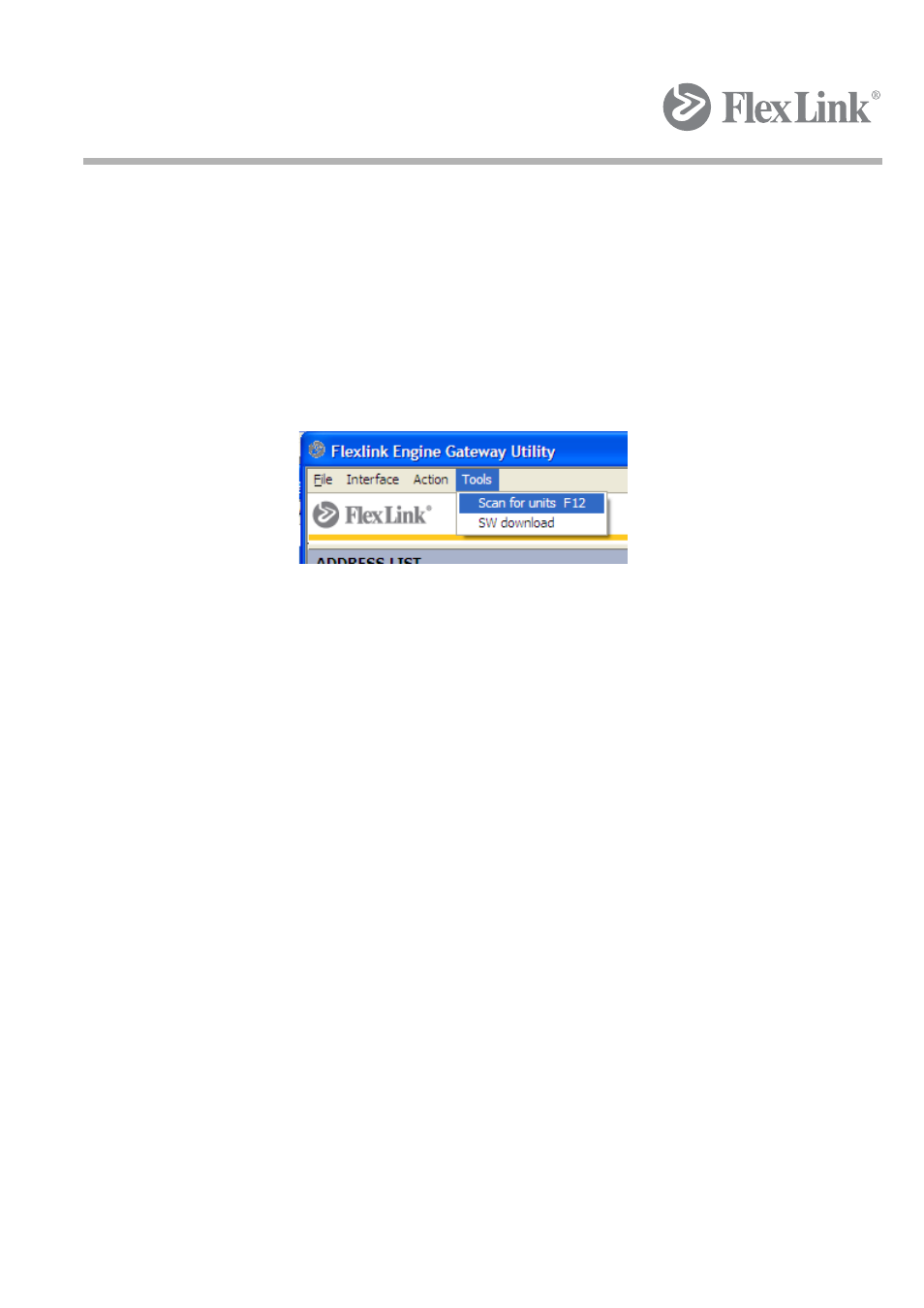

Figure 2 Picture: Scan for units
