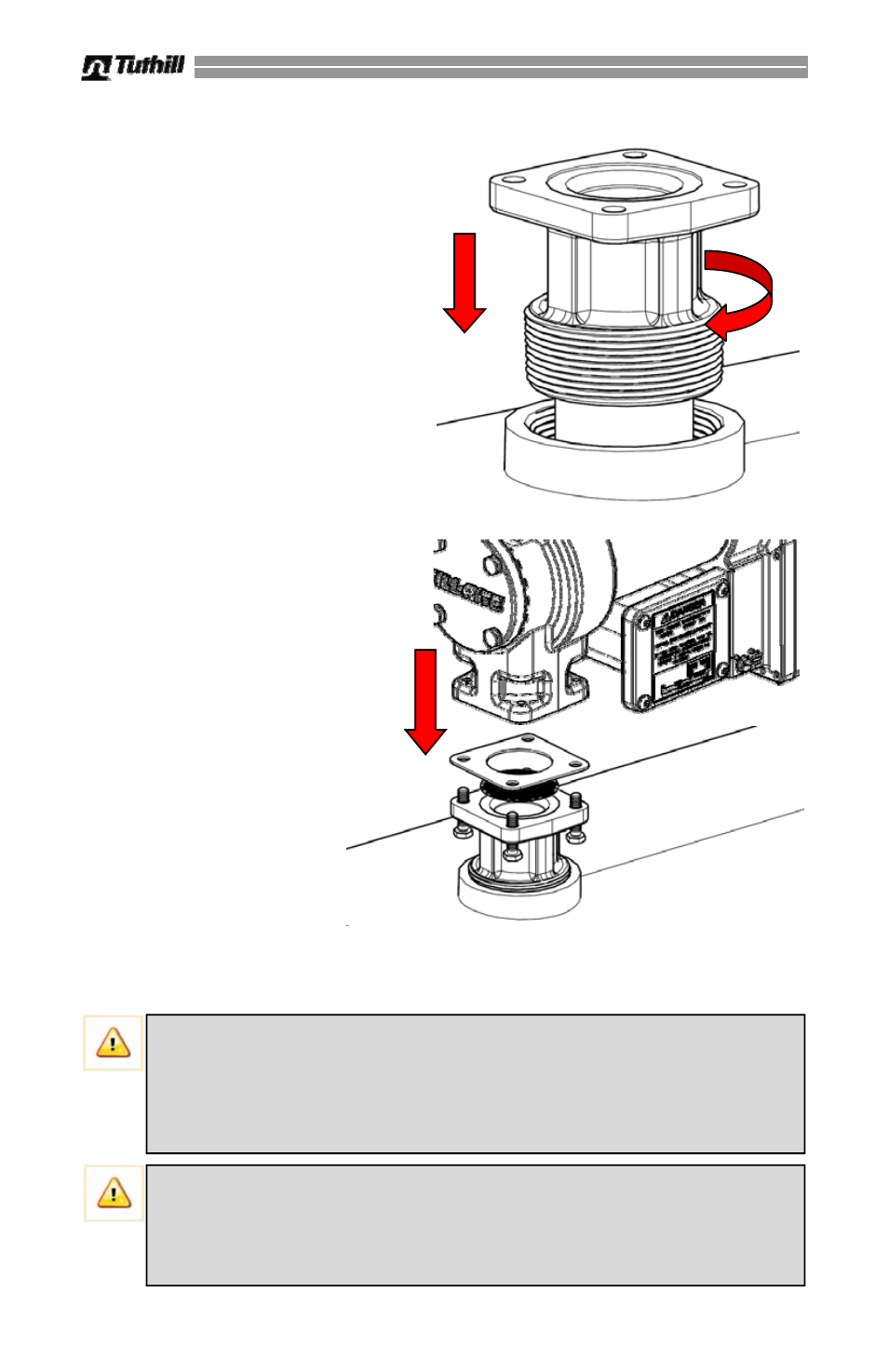

2. Screw the inlet flange (with
suction pipe) into the tank
bung; seal threads liquid tight
with appropriate thread
sealant (Figure 2).
Typical Skid Tank Installation (cont’d)
Figure 2
3.
Mount the pump on the
adapter; making sure
the seal and screen are
installed as shown.
(Figure 3).
Figure 3
CAUTION! DC powered pumps are designed to operate on either 12 or 24 VDC
(depending on model). Where applicable, use the supplied battery cable to
supply power to the pump from a 12 or 24 VDC battery. A 30 amp fuse (20 amp
fuse on 24 VDC motors) should be installed on the battery cable (see wiring
diagram page 9) to protect the wire in case of electrical short.
CAUTION! Voltage drop in wiring varies depending on the distance from the
battery to the pump and the gauge of the wire used. If the distance is greater
than 20’, refer to national, international, or local electrical codes to ensure the
wire is of the correct size for this application.
Electrical Wiring
DC Wiring Procedure
FR1200G / FR2400G / FR4200G / FR4400G / SD1202G Series DC Transfer Pumps
