1. Thread the 1” pipe into the
tank adapter. Seal threads
liquid tight with appropriate
sealant.
(Figure 1)
Materials:

1” telescoping suction pipe extended to a length that will extend to within 3” of the
bottom of the tank when screwed into the tank adapter with the tank adapter
screwed into the tank flange (see SKID TANK INSTALLATION diagram).

Threaded pipe joint sealant appropriate for application.

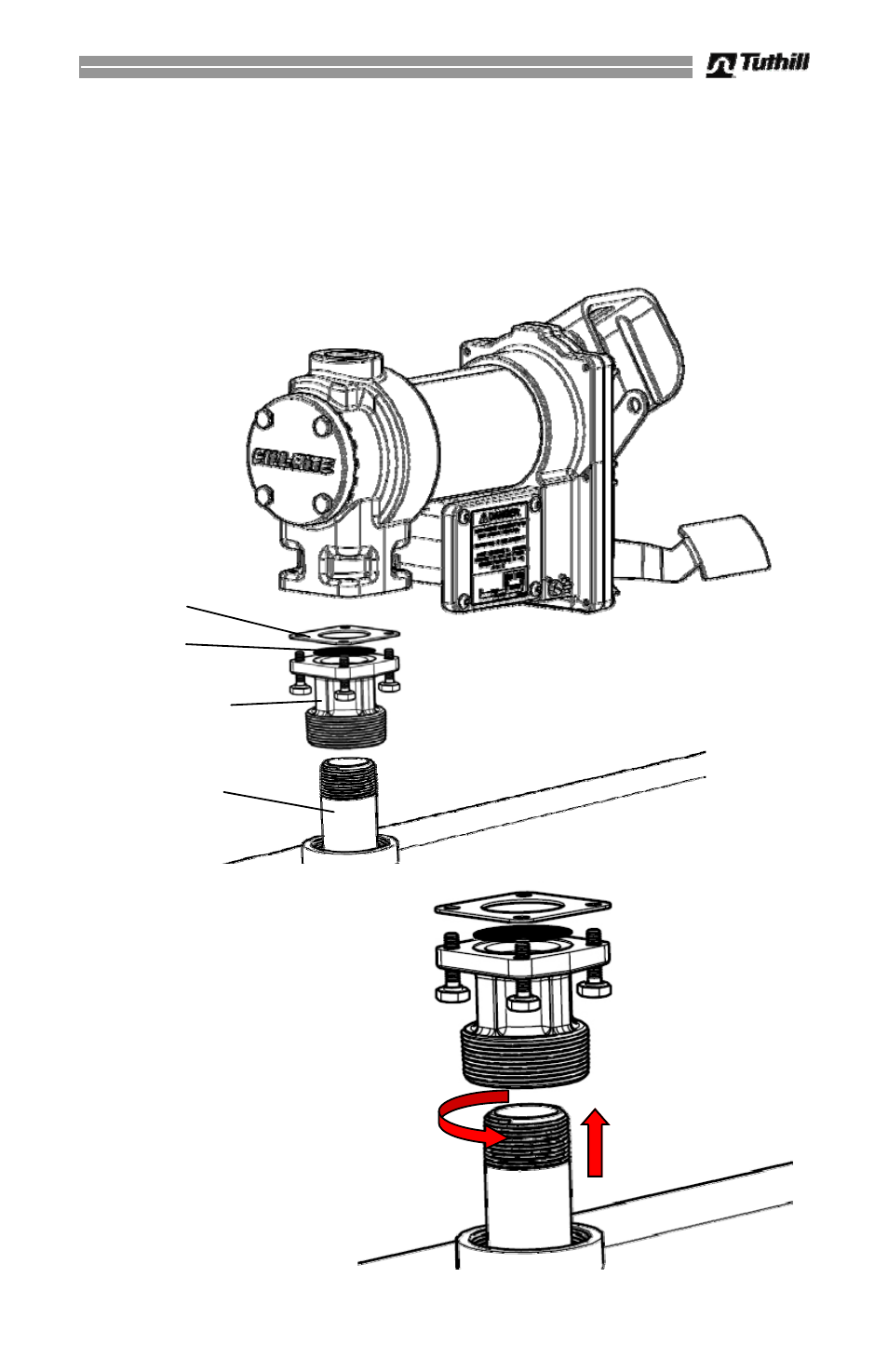

Typical Skid Tank Installation
Figure 1
Installation Assembly View
Installation Procedure:
Gasket
Screen
Tank Adapter
Telescoping
Suction Pipe
