5

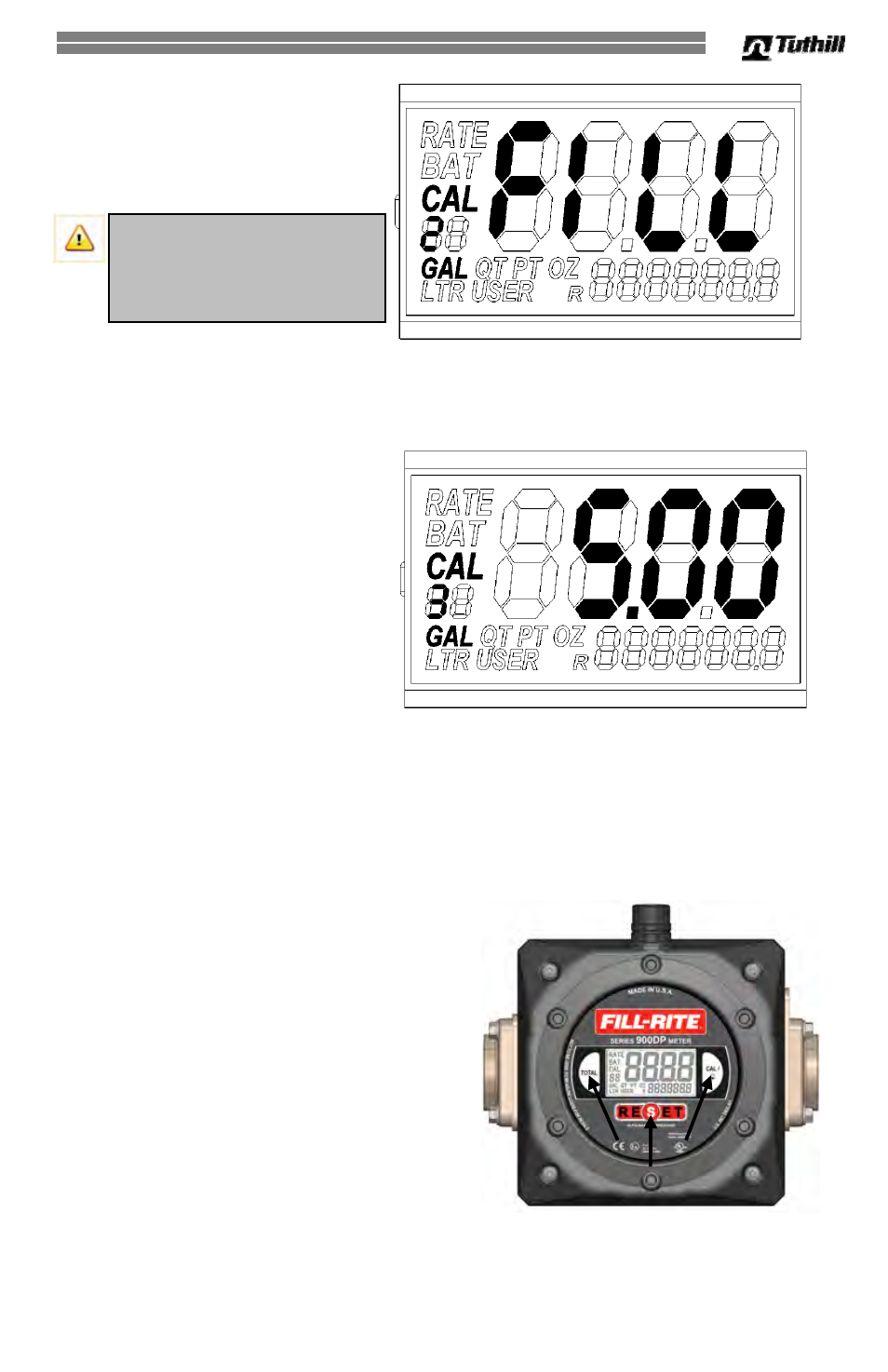

6. Pressing and holding the CAL
button for 2 seconds before
dispensing into a container will
cause the meter to skip a fill
operation and only change the
unit of measure.
7. The unit will default to a
measured value based on the last calibration performed.
8. The left-most digit will begin blinking.
9. Use the TOTAL button to scroll from 0 to 9 until the desired number has been selected.
10. Press and release the CAL button to move to the next digit.
11. Repeat Steps 3-4 until the amount
of dispensed fluid has been
entered.
12. If you make a mistake entering a
digit, press and release the
TOTAL button repeatedly until the
digit is active again.
13. Press and hold the CAL button for
2 seconds to complete the
calibration process regardless of
the current digit selected.
14. If at the last digit and the CAL
button is pressed for less than 2
seconds, the process should roll
back to the left-most digit, but retain the current value. This allows the user to edit an
incorrect value.
15. An error check for gross calibration errors (+/- 15%) will be performed unless USER units
are selected. If an error is detected, the meter will display Err0 until a button is pressed
and the calibration process is aborted.
16. If the meter is left untouched for 2 minutes or the RESET button is pressed, the unit will
automatically exit Calibration Mode and ignore any changes.
Operating Instructions
For accurate measurement and to prevent meter
damage, dispenser and piping must always be filled
with liquid and be free of air. The meter portion of
your dispenser should be calibrated per instructions
in this manual prior to its use.
The Fill-Rite 900 Series Digital Meter face
incorporates three buttons that control all the
operation and calibration functions.
To turn the display on, or wake the meter from
“Sleep” mode, simply press any button on the face.
The display will turn on and you can proceed with
the function you desire. Dispensing fluid will also
turn the meter display on.
IMPORTANT! For maximum
accuracy, try to get as close as
possible to the dispensed
volume without changing flow
rate.
