EXP Computer Portable Slim CD_DVD_CDRW Drive User Manual

Page 7

Part Names & Functions

The front and rear panels of your CD/CDRW/DVD drive may look slightly
different from the figures below. However, The important parts and
functions are the same regardless of their locations.

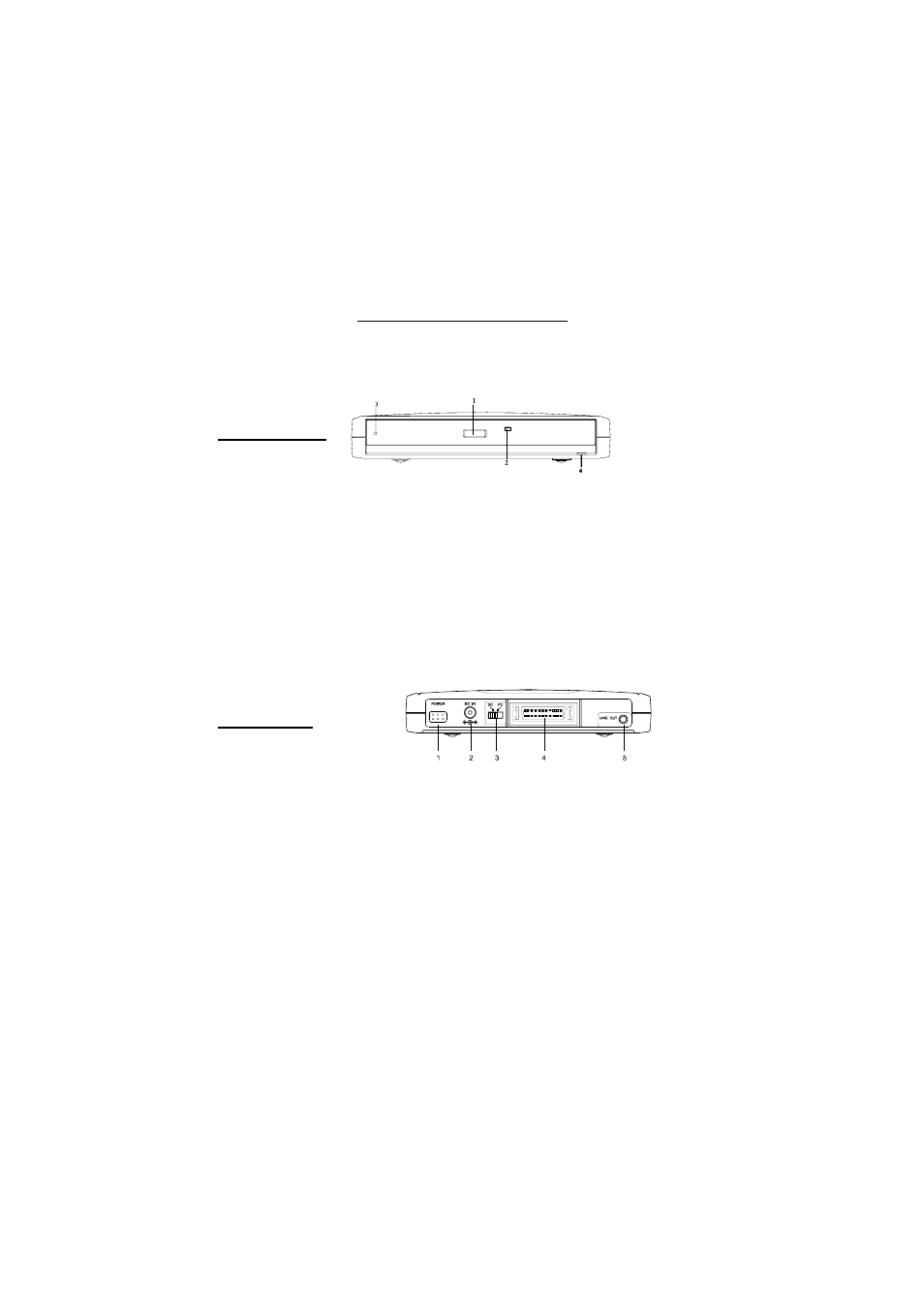

FRONT PANEL

1. Eject button:

Press this button to eject the tray.
2. Access LED:

This LED will blink when the drive is accessing the disc.
3. Emergency Hole:

Insert a pin shaped item to manually eject the tray when the drive is
powered off.

4. Power LED:
This LED will light when power is on.

REAR PANEL

1. Power Button:

Press the button to manually power on/off the drive when it is powered

by an AC adapter.

2. DC in Jack:

This jack connects to the AC adapter.

3. Power Source Switch:

This switch is used to select the power source. When the switch is set to

“PC”, then USB or PCMCIA power direct is selected. When it is set to
“DC”, an AC adapter is required to power the CD/DVD-ROM.

4. Interface Connector:

Connect the SLIM drive to the USB, PCMCIA, Firewire or Parallel

interface.
