EXP Computer CD-420, CD-421, CD-621, CD-821 With CD-ROM+ Card User Manual
Page 5

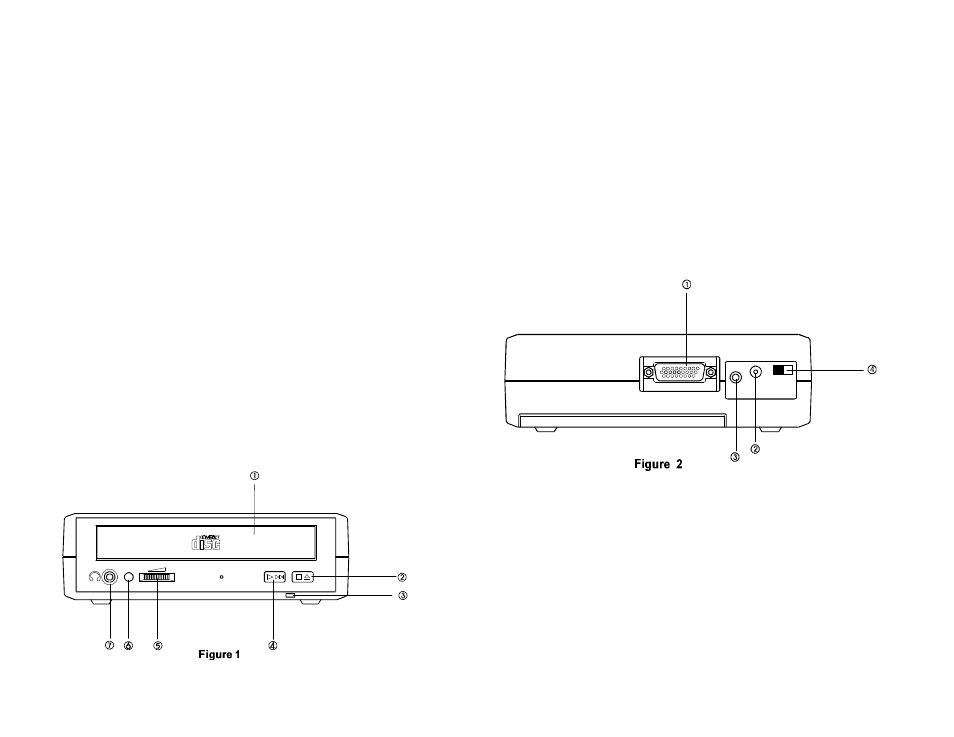

PART NAMES AND FUNCTIONS
FRONT PANEL OF THE CD-ROM DRIVE
•
•
Disc Tray:
This disc tray is used to insert the compact disc.
‚
‚
Load/Stop button:
•
Press this button to load the disc tray.
•
When playing an Audio CD, pressing this button will put it into the stop
state.
ƒ
ƒ
Power Indicator:
•
This indicator will light with a green LED when the power is on.
•
This LED will blink when battery power is low.
„
„
Play/Skip: (for CD Audio operation only)
•
If the drive is in the stop state, pressing this button will activate the
drive to start playing.
•
If the drive is in play state, pressing this button will skip to the next
track.
…
…
Headphone Volume Control Knob:
This rotary knob is used to adjust the volume of the headphone jack.
†
†
Power On/Busy LED:
This LED will light with a green LED when power is on.
This LED will blink when the drive is accessing the disc.
‡
‡
Headphone Jack:
3.5mm audio headphone jack.
REAR PANEL OF THE CD-ROM DRIVE
•
•
Interface Connector:
This interface connector connects to the PCMCIA interface card.
‚
‚
DC in Jack:
This jack connects to the AC adapter.
ƒ
ƒ
Line out Jack:
This jack outputs audio signal to an amplifier.
„
„
DC Source Switch
This switch select DC power source for the CD-ROM drive.
There are two sources to choose from PC Direct or AC/Battery. Always
keep the setting at AC/Battery, unless you are using CD-420 which you
have the option to draw the power from PC Card slot.
