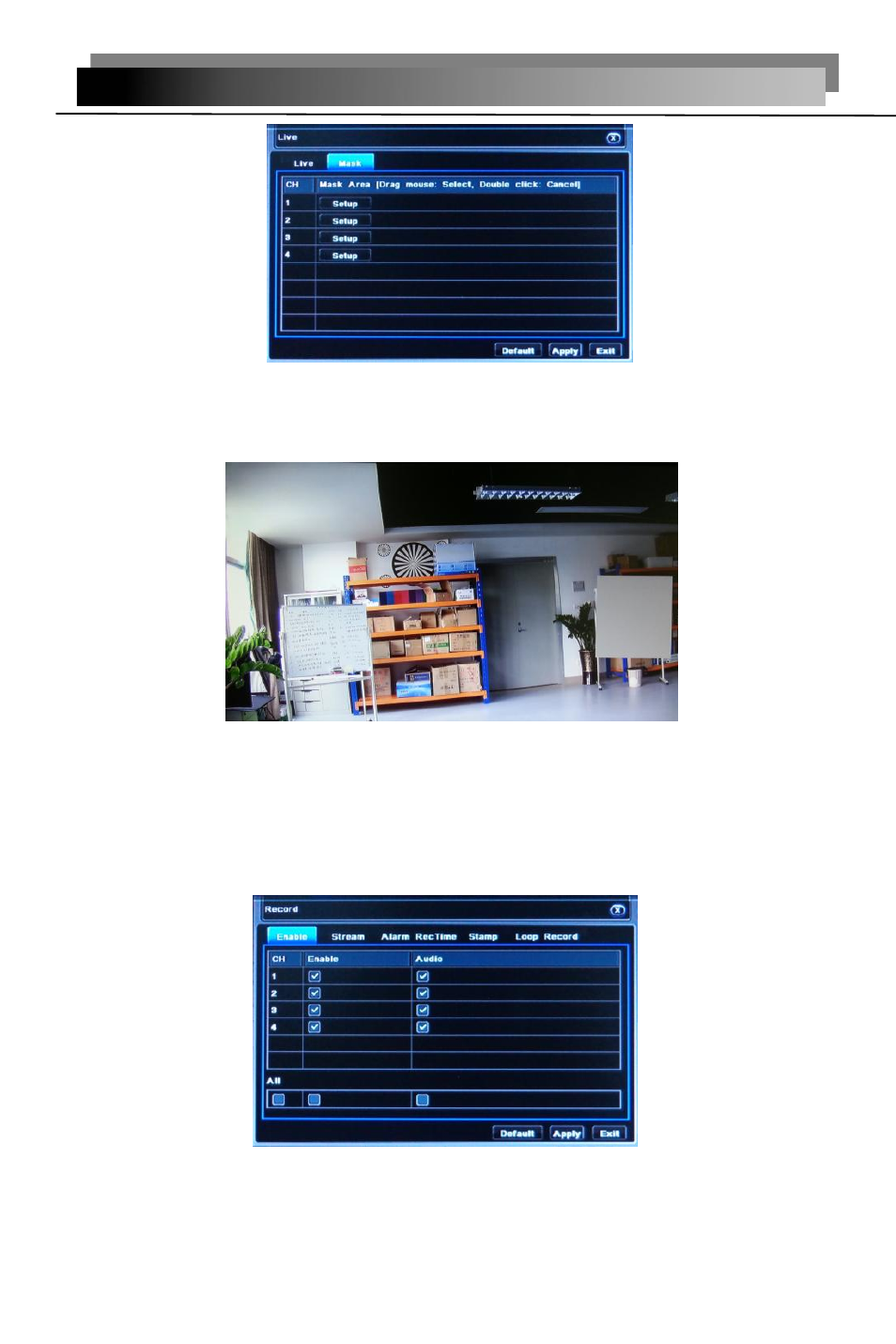

Pic 2-10 Mask
Setup mask area:
click Setting button, enter into live image to press left mouse and
drag mouse to set mask area, refer to below picture. Click Apply button to save the setting.；
Delete mask area:
select a certain mask area, click left mouse to delete that mask
area, click Apply button to save the setting.
Live image mask area
2.4.3 Record configuration
Click“Record configuration”，enter window as pic2-11：
Record configuration includes four sub menus: start, record bit rate, Character overlay.
recycle record.
2.4.3.1 Start
Pic 2-11 Start
