eLine Technology SIP_NVMS - Manual (Page 26)

Network Video Manager System
-25-
Note: IPv6 addresses do not need to set the subnet mask.

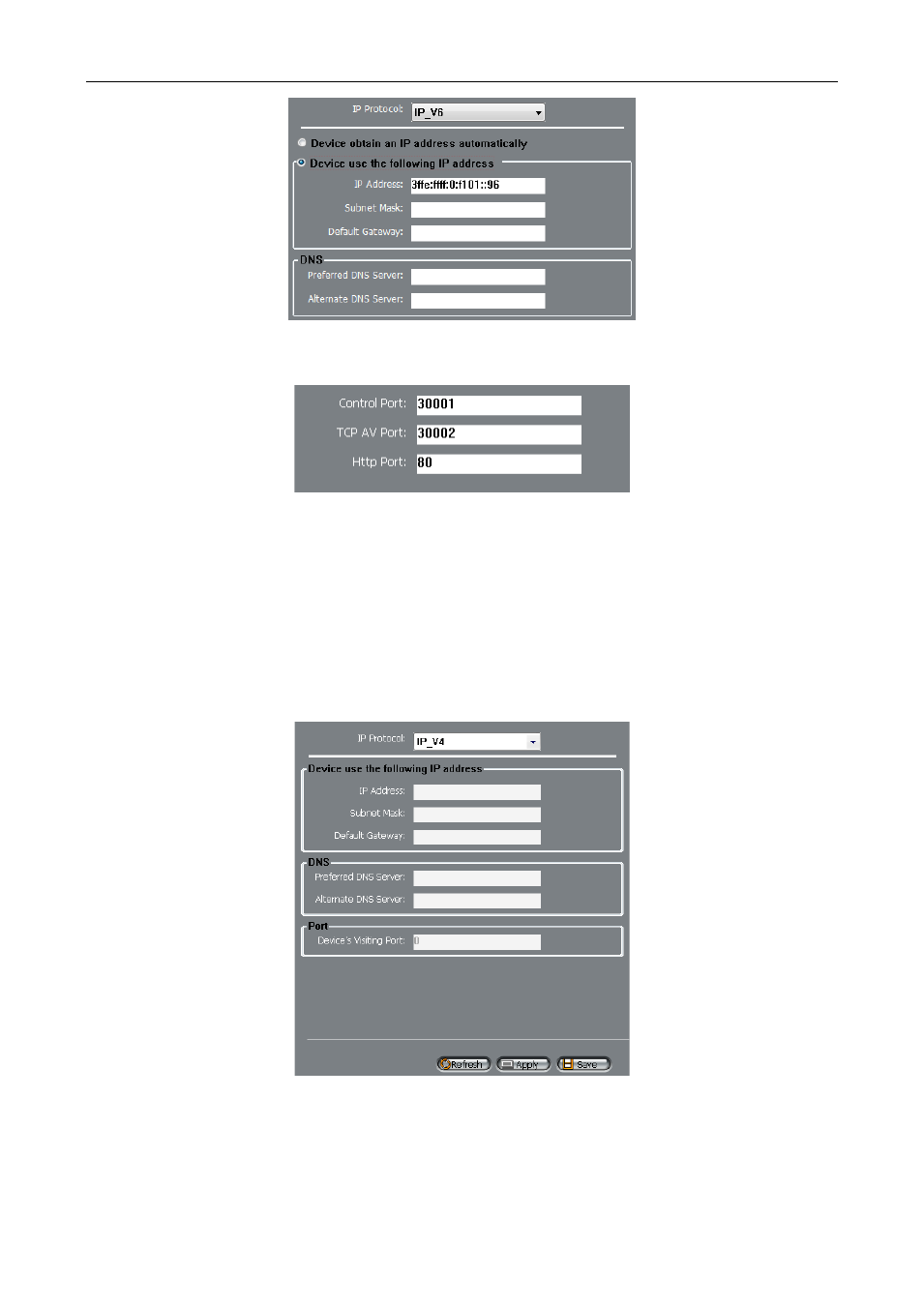

2. Device Port
Control port: The default is 30001, including the parameters of reading and writing, PTZ control and so on through this port
to control;
TCP audio and video port: The default is 30002, for the TCP protocol under the audio and video transmission which needs
of the port number.
Http Port: Default is 80, for Web access to use the port number. If you change it to another port number, you need in the
address bar at the end add ": port number". For example, the equipment which IP is 192.168.10.96 and the Http port is
changed to “8080”, you could enter the http://192.168.10.96:8080 in the IE browser's address bar to access the network
device through the Web.
3. ADSL network parameters
When the user set "Network Service"“PPPoE parameters”, after the success of dial-up equipment, Equipment’s WAN
network IP address will appear in the page.
