P: PAL
4 Baud rate choose: 1200BPS/2400BPS/4800BPS/9600BPS
PROTOCOL you can choose PELCO-D or PELCO-P
3-2 ADDRESS: 1-255
Address setup: 1-255
3-3 BAUDRATE: 1200BPS/2400BPS/4800BPS/9600BPS
Change RS485 PROTOCOL Setup：
IRIS-OPEN MAIN MENU
Press IRIS-OPEN Key to Enter MAIN MENU
3-1 PROTOCOL: PELCO-D/P
03X: ZOOM Software Version
09: Software Version
The setup status of PTZ
DVR or controller 485 set the same as PTZ, then you can PTZ control.
3.PROTOCOL SETUP
RS485 PROTOCOL Setup

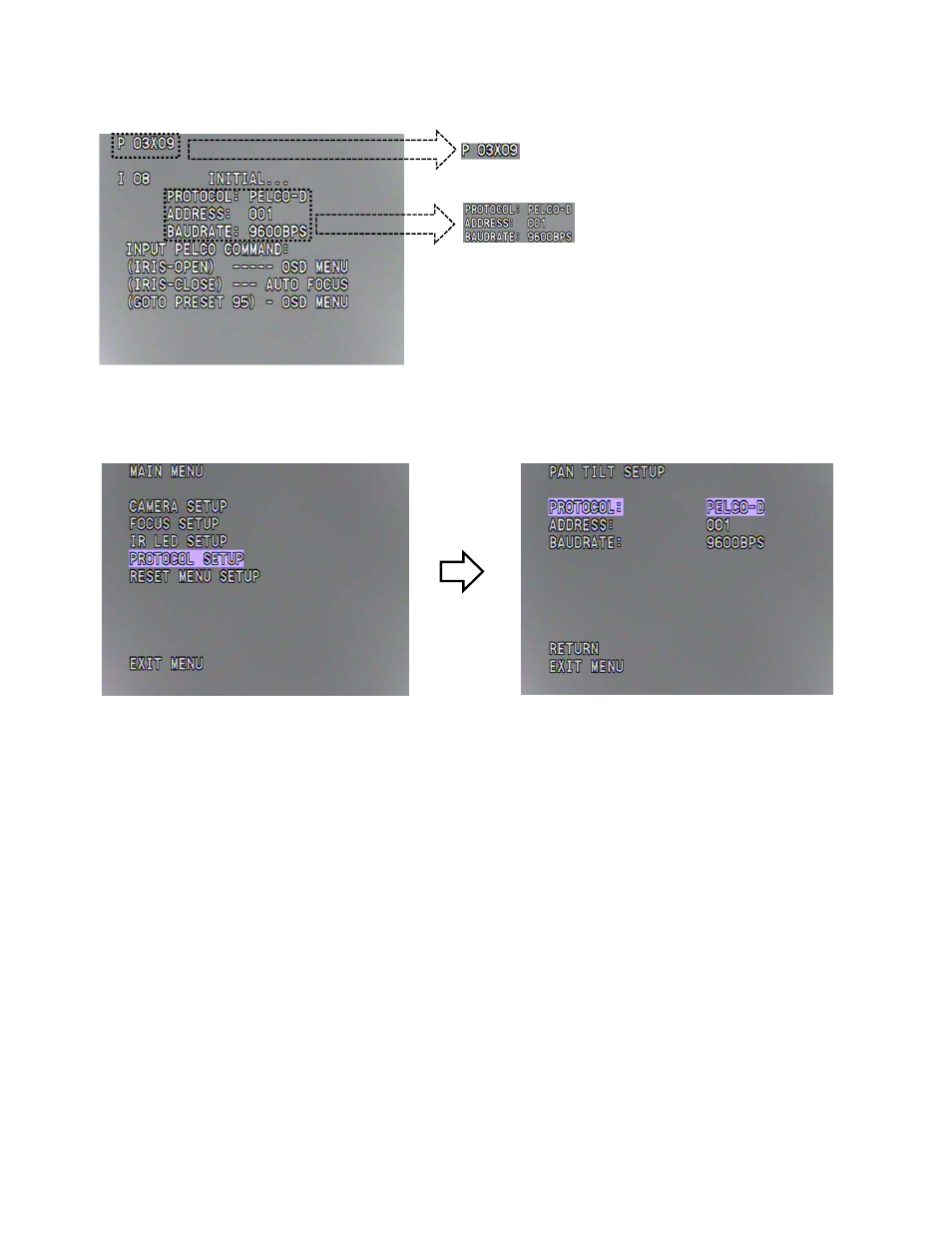

After turn PTZ OSD will display 485 baud rate, address, protocol, and other information, as shown below:
